Twisted Flexible RVS PVC Insulated Electrical Wires

Twisted Flexible RVS Electrical Wires and Cables

MAIN KEYWORDS

RVS, flexible twisted cable, twisted flexible wire, H03V-S, H05V-S, PVC insulated stranded flexible wire.

APPLICATION SELLING-POINT

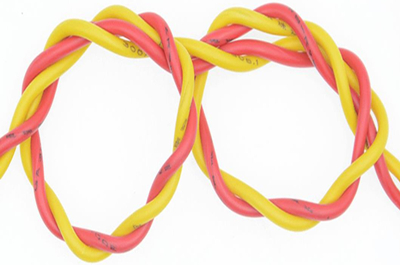

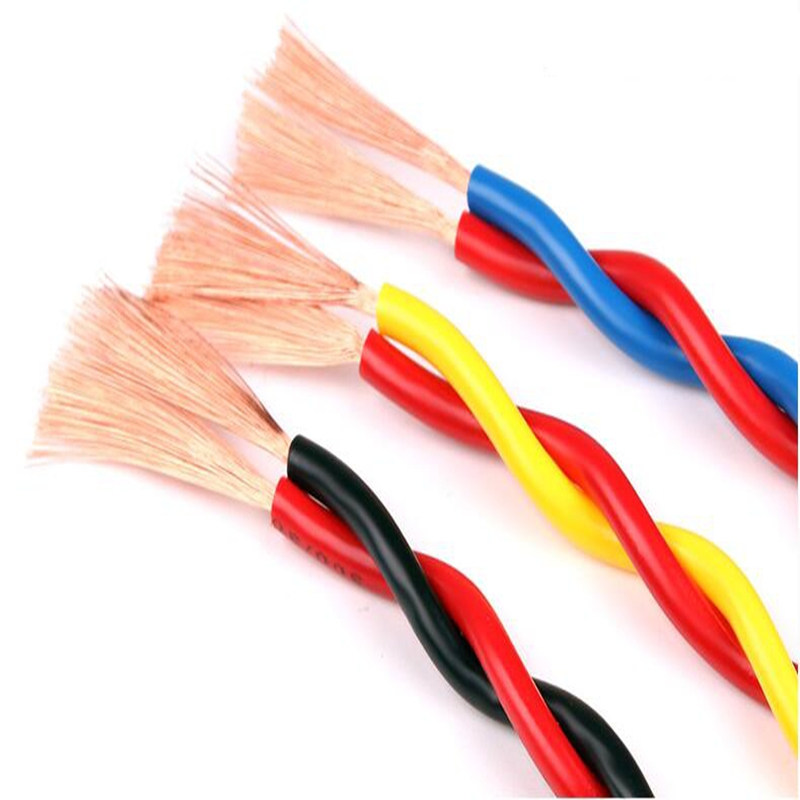

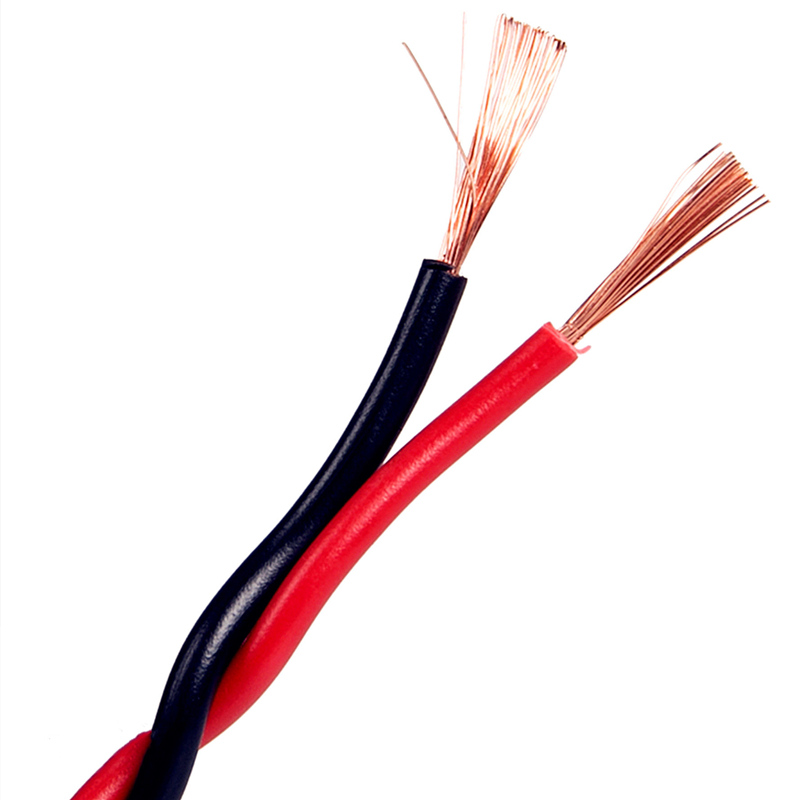

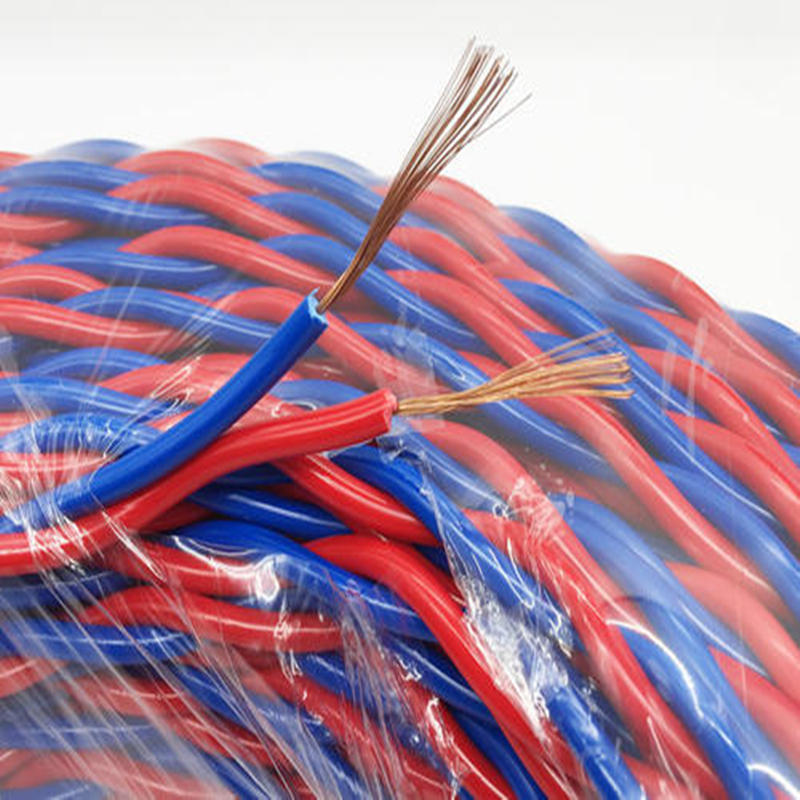

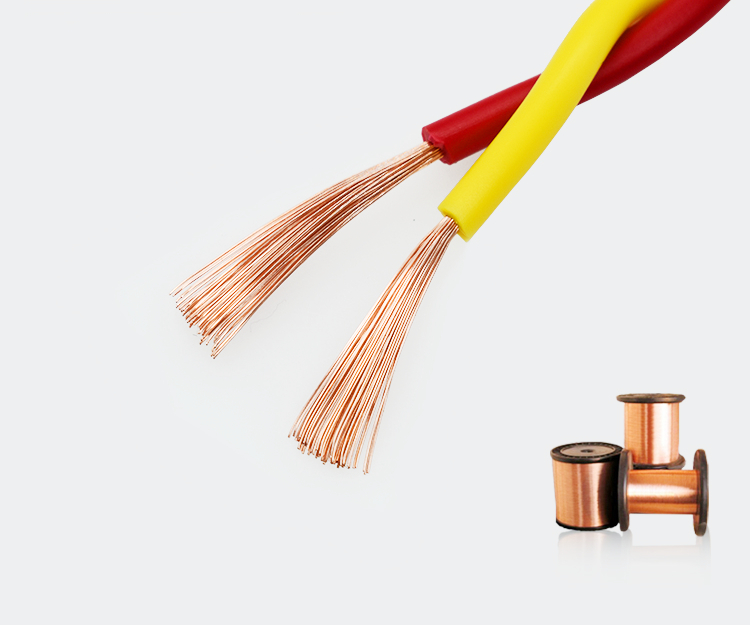

Flexible twisted RVS cable, the cable is suitable to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric equipment, instrument, electronic equipment, automatic device, etc. Flexible twisted RVS cable is simply understood that the 2 pieces RVS cable has been twisted together. It very flexible for easy bending, high temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or RoHS compliant can be available as per the customer requirement.

PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed copper wire, strand class 5, flexible.

---Insulation Material

   PVC (Polyvinyl chloride).

---Insulation Colour

   Red & black, red & yellow, red & blue, red & green, or others.

---Sheath Material

   Non-Sheath

---Core Number

   2 cores, 2C.

---Voltage Rate (U₀/U)

   300/300V

---Working Temperature

   -15℃～+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T8734, GB/T5023, IEC60227.

---Products Delivery

   Within 3-5 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for accurate data, please refer to the actual products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The above all information is only for you reference, please refer to the actual goods.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the Flexible Twisted RVS cable, according to the practice, the common specification is 0.75～2.5mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
