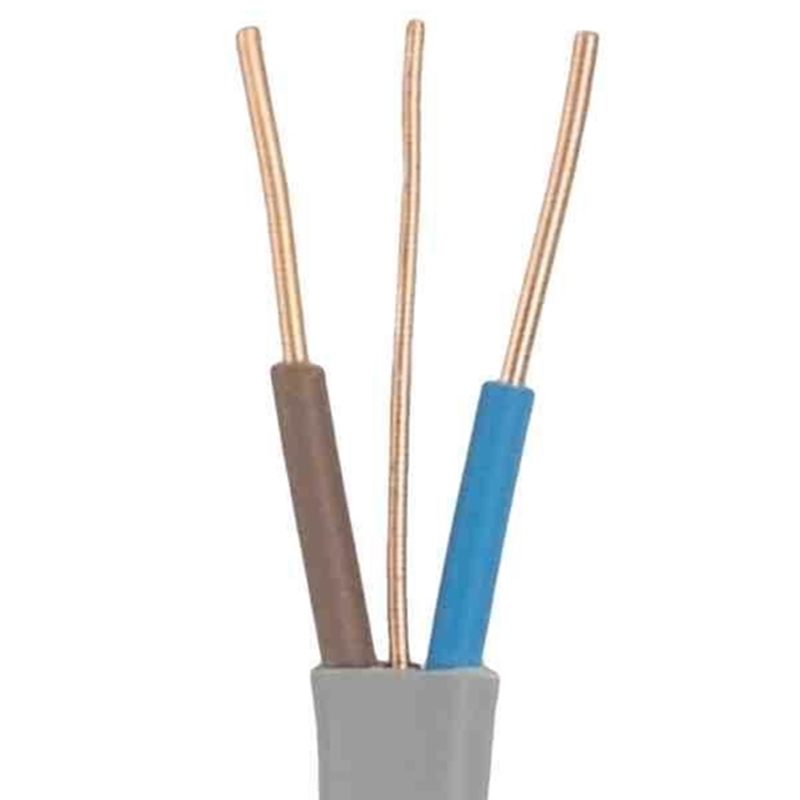

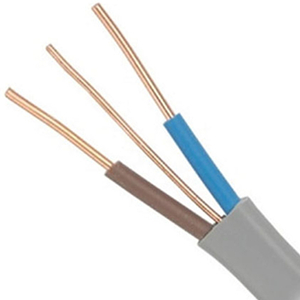

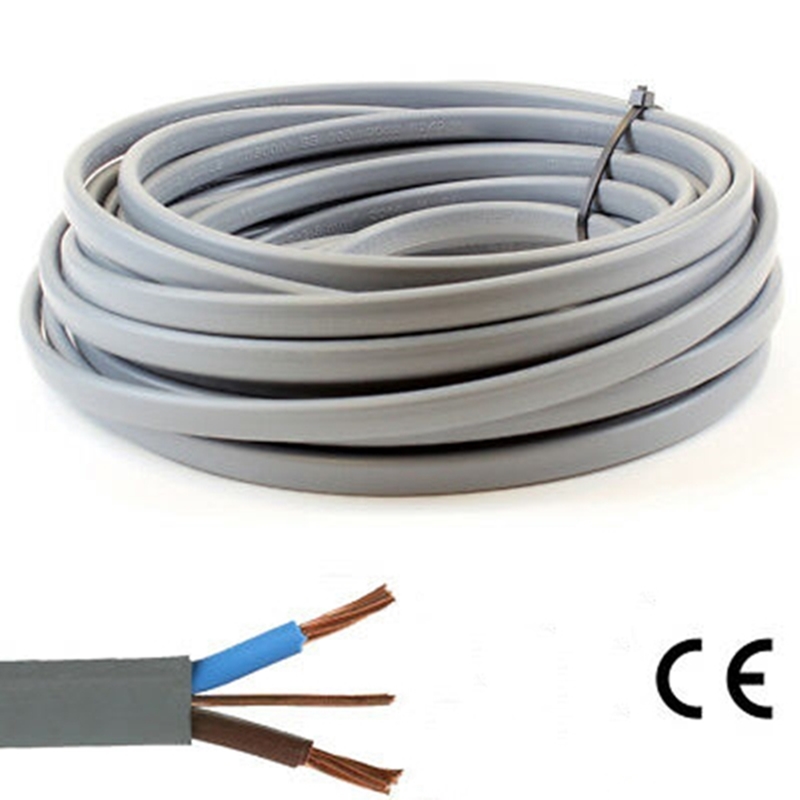

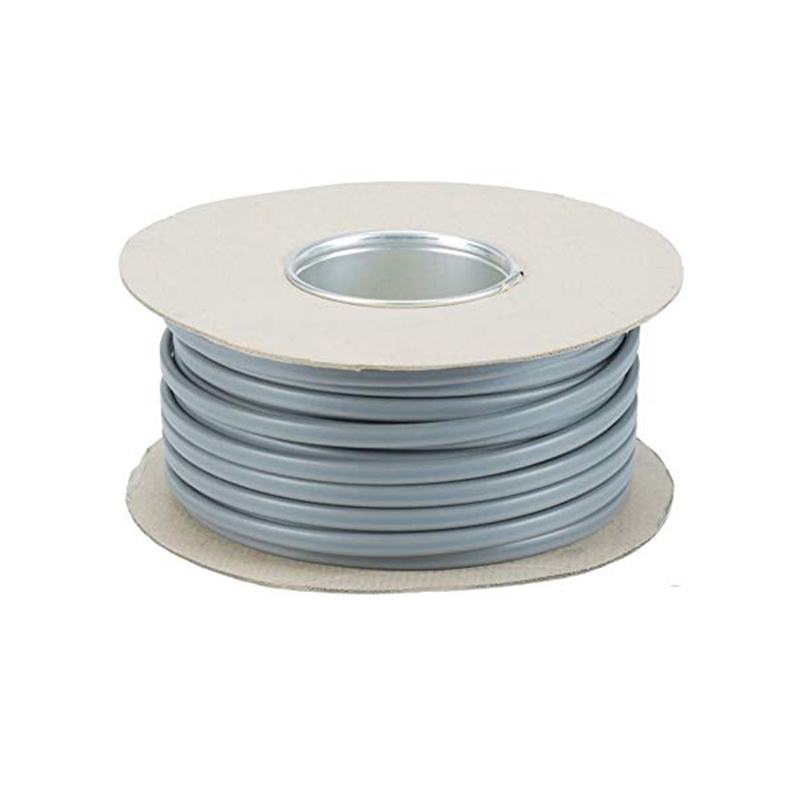

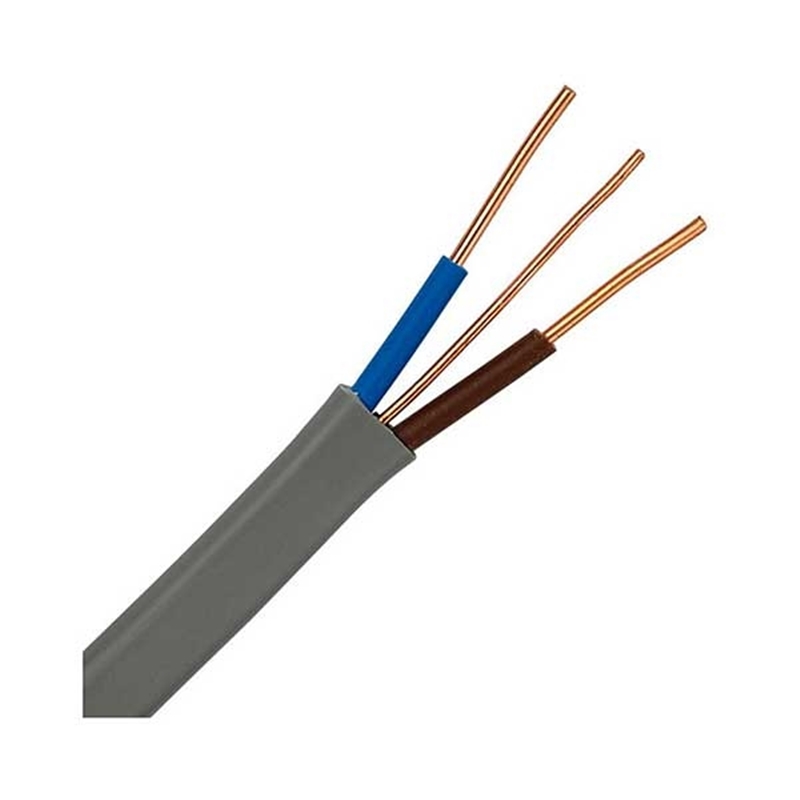

BS6004 6242Y Flat Twin and Earth BVVB Electrical Wire and Cable, copper wire, PVC insulation, bare earth (if available), PVC sheath. It is used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.
Brand:
ElectricaltechItem NO.:
XTD-BVVB-03Order(MOQ):
5000 meters.Payment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.52Price:
$0.4/0.48 per meterProduct Origin:
Hubei Province, China.Color:
White black grey or as per customer request.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 5-7 working days as soon as we reWeight：
140 KG/KMBS6004 6242Y Flat Twin and Earth BVVB Electrical Wire and Cable
MAIN KEYWORDS
BVVB, BLVVB, 6242Y, 6241Y, 6243Y, 6242B, flat twin and earth cable.
APPLICATION CHARACTERISTICS
BVVB flat twin and earth cable is domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue. Suitable for laying in conduit or trunk where mechanical protection is required. 6242Y is flat PVC sheathed low voltage wiring cable typically used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper, solid class 1 (0.75～4 mm2), or strand class 2 (6～16 mm2).
---Insulation Material
PVC (Polyvinyl chloride).
---Insulation Colour
2C: brown, blue.
---Earth Material
Bare copper wire (if available), class 1 solid or class 2 strand.
---Sheath Material
PVC (Polyvinyl chloride).
---Sheath Colour
Grey, or others.
---Core Number
2C, 2 cores (flat twin cable); 3C, 3 cores (flat twin and earth cable).
---Voltage Rate (U0/U)
300/500V
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed: 6 x Out Diameter.
---Production Standard
BS 6004
---Products Delivery
Within 7-10 working days as soon as we received the deposit.
REMARK
---The above information is for reference only, the formall data, please refer to the actual product.
---The cable maybe has the inner sheath, and the material of inner sheath is PVC.
---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.
---For the 6242Y flat twin BVVB cable (earth wire is optional), according to the practice, the common specification is 1.0～6 mm2.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
