Brand:
ElectricaltechItem NO.:
XTD--BVR-01Order(MOQ):
3000 meterPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.2Price:
$0.16/0.18Product Origin:
Hubei, China.Color:
Red yellow blue green black yellow/green orShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 3-5 working days since we receiveWeight：

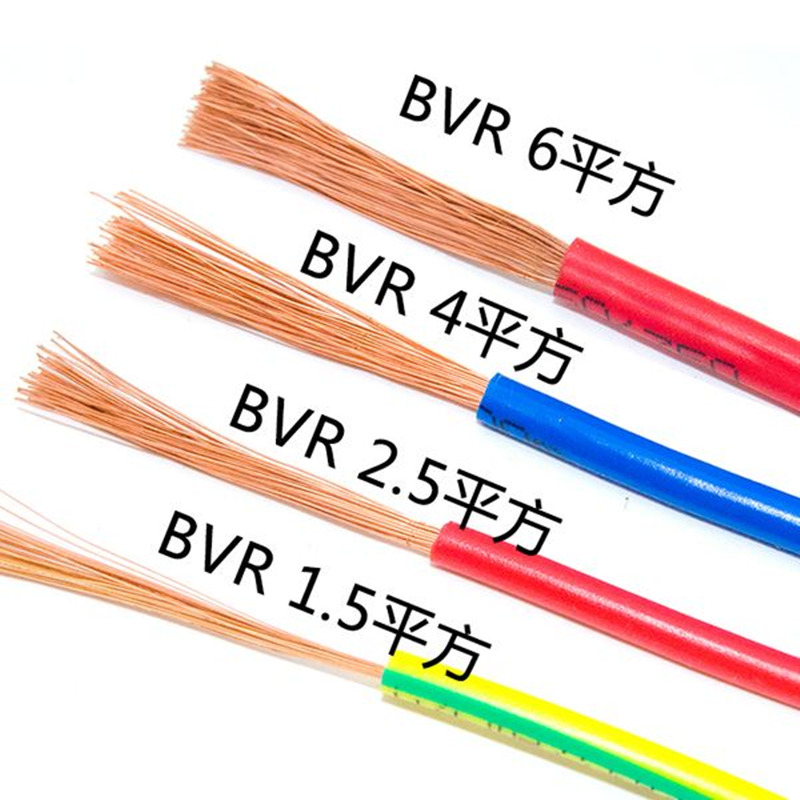

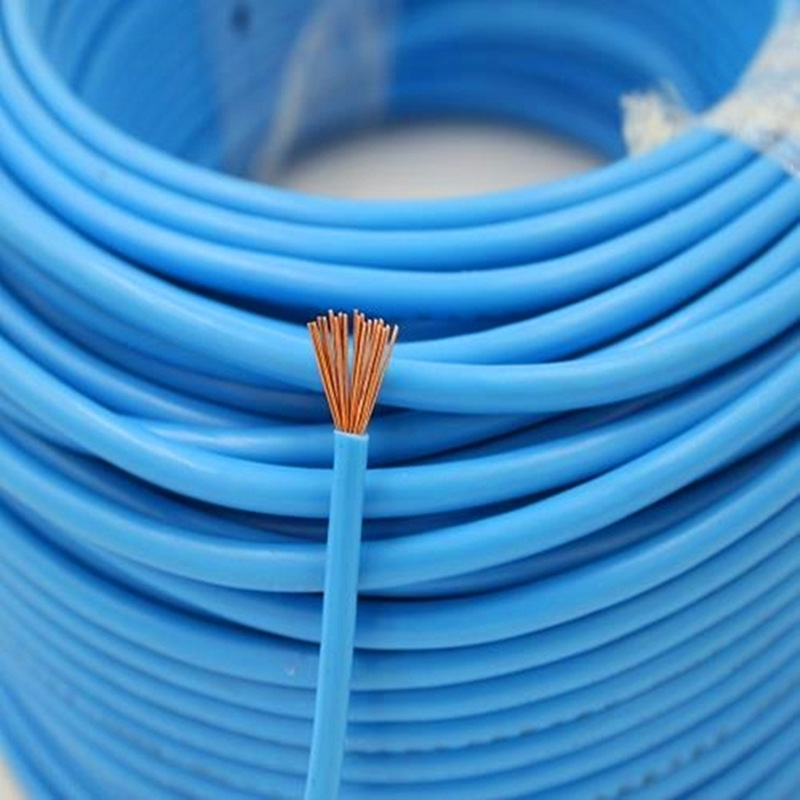

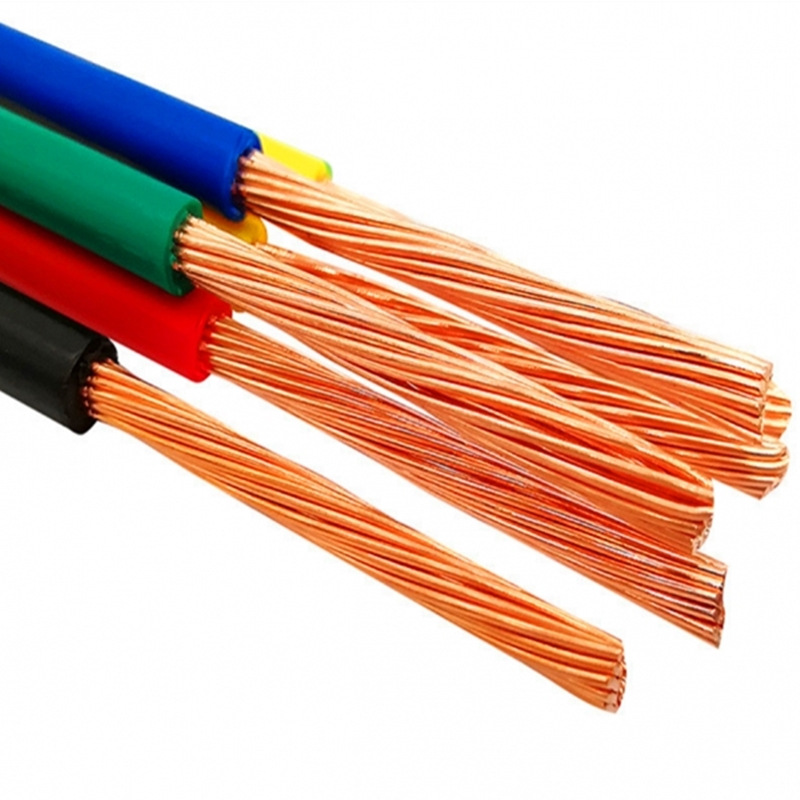

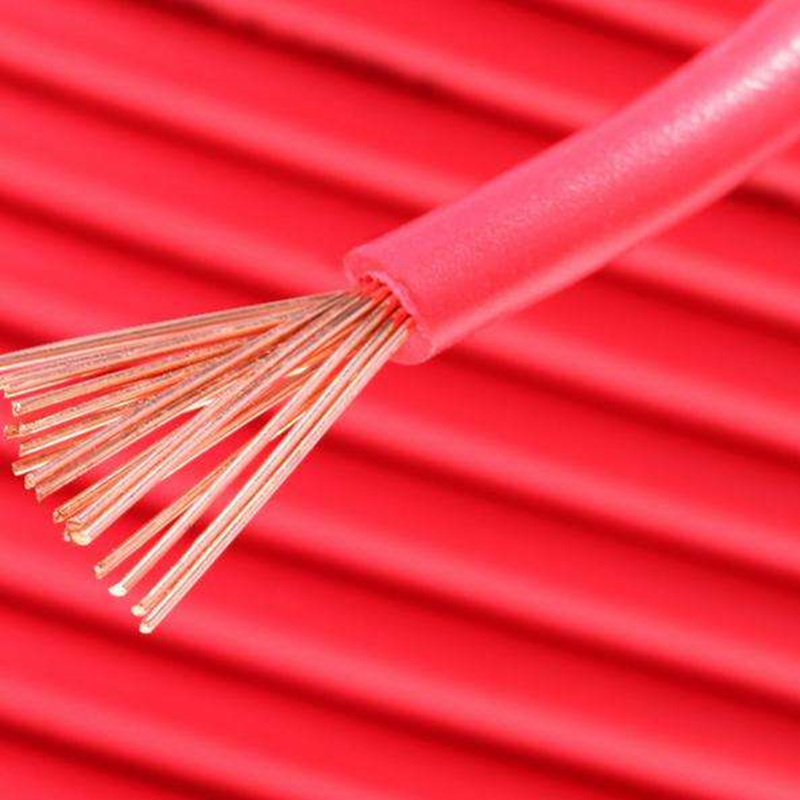

50 KG/KMH07V-R Single Core Strand Copper PVC Insulated
Non-Sheath BVR Electrical Wire and Cables
PRODUCTS KEYWORDS
BVR strand, THW, NYA, H07V-R, 6491X.
APPLICATION AND CHARACTERISTICS
The BVR strand cable can be used to connect indoor switch sockets, lighting, household appliances, small power tools and instruments. The cable has some characteristic: Safe and stable electrical performance, easy wiring soft performance, energy-saving green environmental performance.

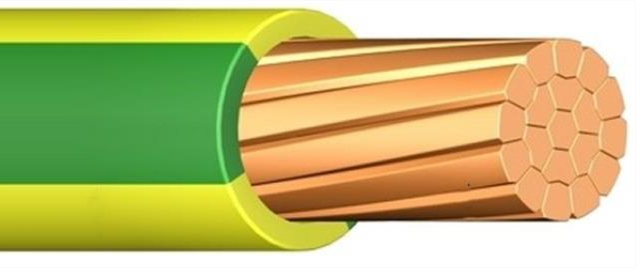

PRODUCT STRUCTURE
---Conductor Material
Pure annealed copper wire, strand, class 2.
---Insulation Material
PVC (Polyvinyl chloride)
---Insulation Color
Red, yellow, blue, green, black, brown, yellow/green, and other colors.
---Sheath Material
Non-Sheath
---Core Number
Single core, 1C.
---Voltage Rate (U0/U)
450/750V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Up to 10 mm²: 3 x O.D. 10 mm² to 25 mm²: 4 x O.D. Above 25 mm²: 5 x O.D.
---Products Standard
JB/T 8734.3-2016.
---Products Packing
100 meters per roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.
---Products MOQ
1.5～70 mm2: ≥5000 meters, 95～400 mm2: ≥500 meters.
---Products Delivery
Within 3-5 working days as soon as we received the deposit.
REMARKS
---The above information is for reference only, please refer to the exact technical parameters according to the actual product.
---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.
---For the BVR strand cable, according to the practice, the common specification is 2.5～70 mm2.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
