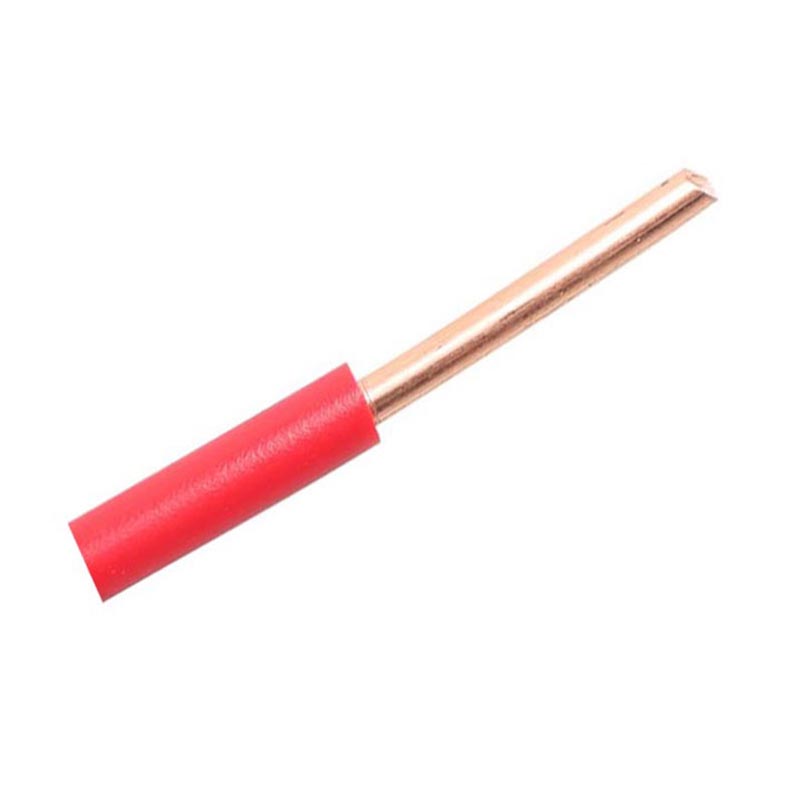

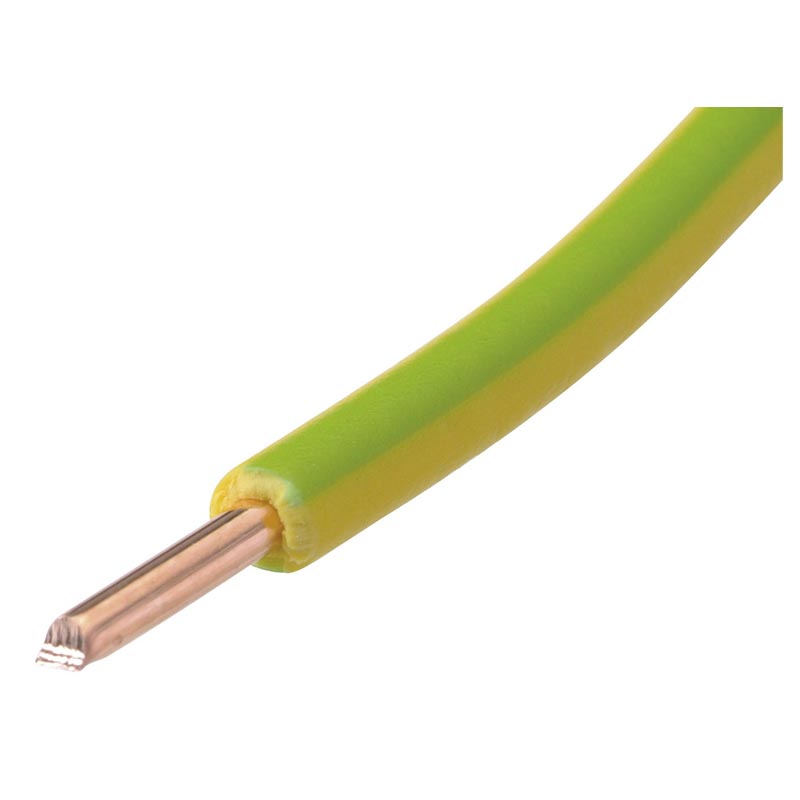

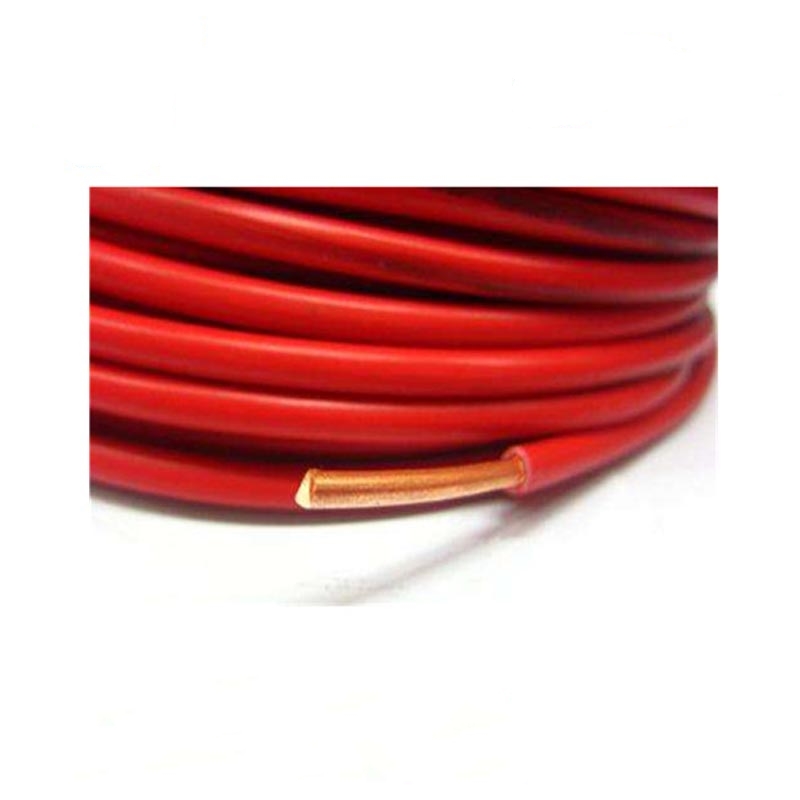

H05V-U H07V-U BV Solid Single Core Non-Sheath Electrical Wires, the product structure includes the solid copper wire and PVC insulation, it is used to to connect indoor switch sockets, lighting, household appliances, small power tools and instruments.
Brand:
ElectricaltechItem NO.:
XTD--BV-01Order(MOQ):
10000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.2Price:
$0.15/0.18Product Origin:
Hubei, China.Color:
Red, yellow, blue, green, black, yellow/green, orShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 3-5 working days since we receiveWeight：
50 KG/KMSingle Core Solid Conductor PVC Insulated Non-Sheathed BV Electrical Wires
PRODUCTS KEY-WORDS
BV, BLV, THW, NYA, H05V-U, H07V-U, 6491X, 60227 IEC 01 BV cable, 60227 IEC 05 BV (small size).
APPLICATION SELLING-POINT
The BV solid cable can be used to connect indoor switch sockets, lighting, household appliances, small power tools and instruments. The cable has some characteristic: Safe and stable electrical performance, easy wiring soft performance, energy-saving green environmental performance.
PRODUCTS STRUCTURE
---Conductor Material

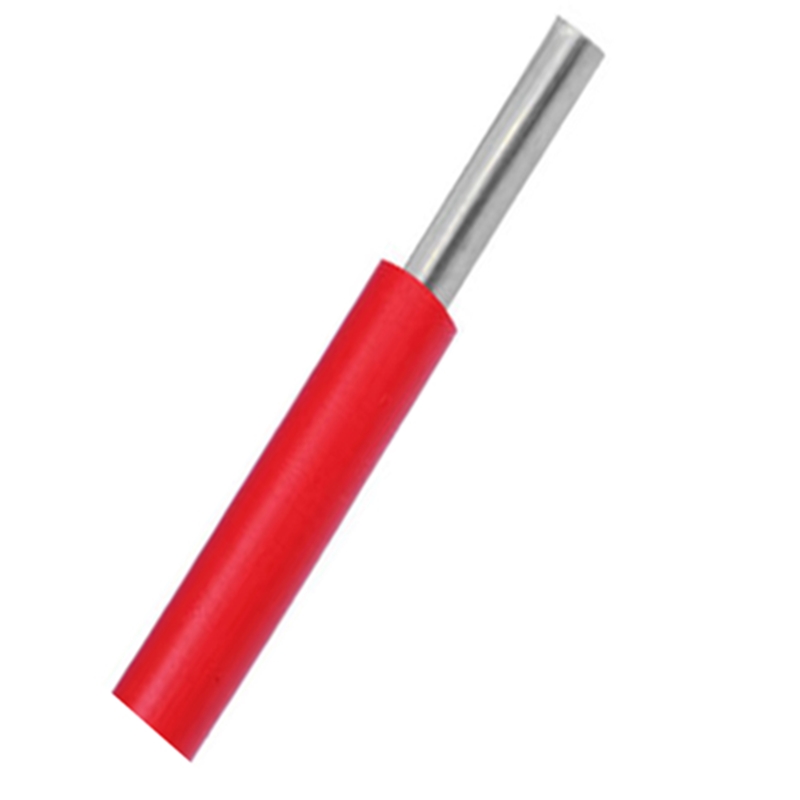

Pure annealed copper or aluminum wire, solid, class 1, meet to IEC 60228, GB/T 3956, BS 6360.
---Insulation Material
PVC (Polyvinyl chloride), meet to BS EN 50363.
---Insulation Color
Red, yellow, blue, green, black, brown, yellow/green, and other colors.
---Sheath Material
Non-Sheath
---Core Number
Single core, 1C.
---Voltage Rate (U0/U)
0.5-1.0 mm2: 300/500V; 1.5-10 mm2: 450/750V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Up to 10 mm²: 3 x O.D.; 10 mm² to 25mm²: 4 x O.D.; Above 25 mm²: 5 x O.D.
---Production Standard
GB/T 5023, JB/T 8734, IEC 60227, BS 6004, VDE 0281, UL 83, TIS 11 Part 3-2553.
---Product Packing
100 meters each roll, reel, plastic reel, wooden pallet, wooden drum, or others.
---Product MOQ
0.5-1.0 mm2: ≥10000 meters, 1.5-10 mm2: ≥5000 meters.
---Product Delivery
Within 3-7 working days as soon as we received the deposit.
REMARK
---The above information is for reference only, please refer to the exact technical parameters according to the actual product.
---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
--- Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
--- Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
