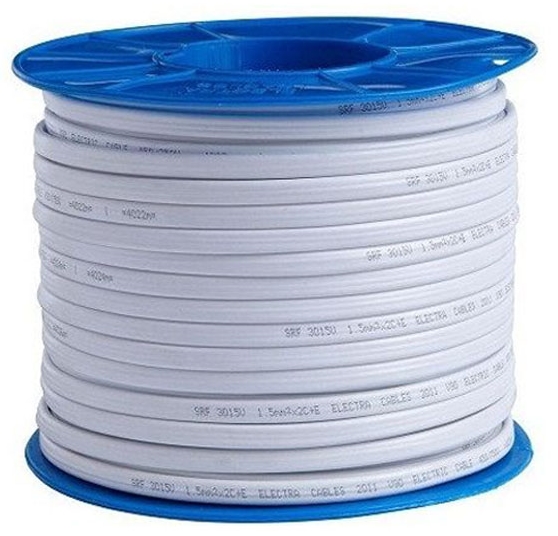

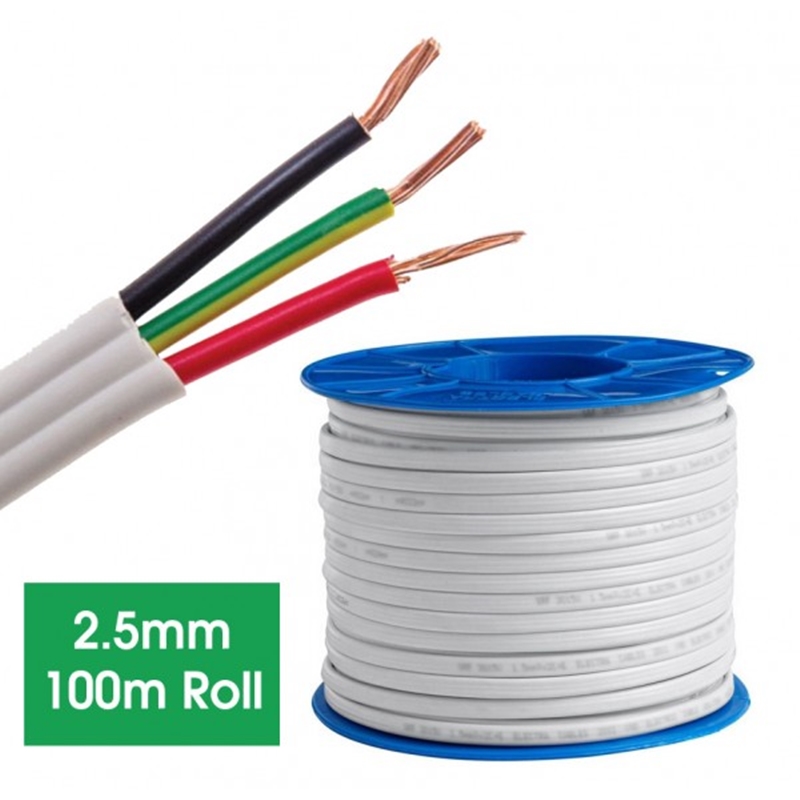

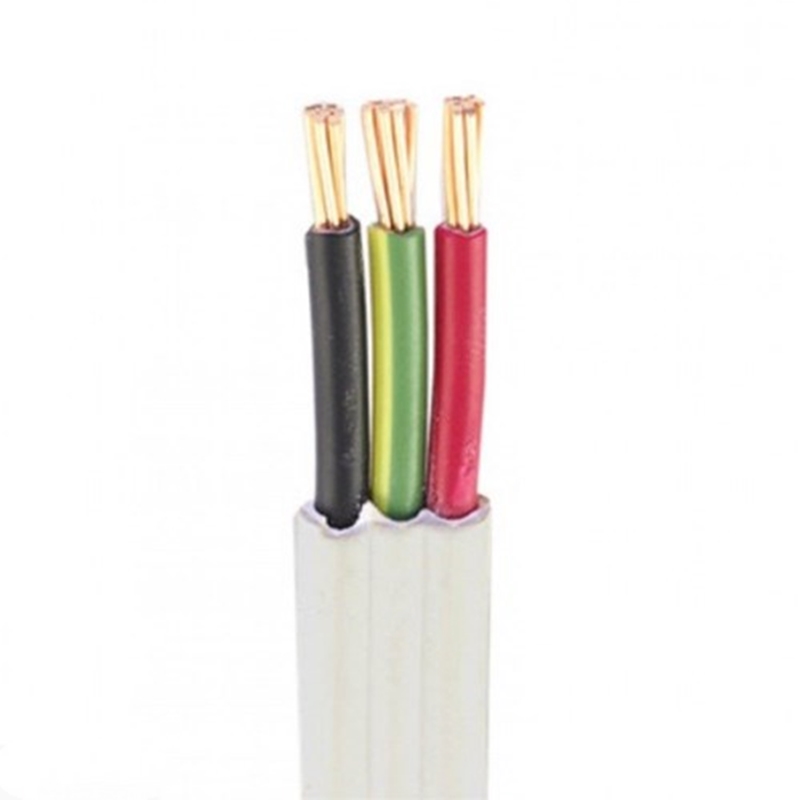

AS/NZS 5000.2 Flat TPS BVVB Electrical Cable

AS/NZS 5000.2 Flat TPS BVVB Electrical Wire and Cable

MAIN KEYWORDS

BVVB, flat TPS cable, PVC flat cable, PVC flat + earth cable, PVC flat 2C+E cable.

APPLICATION CHARACTERISTICS

2 & 3 cores flat TPS BVVB cable, for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Compared with IEC 60227 and BS 6004 standard products, it mainly has the following differences:

① colour of insulation and sheath.

② material of insulation & sheath.

③ working temperature.

④ conductor structure.

⑤ structure and color of earth wire.

⑥ sheath surface.

⑦ voltage rated.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, solid class 1 (1.0 mm²), strand class 2 (1.5～16 mm²).

---Insulation Material

    V-90 PVC (Polyvinyl chloride).

---Insulation Colour

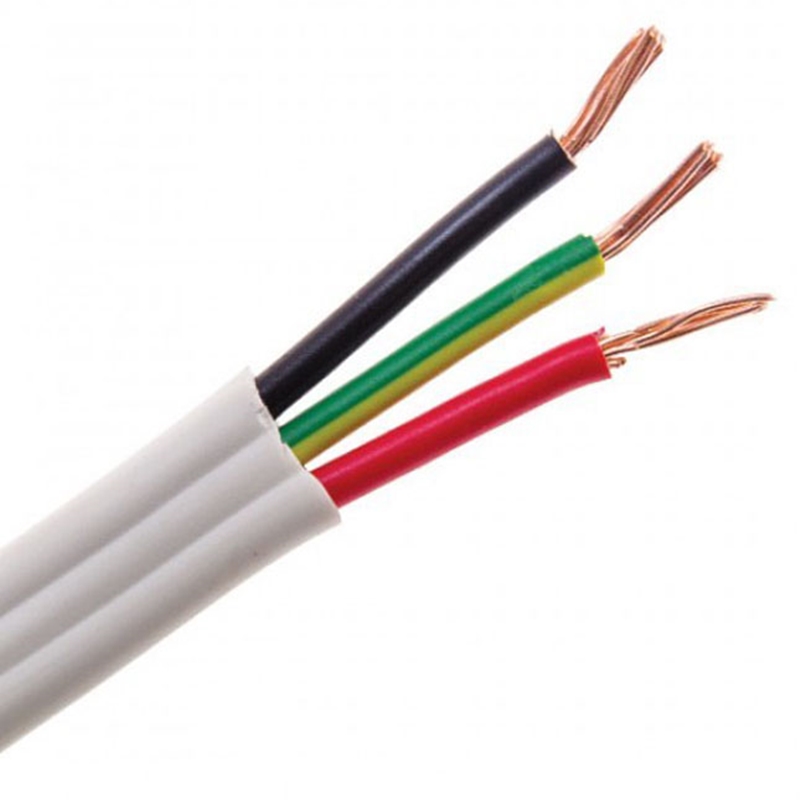

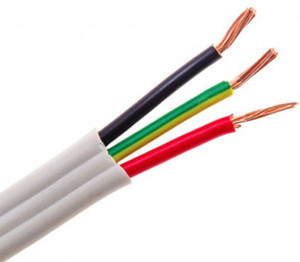

   2C: red, black; red, white. 3C (2C + earth): red, black, yellow/green (E); red, white, yellow/green (E).

---Sheath Material

   3V-90 PVC (Polyvinyl chloride).

---Sheath Colour

    White

---Voltage Rate (U₀/U)

   450/750V

---Working Temperature

   -15℃～+90℃.

---Minimum Bending Radius

   Up to 6 mm2: 6 x O.D., 10～35 mm2: 10 x O.D.

---Products Appearance

   Flat (it is not round/circular).

---Production Standard

   AS/NZS 5000.2, AS/NZS 1125

---Production Delivery

    Within 7-10 working days as soon as we received the deposit.

REMARK

---The above information is for reference only, for the formal data, please refer the actural products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the flat TPS BVVB cable (earth wire is optional), according to the practice, the common specification is 0.75～4 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

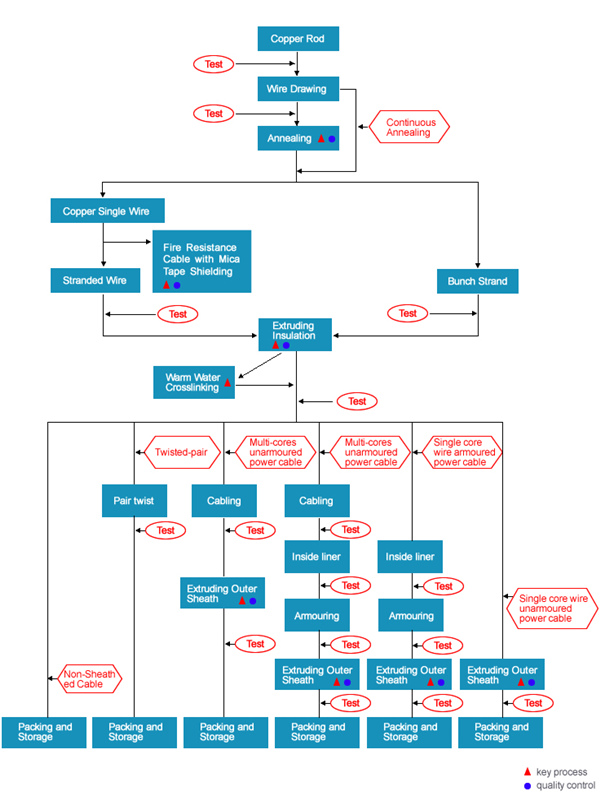

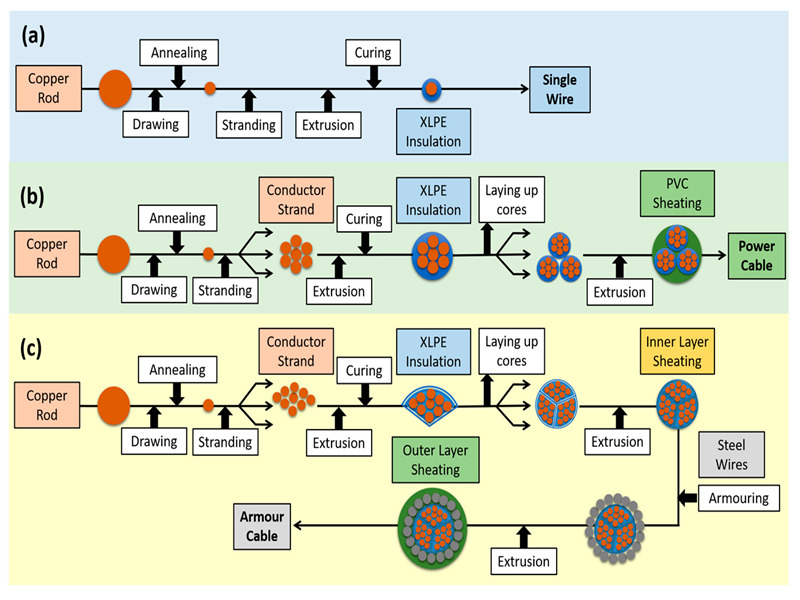

PRODUCTION PROCESS
