RVH Flat Flexible Electrical Wire and Cable

Flat Flexible RVH Electrical Wires

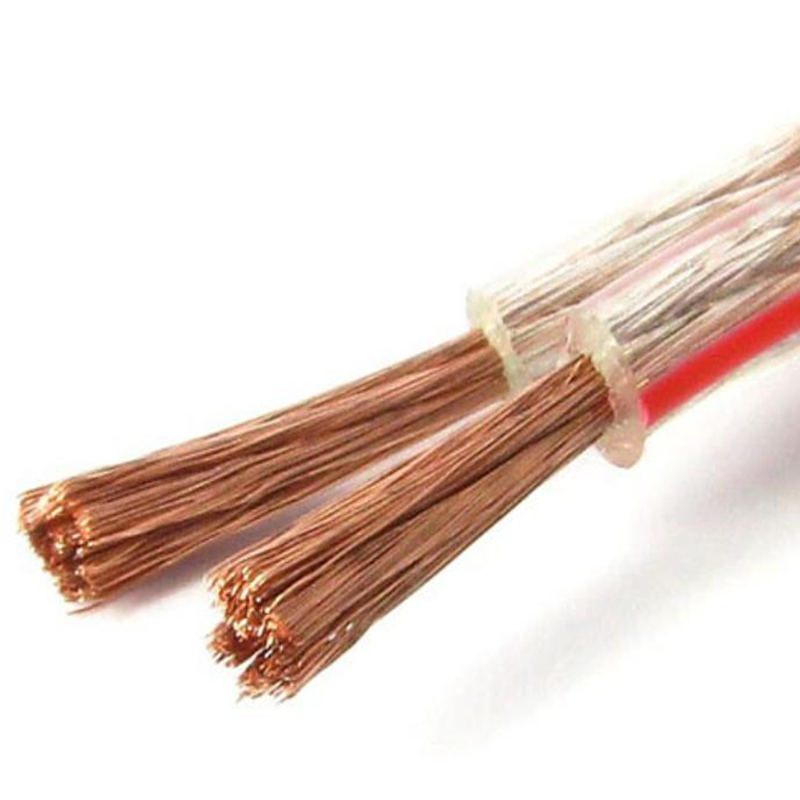

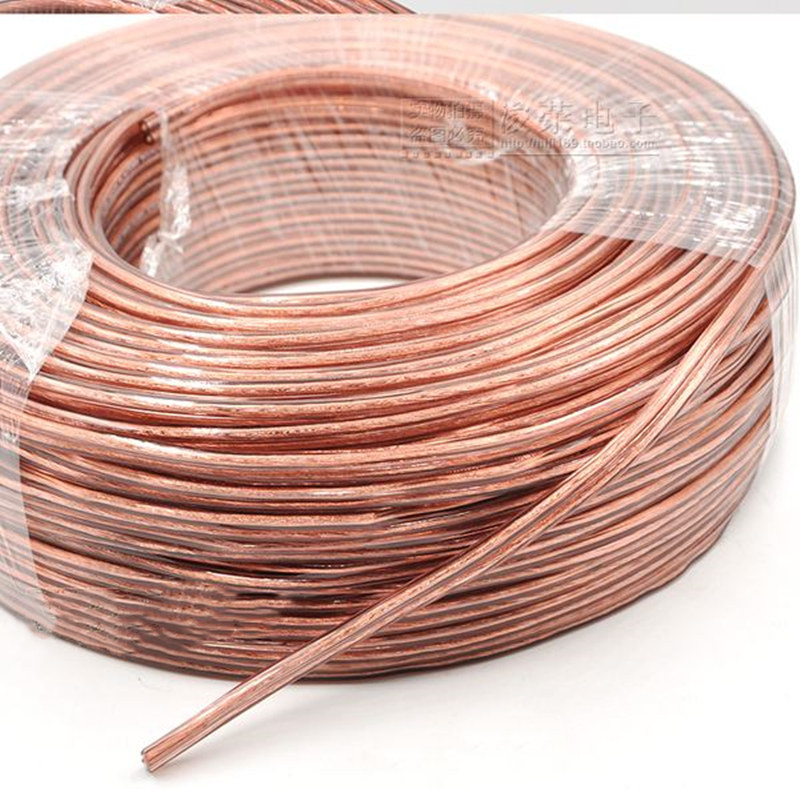

Flat Flexible RVH Electrical Wires, strand flexible copper wire and tinned copper wire, soft transparent PVC insulation. It is used to stereo speaker connections, For the transmission of low-frequency audio signals, Broadcasting system equipment, Conference Room Project.

Brand:
Electricaltech
Item NO.:
XTD-RVH-01
Order(MOQ):
5000 meters.
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 0.25
Price:
$0.2/0.23 per meter
Product Origin:
Hubei Province, China.
Color:
Gold/silver, or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 3-5 working days as soon as we re
Weight：
38 KG/KM

Inquiry now

Product Detail

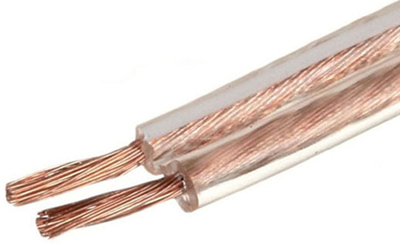

Flat Flexible RVH PVC Insulated Electrical Wires and Cables

MAIN KEYWORDS

RVH, flat flexible wire, gold & silver wire, speaker cable, sound cable, Hi-fi sound cable, audio cable.

APPLICATION CHARACTERISTICS

Flat flexible RVH cable, the speaker cable is used to connect the power amplifier and the speaker, and the current signal in circulation is far greater than that of the video cable and the audio cable. This kind of cable often has no shielding layer. For this kind of wire, the key is to reduce its resistance, so the requirements for the speaker cable are also increased, such as selecting a large cross-sectional area or multi stranded wire.

PRODUCTS STRUCTURE

---Conductor Material

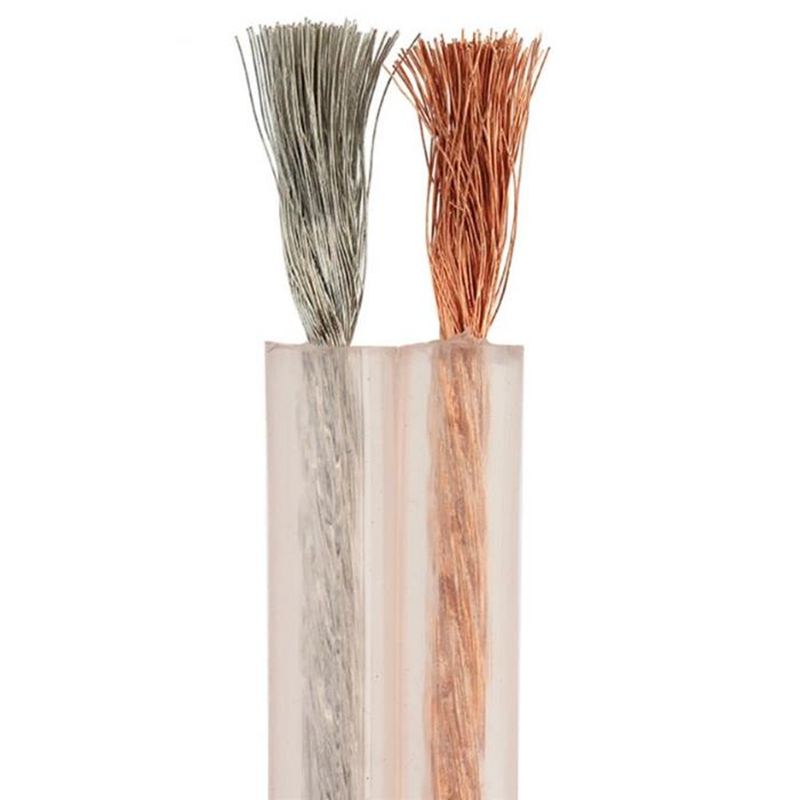

Pure or tinned copper wire, strand class 5 or class 6, flexible.

---Insulation Material (inner insulation)

Soft transparent PVC (polyvinyl chloride).

---Insulation Colour

gold/silver, or others.

---Sheath Material （optional)

Soft transparent PVC (polyvinyl chloride)

---Sheath Colour (if available)

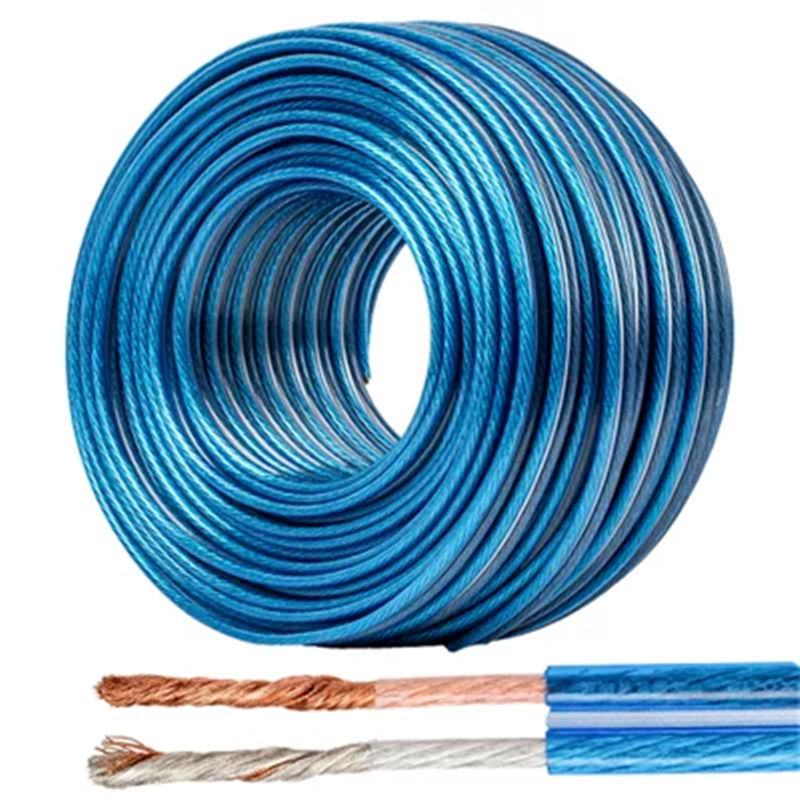

Gold, blue, transparent, or others.

---Core Number

2 cores, 2C.

---Voltage Rate (U₀/U)

300/300V

---Working Temperature

-15℃～+70℃.

---Minimum Bending Radius

Fixed: 6 x Out Diameter.

---Production Standard

JB/T 8734, GB/T 5023, IEC 60227, YD/T 1019-2001.

---Products Delivery

Within 5-7 working days as soon as we received the deposit.

PRODUCTS SPECIFICATION

Cross Section Area (mm²)	Conductor Material	Conductor Structure (pcs/mm)	Insulated Material	Insulated Thickness (mm)	Refer Max. Out Diameter (mm)	Refer Net Weight (kg/km)	MOQ (m)	Remak
2 x 0.4	copper, Tinned copper	2C 50/0.10	soft PVC	0.8	2.0x4.0	9.4	10000	500C
2 x 0.8	copper, Tinned copper	2C 100/0.10	soft PVC	0.8	2.4x4.8	15.2	10000	100C
2 x 1.2	copper, Tinned copper	2C 150/0.10	soft PVC	0.8	3.2x6.4	19.2	10000	150C
2 x 1.5	copper, Tinned copper	2C 180/0.10	soft PVC	0.8	3.6x7.2	28.8	5000	180C
2 x 1.6	copper, Tinned copper	2C 200/0.10	soft PVC	0.8	3.8x7.6	29.0	5000	200C
2 x 2.0	copper, Tinned copper	2C 250/0.10	soft PVC	0.9	4.0x8.0	46.3	5000	250C
2 x 2.5	copper, Tinned copper	2C 300/0.10	soft PVC	0.9	4.2x8.4	48.0	5000	300C
2 x 3.0	copper, Tinned copper	2C 350/0.10	soft PVC	1.0	4.6x8.8	75.6	5000	350C
2 x 2.5 With white strip	copper, Tinned copper	2C 300/0.10	soft PVC	0.9	4.2x8.4	48.2	5000	300C
2 x 2.5 With white strip	copper, Tinned copper	2C 300/0.10	soft PVC	0.9	4.2x8.4	48.2	5000	300C

REMARK

---The above information is only for you reference, for the formal data, please refer to the actural products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The above all information is only for you reference, please refer to the actual goods.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the RVH cable, according to the practice, the common specification is 1.0～2.5mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
