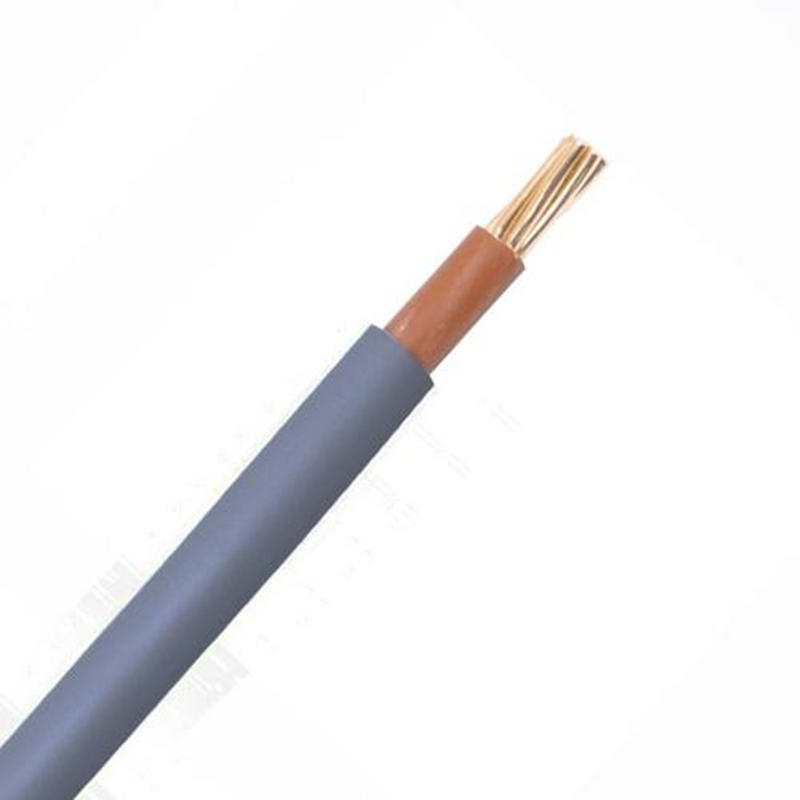

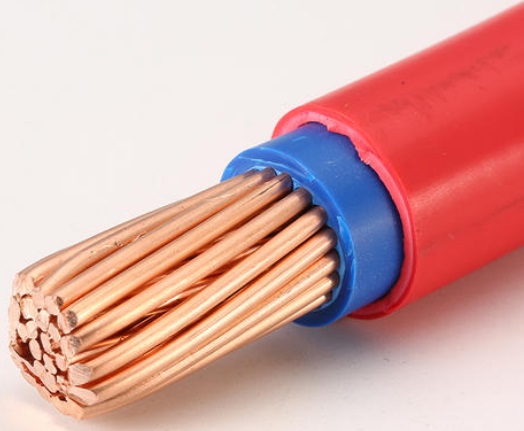

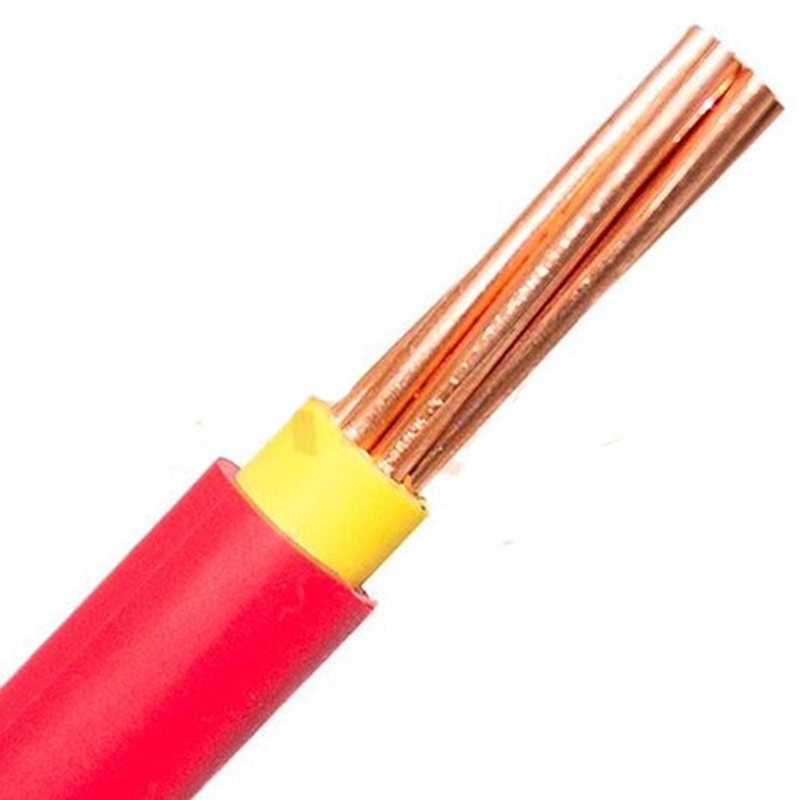

6181Y Single core double PVC insulated BVV NYM cable, copper wire, PVC insulation, PVC sheath. It is used to general purpose, for installation in raceway and shall be protected water into raceway, but do not install in duct in ground or direct burial in ground.
Brand:
ElectricaltechItem NO.:
XTD-BVV-01Order(MOQ):
3000 meters.Payment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.3Price:
$0.25/0.27 per meterProduct Origin:
Hubei Province, China.Color:
Red yellow blue green brown black grey yellShipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 3-5 working days as soon as we reWeight:
138 KG/KMSingle Core Double PVC Insulated NYM BVV Electrical Wire and Cables
PRODUTS KEYWORDS
BVV, BVVR, NVV, NYM, NYM-J, NYJ-O, 6181Y, H05VV-U, H07VV-U, H07VV-R, SDI Insulated Cable,
60227IEC10 BVV, CU/PVC/PVC.
APPLICATION AND CHARACTERISTICS
The single core BVV cable can be used for general purpose, for installation in raceway and shall be protected water into raceway, but do not install in duct in ground or direct burial in ground. The BVV cable has add one layer of insulation base on BV cable, it can better protect conductor and insulating material, wear resistance, oil resistance, acid resistance and alkali resistance.

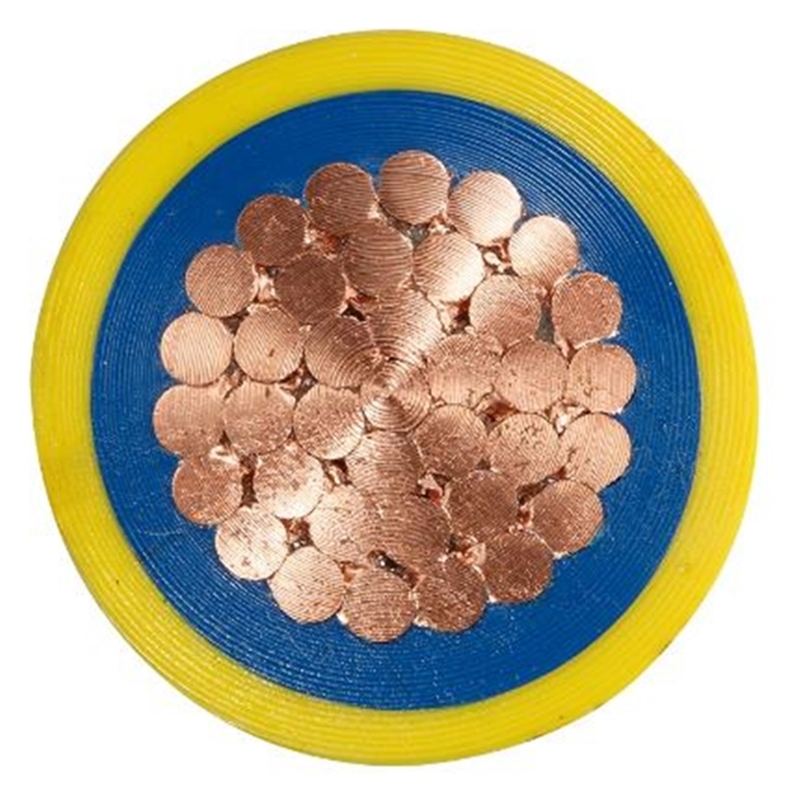

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper or aluminum wire; solid class 1, or strand class 2.
---Insulation Material
PVC (Polyvinyl chloride).
---Insulation Color
Red, yellow, blue, green, black, brown, and other colors.
---Sheath Material
PVC (Polyvinyl chloride).
---Sheath Color
Red, yellow, blue, green, black, brown, yellow/green, and other colours.
---Core Number
Single core, 1C.
---Voltage Rate (U0/U)
300/300V (0.75~1.0 mm2), 300/500V (1.5~185 mm2), 450/750V (AS/NZS 5000.2)
---Working Temperature
-15℃~+70℃.
---Minimum Bending Radius
Up to 10 mm²: 5 x O.D., above 10 mm²: 6 x O.D.
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227, BS 6004, VDE 0250, TIS 11 part 4-2553.
---Products Packing
100 meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.
---Products Delivery
Within 3-5 working days as soon as we received the deposit.
REMARK
---The above information only for you reference, for the formal data, please refer the actual products.
---The product can have flame retardant, fire-resistant, low smoking zero halogen properties, and the working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.

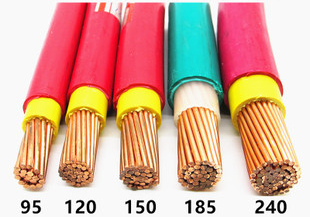

---For the single core BVV cable, according to the practice, the common specification is 1.5~185 mm2.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE

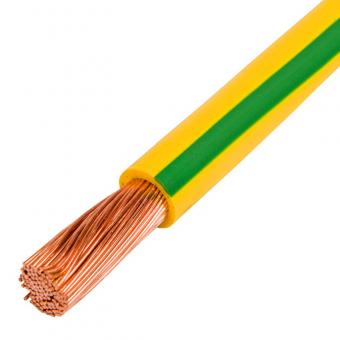

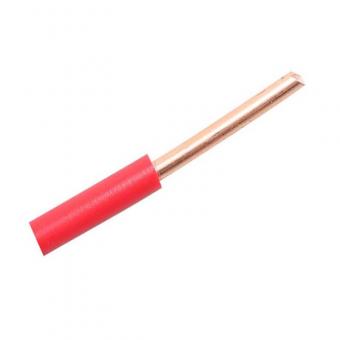

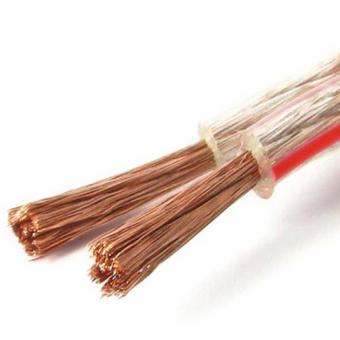

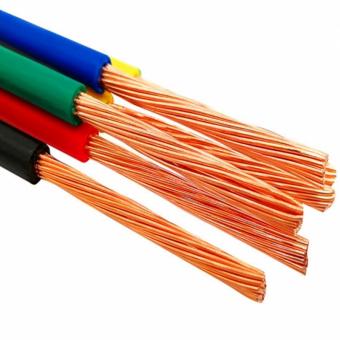

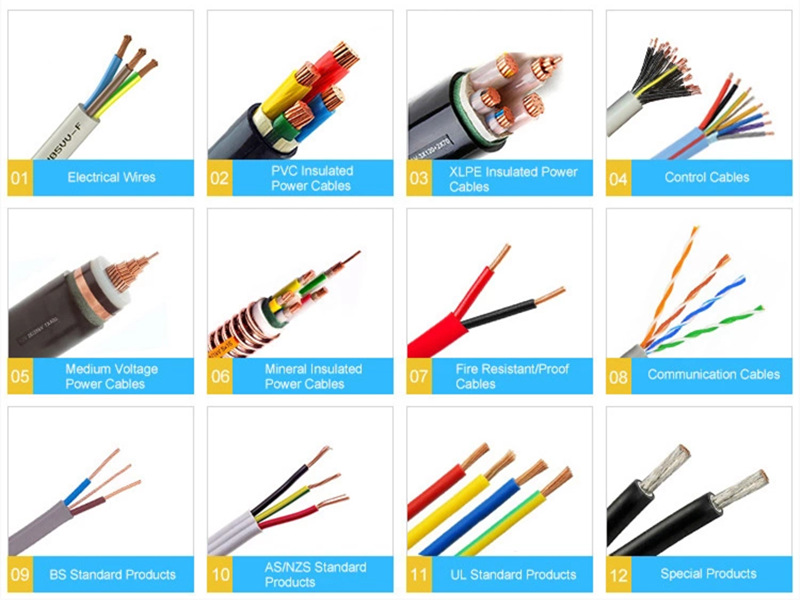

HOT-SELLING PRODUCTS
RAW MATERIAL

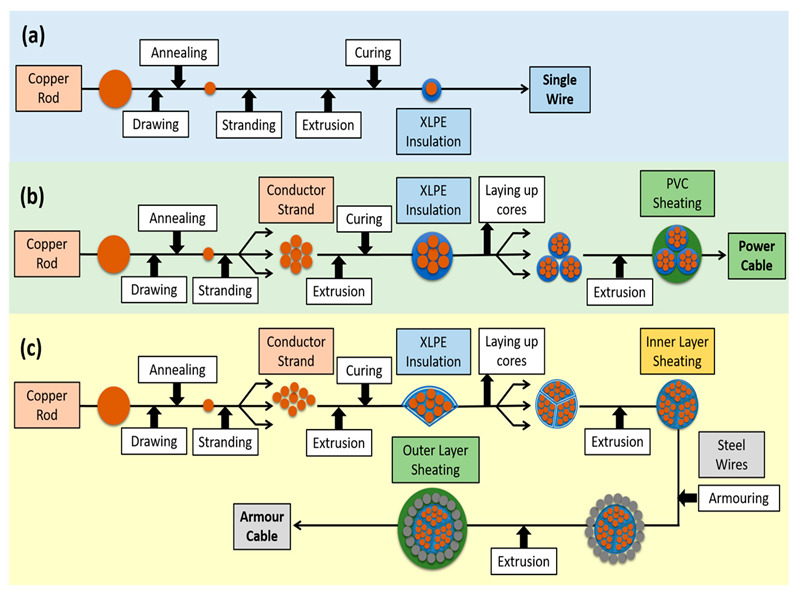

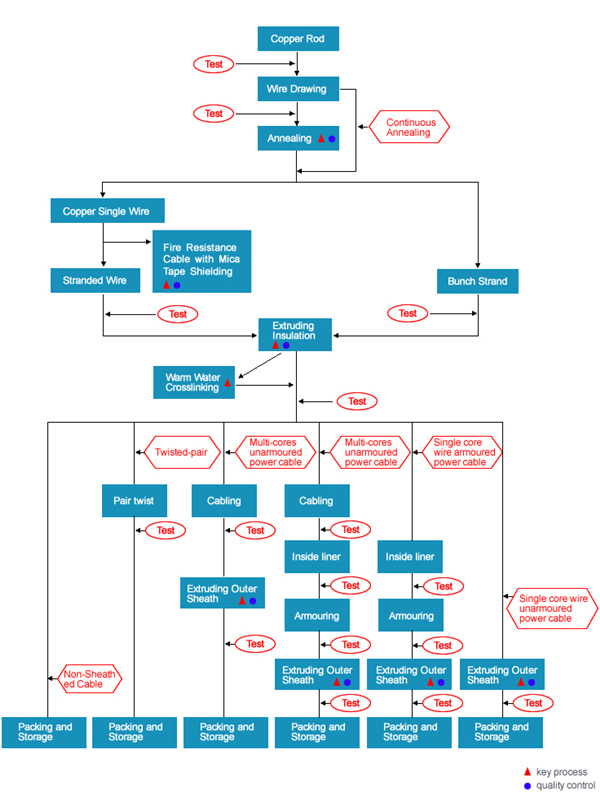

PRODUCTION PROCESS
