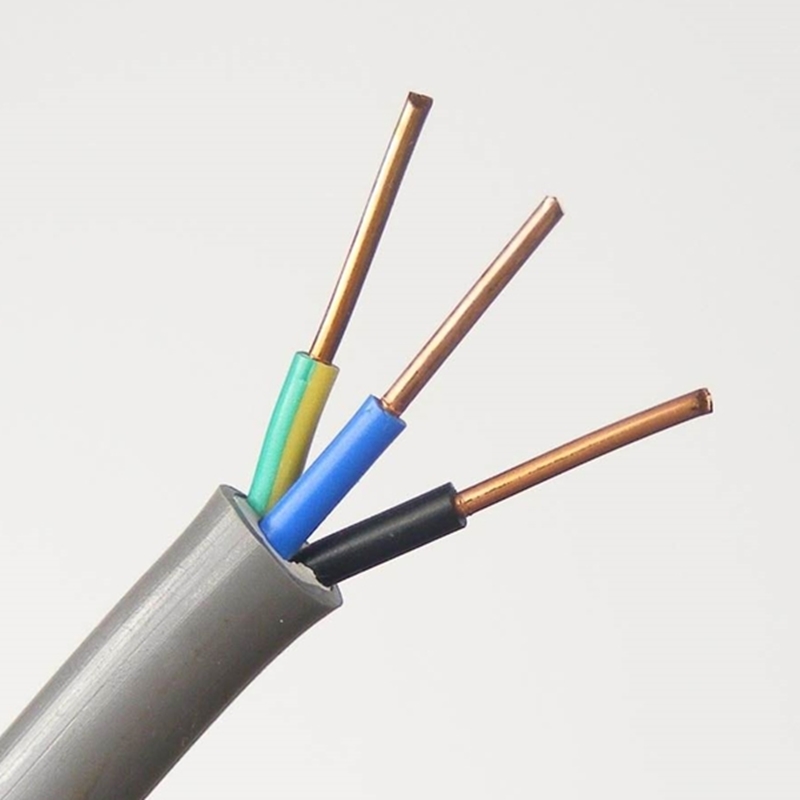

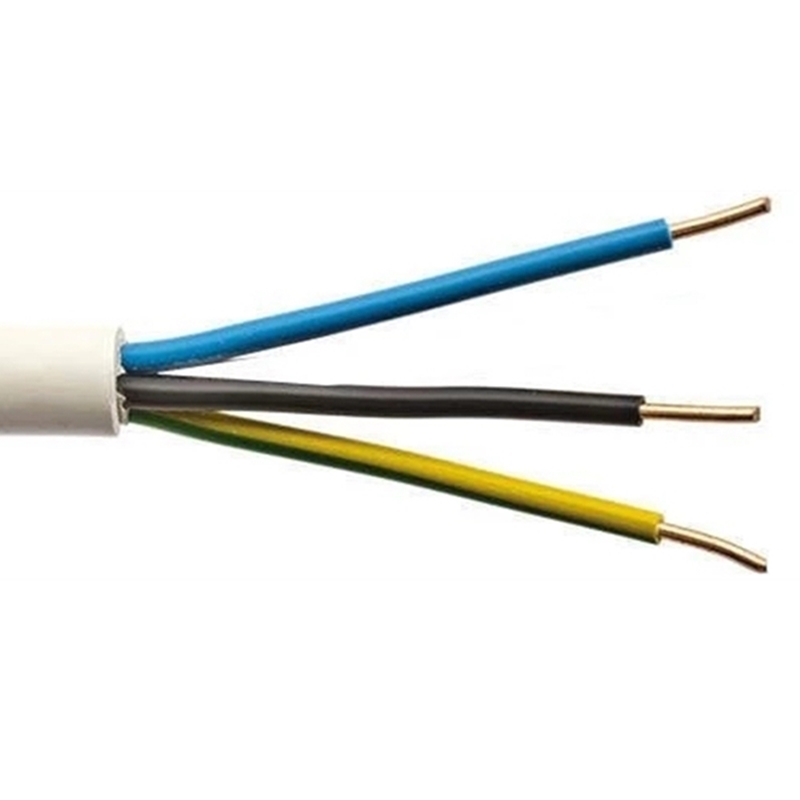

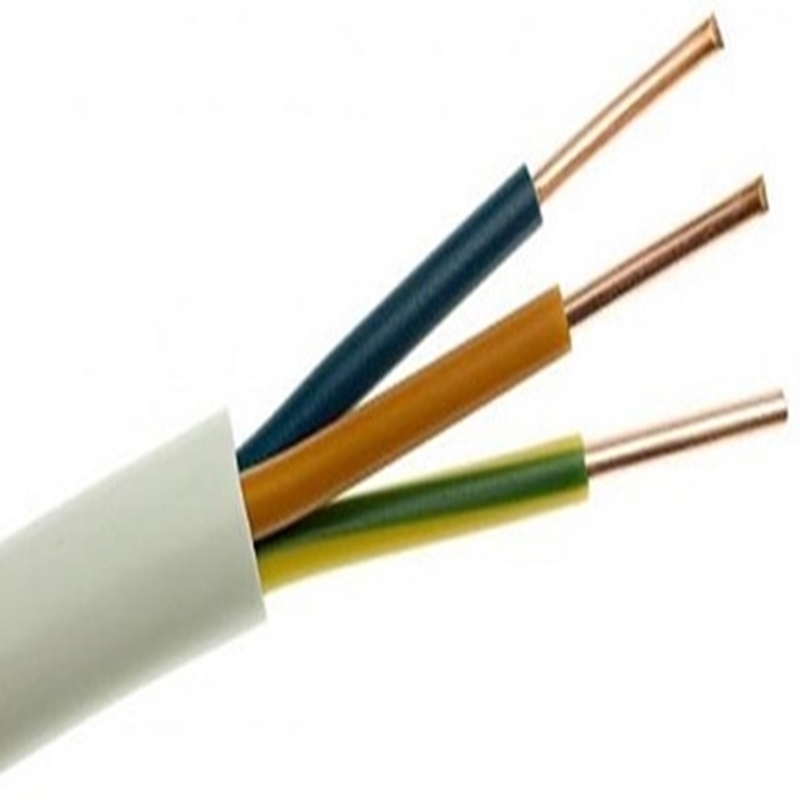

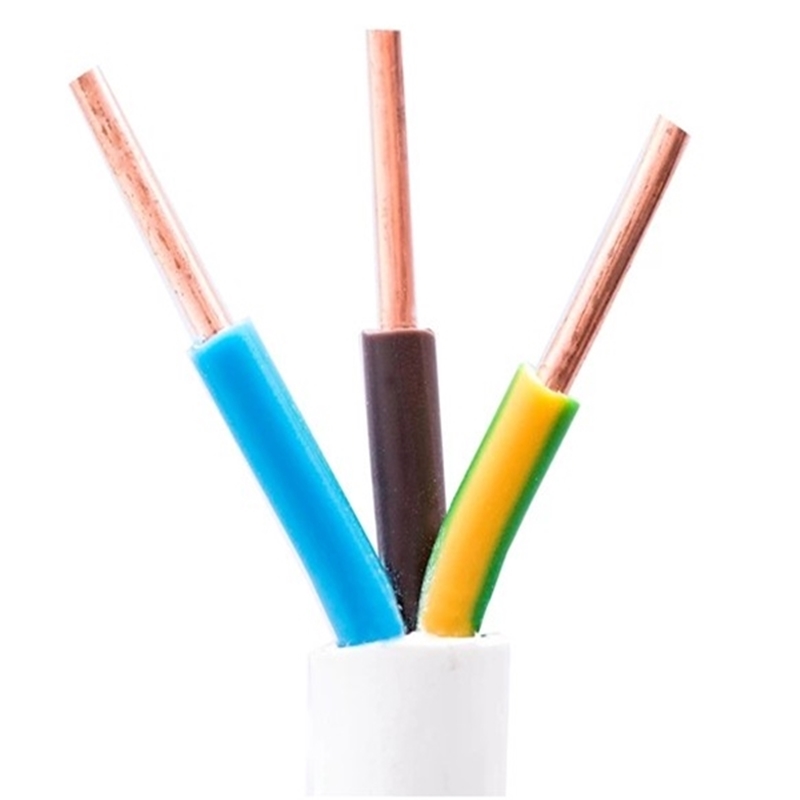

Multi-cores BVV NYM cable, copper wire, PVC insulation, PVC sheath, inner sheath if available as per the customer request. It is used to general purpose, for installation in raceway and shall be protected water into raceway, but do not install in duct in ground or direct burial in ground.
Brand:
ElectricaltechItem NO.:
XTD-BVV-02Order(MOQ):
3000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.36Price:
$0.33/0.35 per meterProduct Origin:
Hubei Province, China.Color:
Red & yellow red & black red & blue red & greenShipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 5-7 working days as soon as we reWeight:
180 KG/KMMulti-cores PVC Insulation and Sheath BVV NYM Electrical Cables
MAIN KEYWORDS
BVV, BVVR, NVV, NYM, NYM-J, NYM-O, H05VV-U, H05VV-R, H07VV-U, H07VV-R, SDI Insulated Cable, CU/PVC/PVC, 60227IEC 10 BVV.
APPLICATION AND CHARACTERISTICS
BVV multi-core cable is used to connect household appliances, indoor circuits, lighting, switch, sockets and small electric tools, etc. For the appearance, the multi-cores BVV cable is similar to VV power cable. But the thickness of insulation and sheath, the multi-cores BVV cable is thinner than VV power cable; for the voltage rate, the multi-cores BVV cable is lower than the VV power cable; about the production procession, the multi-core BVV cable is simple than VV power cable.

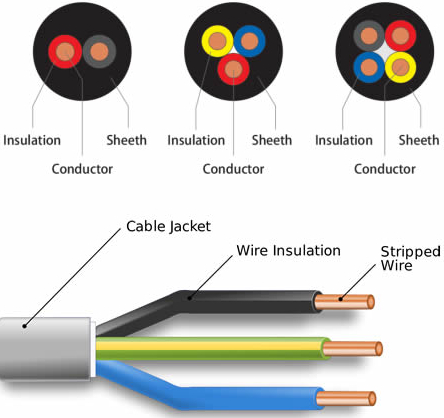

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, class 1 solid, or class 2 strand.
---Insulation Material (inner insulation)
PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black, white, orange, or others.
---Core Number
2 cores, 2C; 3 cores, 3C; 4 cores, 4C; 5 cores, 5C.
---Voltage Rate (U0/U)
300/500V.
---Working Temperature
-15℃~+70℃.
---Minimum Bending Radius
Fixed: 6 x Out Diameter.
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227, BS 6500, TIS 11 part 4-2553.
---Products Delivery
Within 5-7 working days as soon as we received the deposit.
REMARK
---The above specification is only for you reference, the formal technical data, please refer and check the actual cables.
---The above cable maybe has the inner
sheath, and the material of inner sheath is PVC.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
or 105 degree, but the production process, materials and production standard
maybe has a few of different.
---For the BVV multi-core BVV cable, according
to the practice, the common specification is 1.5~6 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
