Brand:
ElectricaltechItem NO.:
XTD-BVVB-01Order(MOQ):
3000 meters.Payment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.5Price:
$0.38/0.45 per meterProduct Origin:
Hubei Province, China.Color:
White black grey or as per customer request.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 3-5 working days as soon as we reWeight:
3.5 KG/KMFlat Twin and Earth BVVB Electrical Wire and Cable
MAIN KEYWORDS
BVVB, BLVVB, VAF, VAF-G, Flat twin cable, Flat Twin and Earth Cable.
APPLICATION CHARACTERIESTICS

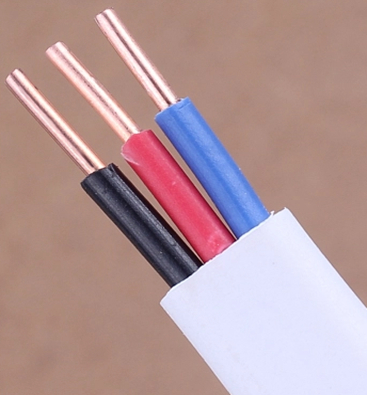

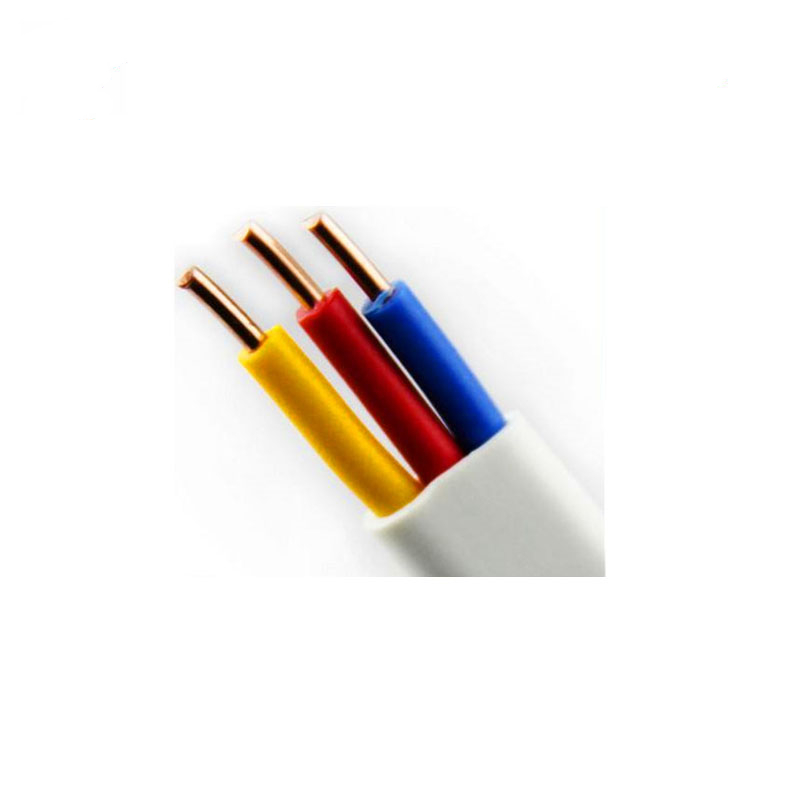

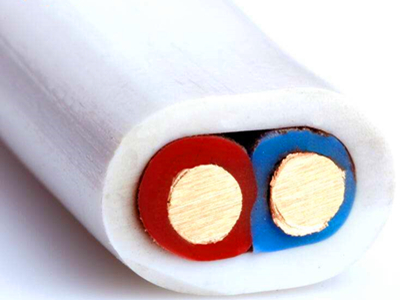

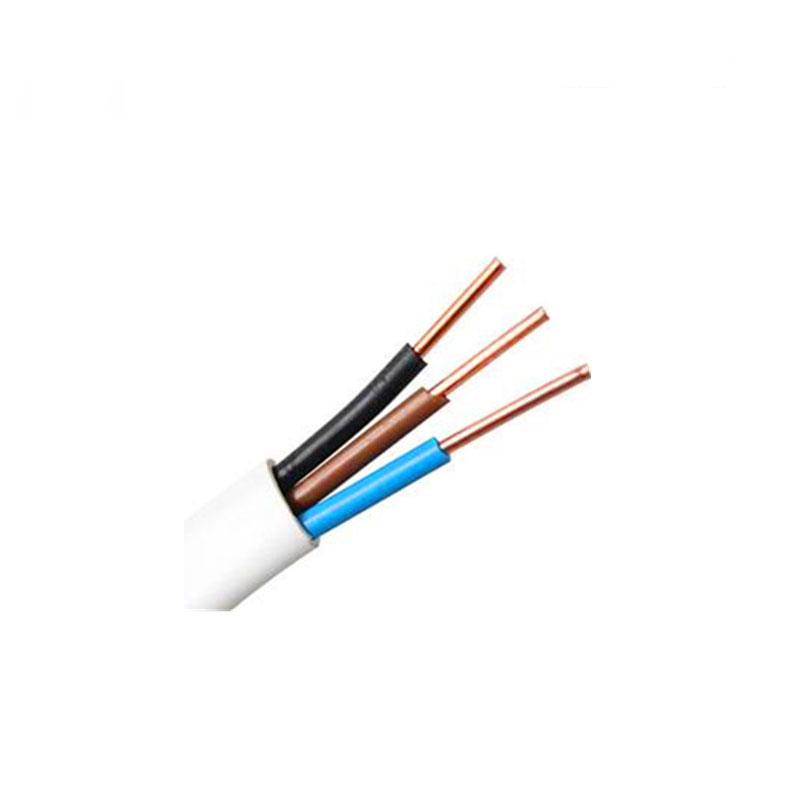

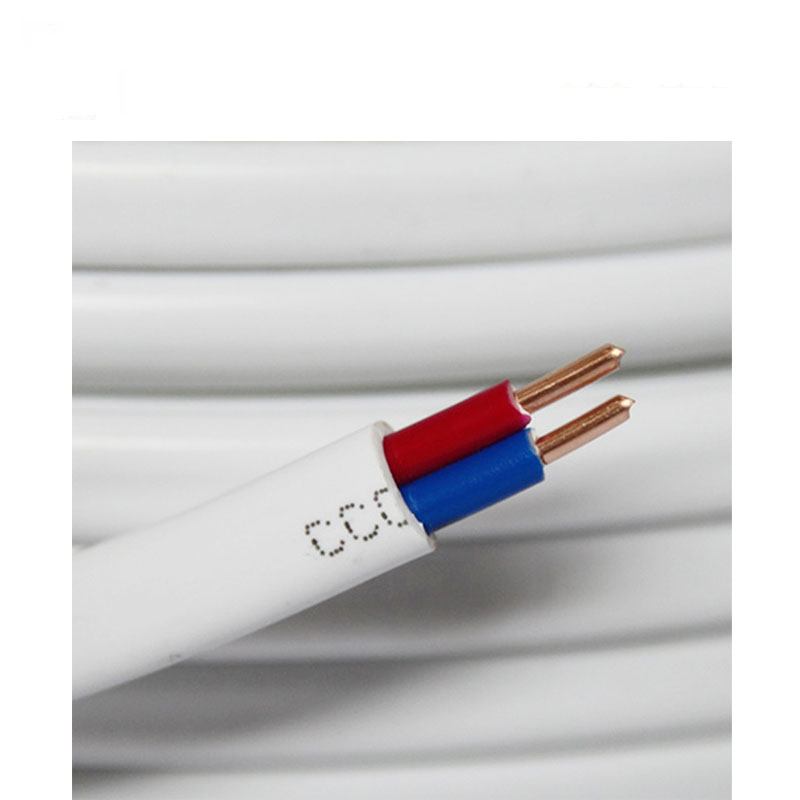

BVVB flat twin cable, maybe its earth wire is optional. The BVVB flat twin cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round/circular.
PRODUCTS STRUCTURE
---Conductor Material

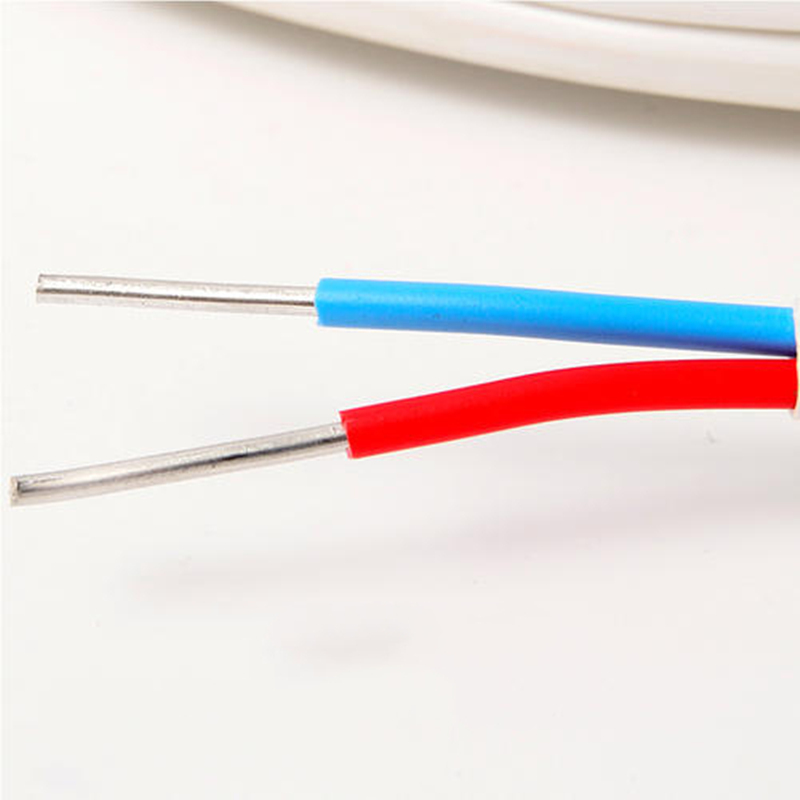

Plain annealed copper or aluminum wire, solid class 1 (0.75~4 mm2), or strand class 2 (6~16 mm2).
---Insulation Material
PVC (Polyvinyl chloride).
---Insulation Colour
2C: brown, blue; red, blue; and others.
3C: red, blue, black; brown, blue, black; red, blue, yellow/green; and others.
---Sheath Material
PVC (Polyvinyl chloride).
---Sheath Colour
White, black, grey, or others.
---Core Number
2C, 2 cores (flat twin BVVB cable, without earth wire)
3C, 3 cores (flat twin and earth BVVB cable, with earth wire).
---Voltage Rate (U0/U)
300/300V, 300/500V
---Working Temperature
-15℃~+70℃.
---Minimum Bending Radius
Up to 6 mm2: 6 x O.D., 10~35 mm2: 10 x O.D.
---Products Appearance
Flat (it is not round/circular).
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227.
---Production Delivery
Within 5-7 working days as soon as we received the deposit.
REMARK
---The above information only for you reference, please refer the actual products.
---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.
---For the flat twin BVVB cable (earth wire is optional), according to the practice, the common specification is
0.75~4 mm2.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
