Brand:
ElectricaltechItem NO.:
XTD-RVV-01Order(MOQ):
3000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.38Price:
$0.3/0.35 per meterProduct Origin:
Hubei Province, China.Color:
Black, white, or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 5-7 working days as soon as we reWeight:

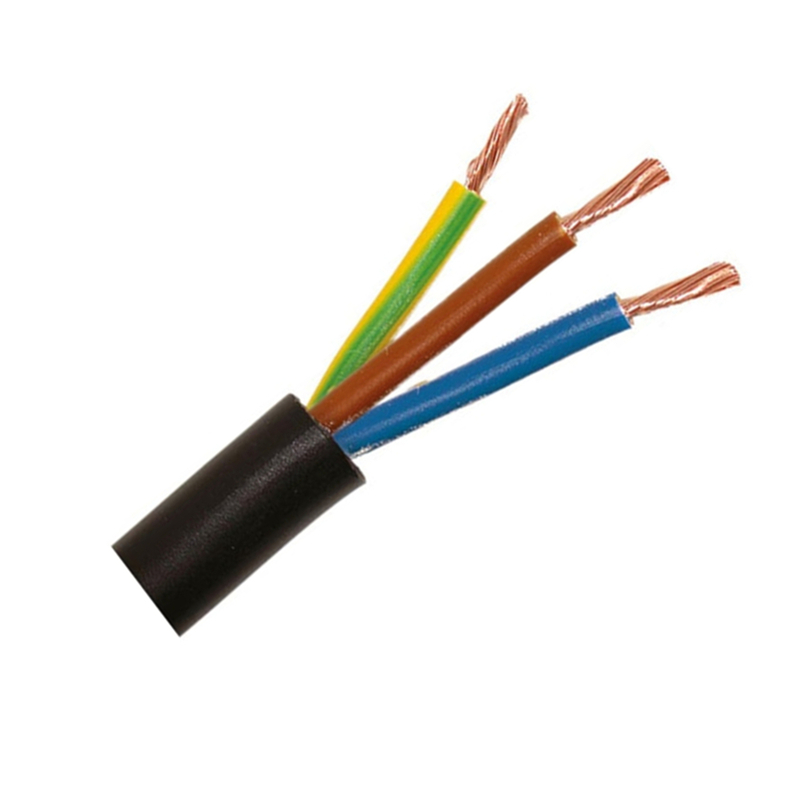

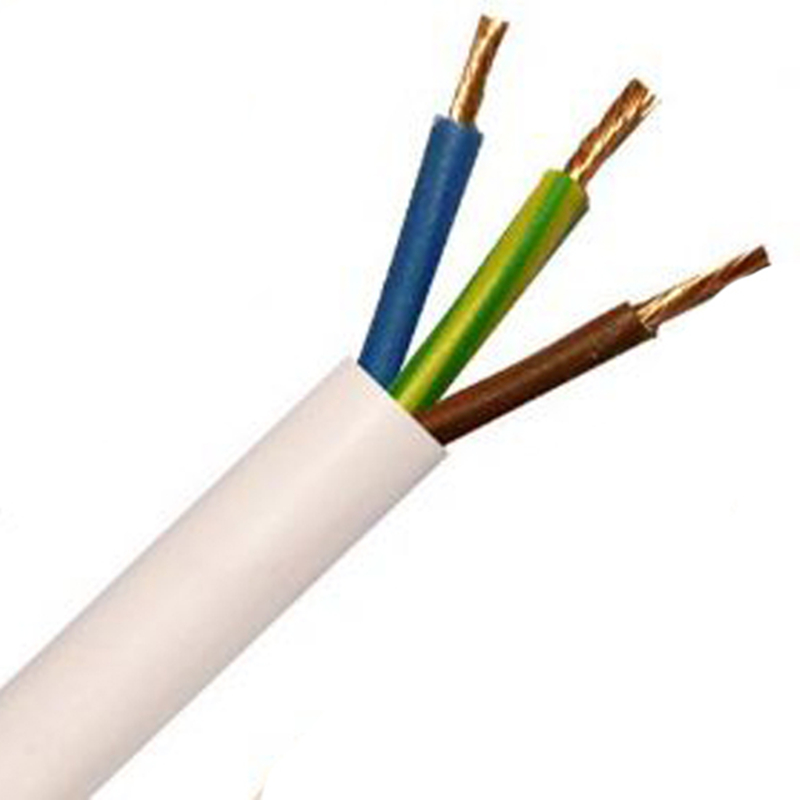

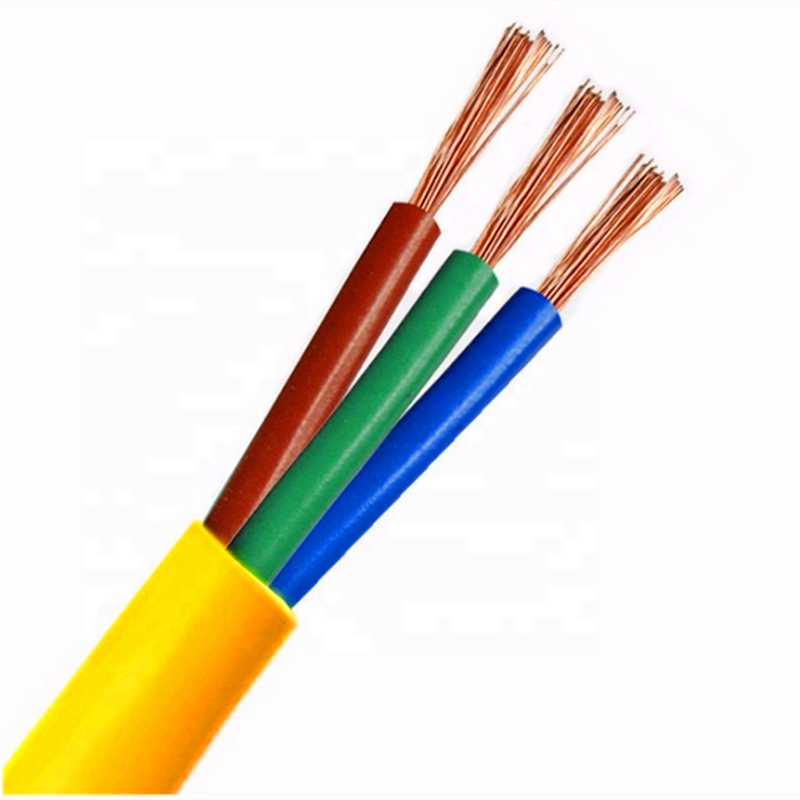

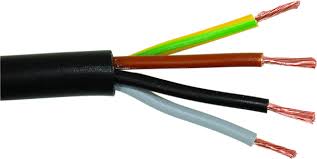

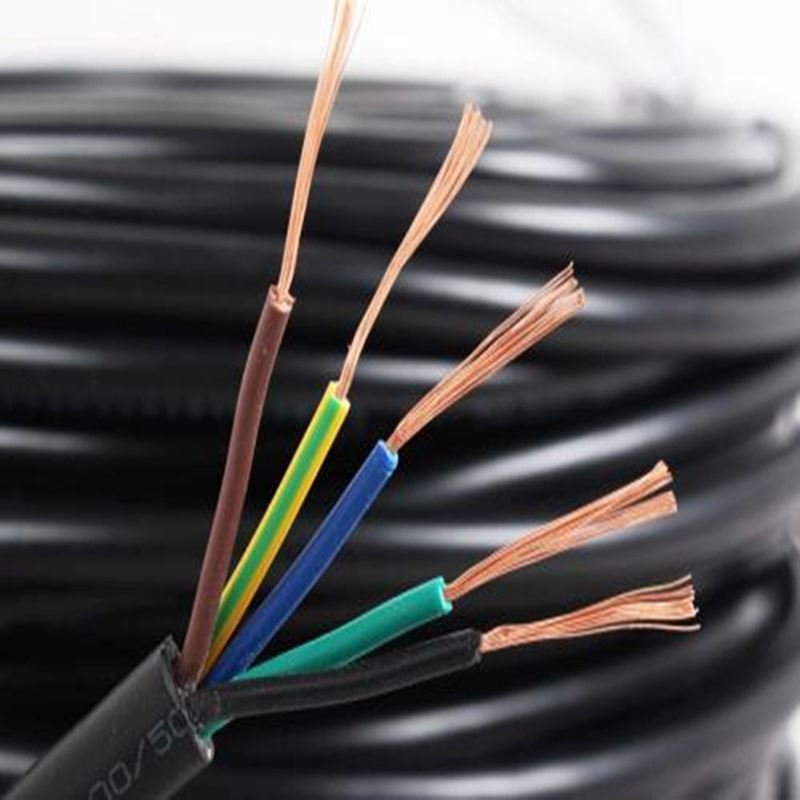

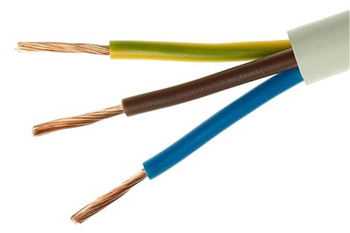

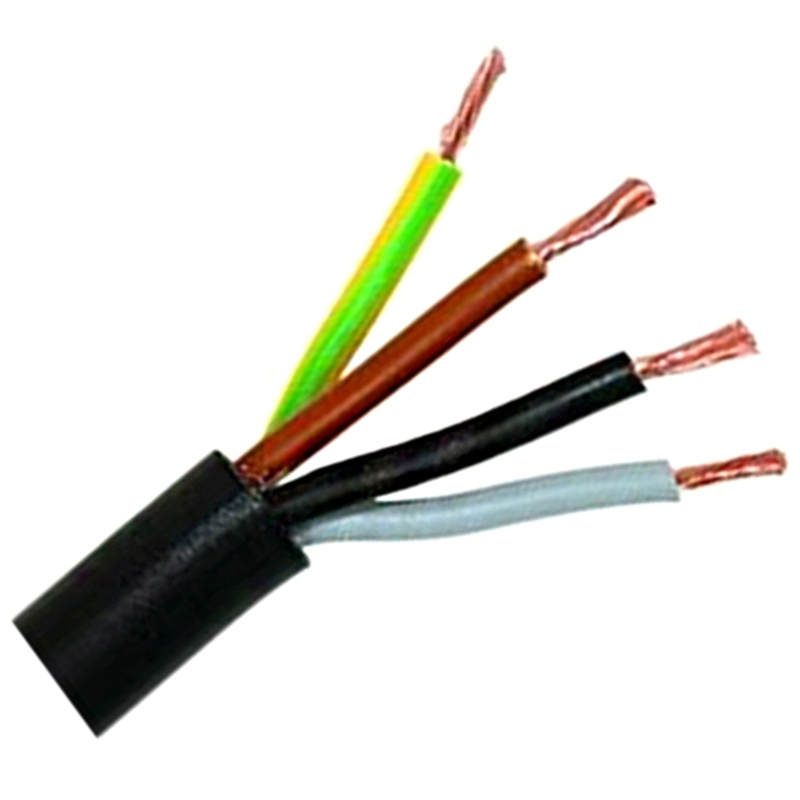

150 KG/KMH03VV-F H05VV-F 318-Y Flexible RVV Electrical Wires and Cables
MAIN KEYWORDS
RVV, flexible wire, VKF, 3182Y, 3183Y, 3184Y, 3185Y, H03VV-F, H05VV-F, H03V2V2-F, 60227IEC52, 60227IEC53, 60227IEC56, 60227IEC57.
APPLICATION CHARACTERISTICS
3183Y RVV flexible cable, H03VV-F: For mobile use. Use in domestic premises and offices, for light duty applications and appliances (ex. music centers, table and standard lamps, office machines). H05VV-F: For mobile use. Use in domestic premises and offices, for ordinary duty applications and household appliances, including in damp premises (ex. vacuum cleaners, washing machines, spin dryers and refrigerators). Used outdoor for temporary periods of short duration.
PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, strand class 5, flexible.
---Insulation Material (inner insulation)
Soft transparent PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Sheath Material (out insulation)
Soft transparent PVC (polyvinyl chloride)
---Sheath Colour
Black, white, orange, or others.
---Core Number
2 cores, 2C; 3 cores, 3C, 4 cores, 4C; 5 cores, 5C.
---Voltage Rate (U0/U)
2x0.5 mm2, 2x0.75 mm2, 3x0.5 mm2, 3x0.75 mm2: 300/300V
(2C~5C) x (0.75~4 mm2): 300/500V.
---Working Temperature
-15℃~+70℃.
---Minimum Bending Radius
Fixed: 6 x Out Diameter.
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227, BS 6500, TIS 11 part 5-2553.
---Products Delivery
Within 5-7 working days as soon as we received the deposit.
REMARK
---The above all information is only for
you reference, for the formal technical data, please refer to the actual goods.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the RVV flexible cable, according
to the practice, the common specification is 0.75~2.5 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
