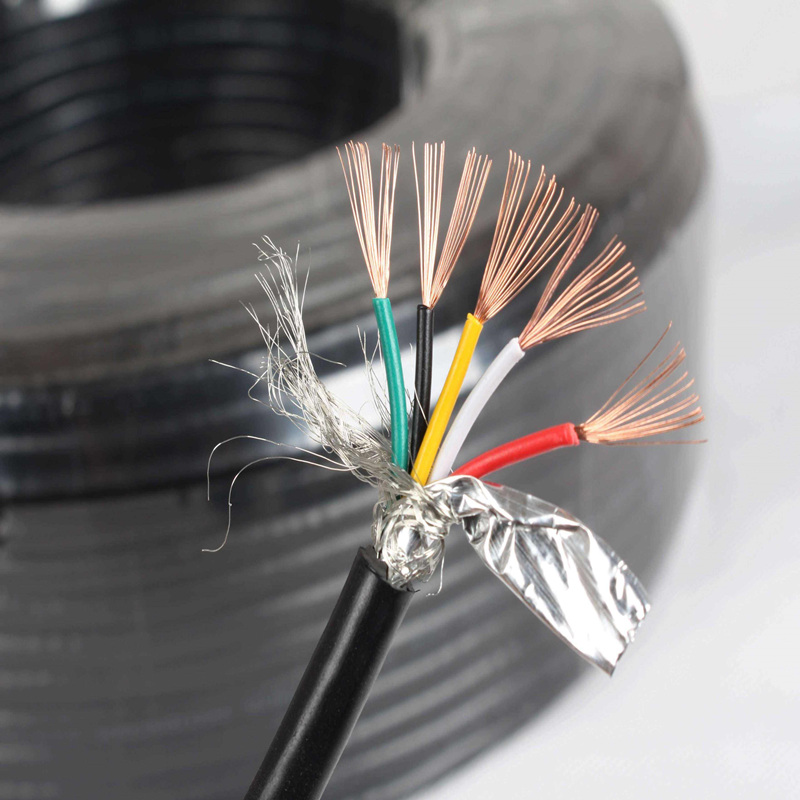

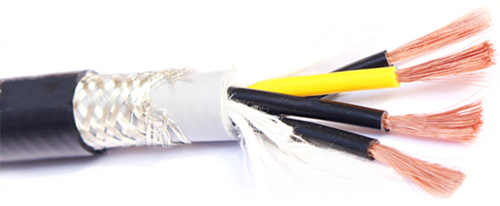

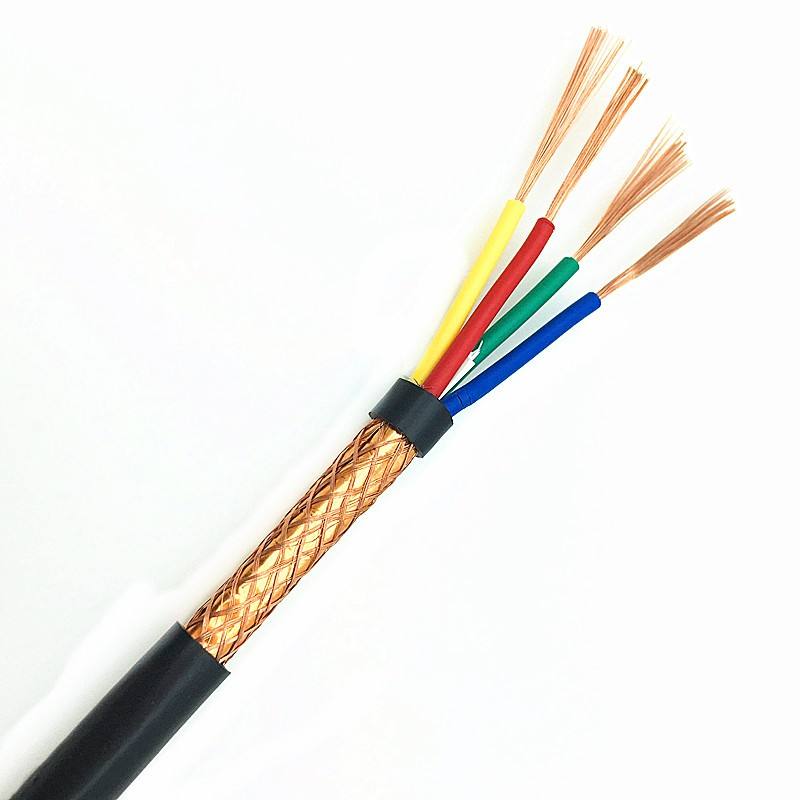

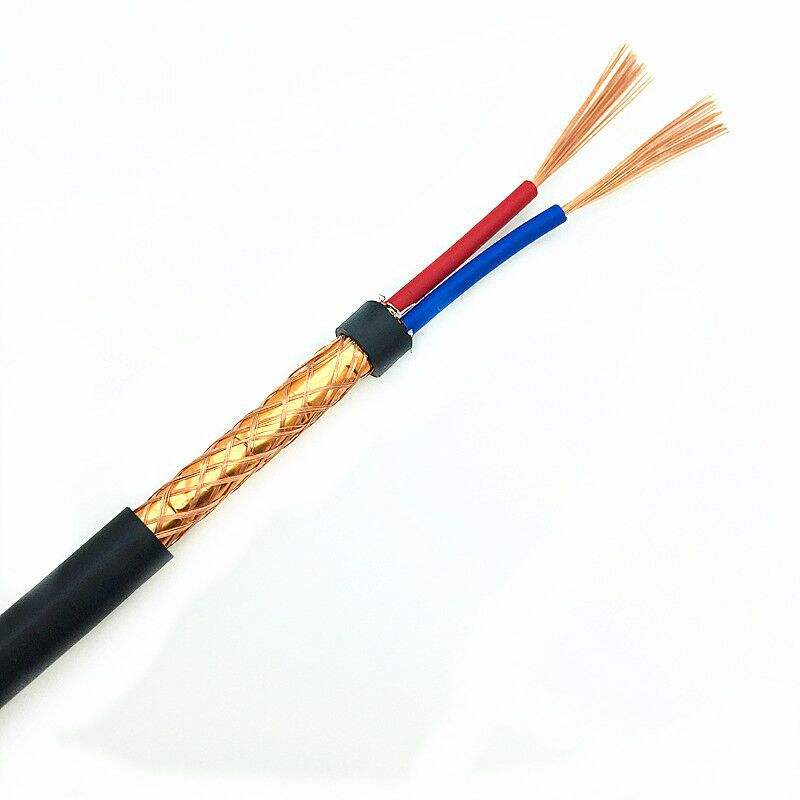

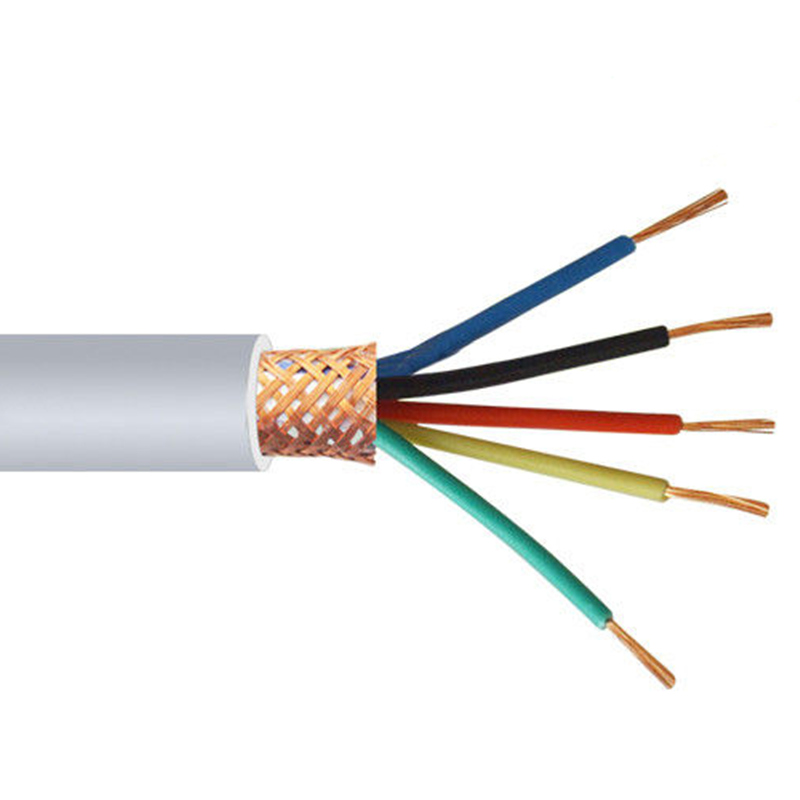

H05VVC4V5-F shielded Flexible PVC Insulated RVVP Electrical Cables, strand flexible copper wire, PVC insulation, copper wire or tinner copper wire braid shielded, aluminum foil screened, PVC sheath.
Brand:
ElectricaltechItem NO.:
XTD-RVVP-01Order(MOQ):
5000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.53Price:
$0.5/0.52 per meterProduct Origin:
Hubei Province, China.Color:
Black, white, grey, or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 7-10 working days as soon as we rWeight：
160 KG/KM
RVVP
Flexible PVC Insulated and Sheathed
MAIN KEYWORDS
RVVP, flexible shielded electrical wire, H05VVC4V5-F, screened PVC insulated flexible wire and cable.
APPLICATION CHARACTERISTICS
RVVP electrical wire and cable, the cable structurer includes flexible copper wire conductor, PVC insulation, copper or tinned copper wire braid shielded, aluminum foil screened, PVC Sheath. RVVP electrical wire and cable, suitable for communication, audio, broadcast, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire system, etc.
PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, strand class 5, flexible.
---Insulation Material (inner insulation)
Soft PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
7C or above: black insulation and marks white number, maybe has a earth wire of yellow/green.
Remark: we will choose other colors according to the customer request.
---Shielded Material (inner braided)
Pure copper wire, or tinned copper wire
---Screened Material (out cover)
Aluminum foil
---Inner Sheath (optional)
PVC (polyvinyl chloride)
---Sheath Material (out insulation)
Soft PVC (polyvinyl chloride)
---Sheath Colour
Black, white, or others.
---Core Number
2 cores, 2C; 3 cores, 3C, 4 cores, 4C; 5 cores, 5C；7 cores, 7C, 10 cores, 10C.
---Voltage Rate (U0/U)
300/300V, 300/500V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed: 8 x Out Diameter.
---Production Standard
JB/T 8734, GB/T 5023, IEC 60227, BS 6500.
---Products Delivery
Within 7-10 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the RVVP shielded flexible cable, according
to the practice, the common specification is 0.75～2.5 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
