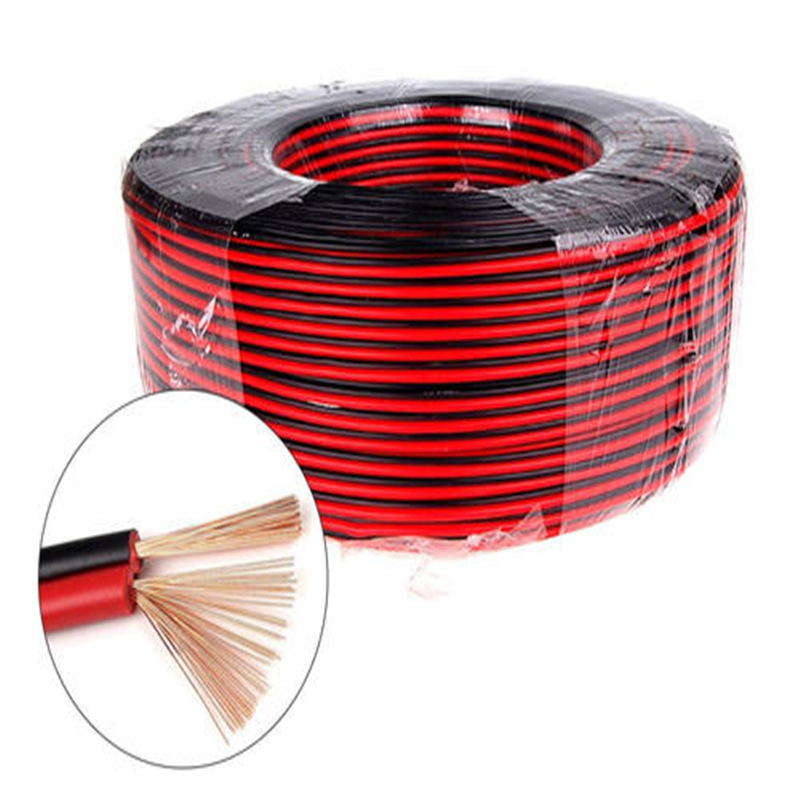

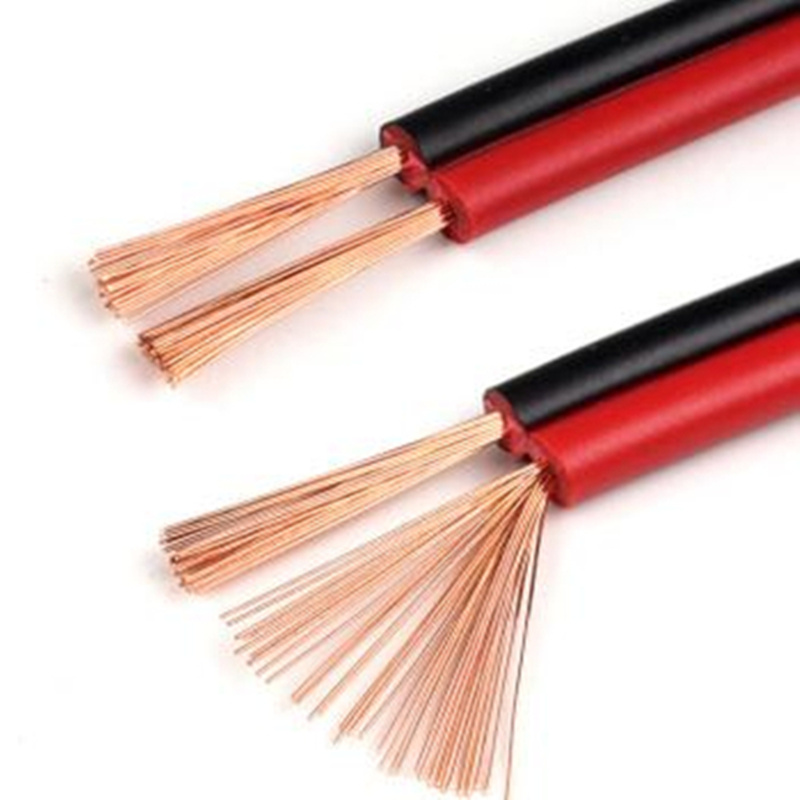

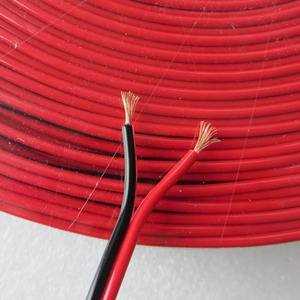

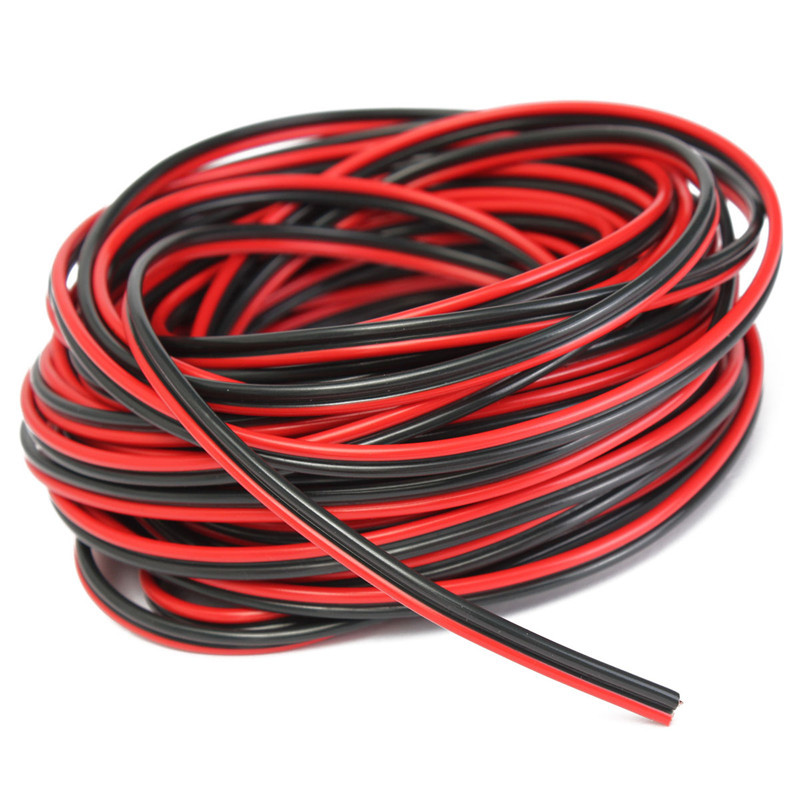

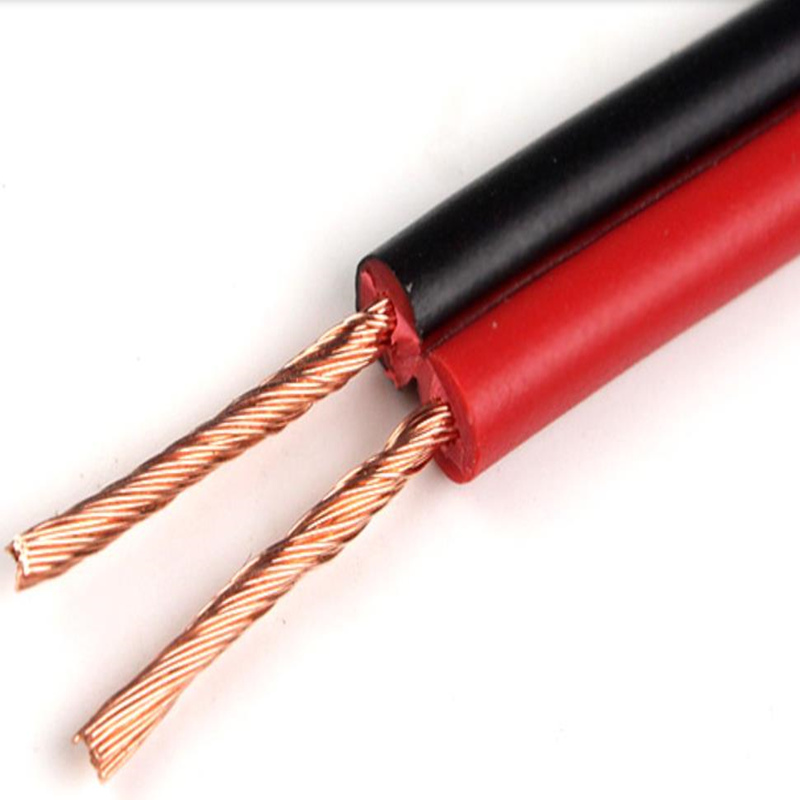

Flat-twin Flexible RVB PVC Insulated Electrical Wires

Flat-twin Flexible RVB PVC Insulated Electrical Wires and Cables

MAIN KEYWORDS

RVB, flat-twin flexible wire, red black wire, speaker cable, sound cable, FFC wire, flat flexible electronic wire, flat flexible non-sheath cable, H03VH-H, 60227IEC42.

APPLICATION CHARACTERISTICS

Flat-twin flexible RVB cable, highly flexible cable for dry areas, used for connection of small mobile devices, requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending, but it does not twisting. Suitable for radios, desk lamps, electric razors and similar household or office devices, as long as the cable is adapted to essential specifications of the device. Not suitable for cookers and hot devices. Fixed cable connection to the device or by means of a small plug. Cable’s ends must be provided with inseparable plugs additionally protected by rubber or thermoplastic insertion.

PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed copper wire, strand class 5, flexible.

---Insulation Material

   PVC (Polyvinyl chloride).

---Insulation Colour

   Red/black, or others.

---Sheath Material

   Non-Sheath

---Core Number

   2 cores, 2C.

---Voltage Rate (U₀/U)

   300/300V

---Working Temperature

   -15℃～+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T 8734, GB/T 5023, IEC 60227.

---Products Delivery

   Within 3-5 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for formal data, please refer to the actual products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The above all information is only for you reference, please refer to the actual goods.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process, materials and production standard maybe has a few of different.

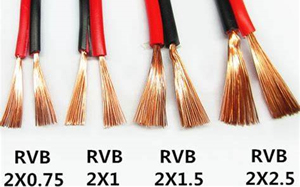

---For the Flat-twin Flexible RVB cable, according to the practice, the common specification is 0.75～2.5mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
