XLPE insulated PVC sheath aluminum alloy power cable is applicable for aluminum alloy conductor and sectional area from 16 mm2 to 400 mm2. The type of core conductor is ASTM Grade B compacted, stranded conductor, which comes to GB/T 19666-2019 flame retardant Grade C.
Aluminum alloy cable is in great compliance with GB/T 3956-2008, GB/T 12706-2020 and various standards of the latest editon of IEC 60502.
Aluminum alloy cable can be used widely on condition that there is no armored mechanical protection.They can be used for feeder lines such as in office building, hotels, shopping center and factory lighting,socket and other electrical equipment.
Aluminum alloy cable is applicable for using working temperature 90℃, XLPE insulation, and black PVC outer sheath.
Brand:
ElectricaltechItem NO.:
XTD-Special-07Order(MOQ):
3000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 10.88Price:
$8.88/9.99 per meterProduct Origin:
Hubei Province, China.Color:
Black.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 10-20 working days as soon as weWeight:

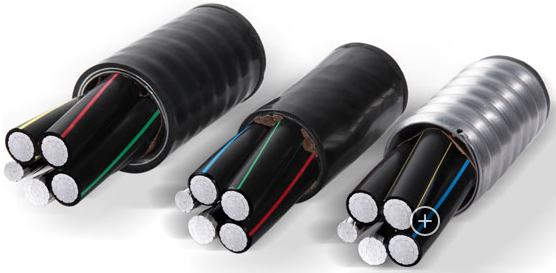

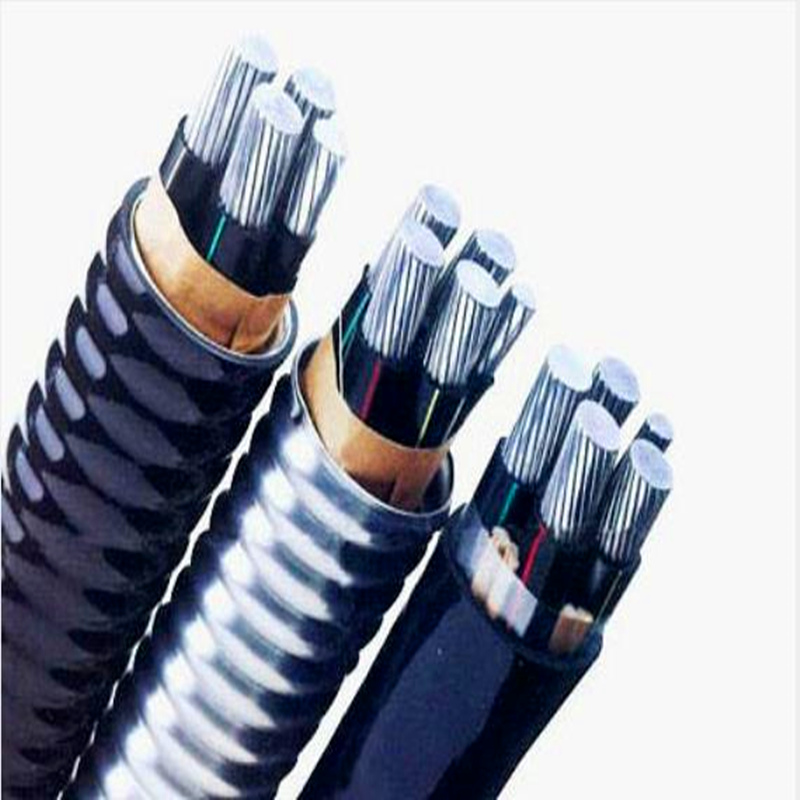

590 KG/KMXLPE insulated PVC sheath aluminum alloy power cable
MAIN KEYWORDS
Aluminum alloy power cable, AA8000 aluminum alloy power cables, YJLHV power cable, YJHLV power cable, YJHLV82 aluminum alloy cables, YJHLV (TC90) aluminum alloy cables, ZC-AC90 YJHLV aluminum alloy cable, ACWU90 YJHLV aluminum alloy cables.
PRODUCTS APPLICATION
XLPE insulated PVC sheath aluminum alloy power cable is applicable for aluminum alloy conductor and sectional area from 16 mm2 to 400 mm2. The type of core conductor is ASTM Grade B compacted, stranded conductor, which comes to GB/T 19666-2019 flame retardant Grade C.
Aluminum alloy cable is in great compliance with GB/T 3956-2008, GB/T 12706-2020 and various standards of the latest editon of IEC 60502.
Aluminum alloy cable can be used widely on condition that there is no armored mechanical protection.They can be used for feeder lines such as in office building, hotels, shopping center and factory lighting,socket and other electrical equipment. Aluminum alloy cable is applicable for using working temperature 90℃, XLPE insulation, and black PVC outer sheath.

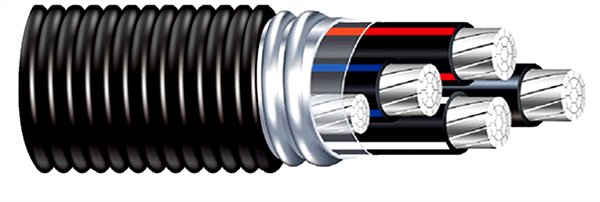

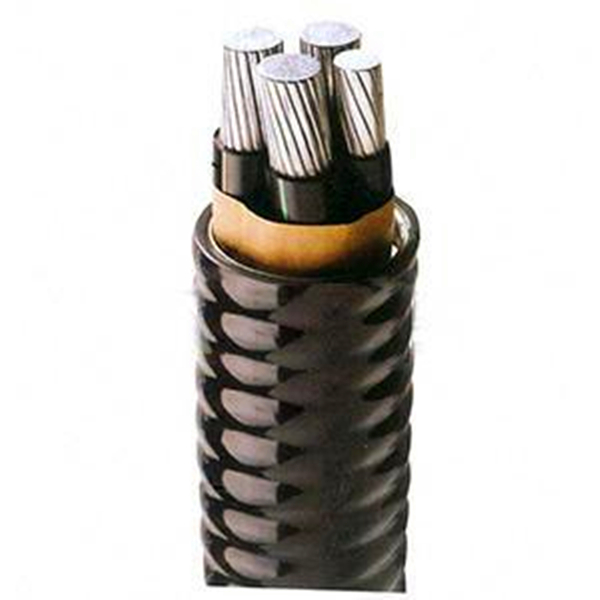

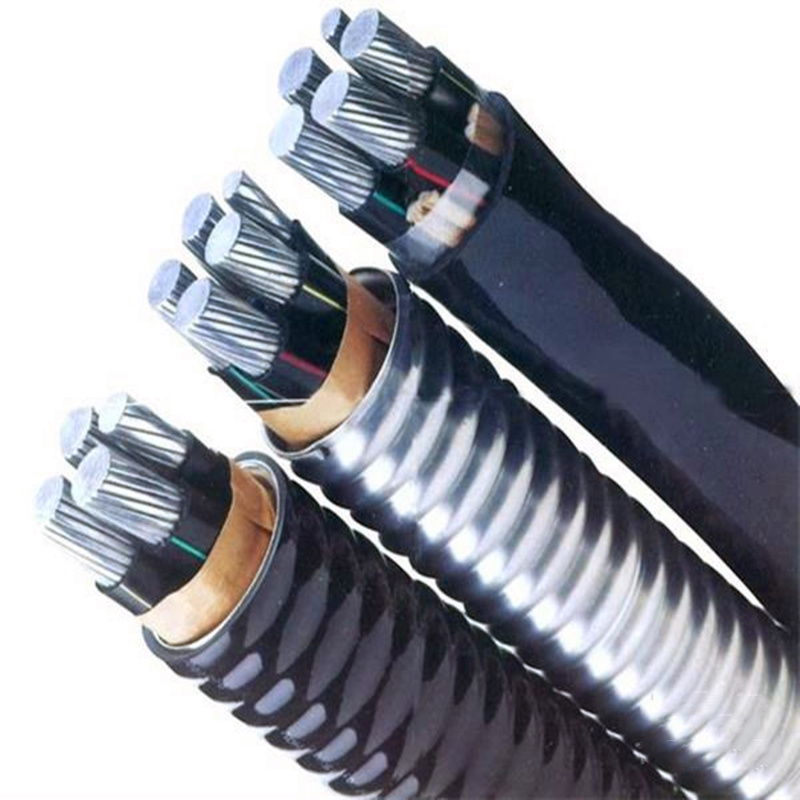

PRODUCTS CONFIGURATION
1. Shaped extruded aluminum alloy conductor.
2. Corrugated polyester tape wrapped.
3. Aluminum interlocking armoured sheath.
4. Flame retardant XLPE insulation.
5. PVC sheath.
6. 5000V and above using the outer shield.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, solid class 1, or strand class 2.
---Insulation Material (inner insulation)
XLPE (Cross-linked Polyethylene)
---PVC Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we can choose other colors according to the customer request.
---XLPE Insulation Colour
Natural color with colored PP tape
---Filler Material
Fiberglass tape, or PVC (Polyvinyl chloride).
---Inner Sheath (Cabling Material)
Aluminum interlocking armored sheath
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black
---Core Number
2~5 cores, 2C~5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃~+90℃.
---Minimum Bending Radius
Fixed: 12 x Out Diameter.
---Production Standard
GB/T 12706, GB/T 31840, IEC 60502, ASTM B-800.
---Products Delivery
Within 10-20 working days as soon as we received the deposit.
PRODUCTS CHARACTERISTICS
---Max. Conductor Working Temperature
+90℃
---Max. Short-circuit Temperature
Shall not exceed +250℃ (5 seconds max. duration)
---Installation Temperature
Ambient temperature under installation shall not be below 0℃.
---Min. Bending Radius
The bending radius of cable (D-Diameter of cable) : ≥7D
REMARK
---The above information is only for you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
