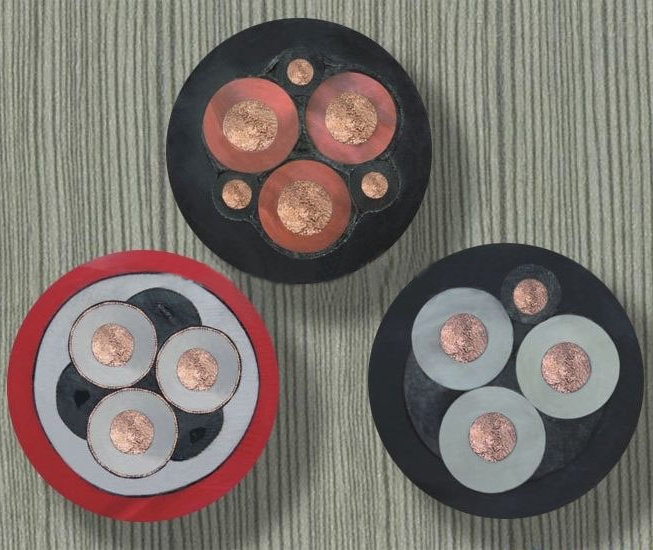

Frequency Conversion Cable

The frequency Conversion Cable is the connecting line between the power supply and the variable frequency motor, and is also the wire for transmitting electric energy.

Brand:
Electricaltech
Item NO.:
XTD-Special-09
Order(MOQ):
200 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 46.88
Price:
$36.66/42.55 per meter
Product Origin:
Hubei Province, China.
Color:
Black or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 15-20 working days as soon as we
Weight：
3680 KG/KM

Inquiry now

Product Detail

Frequency Conversion Cable

MAIN KEYWORDS

Frequency Conversion Cable, frequency transformer cable, Special cables for frequency converter.

APPLICATION CHARACTERISTICS

The Frequency Conversion Cable is mainly used for the connection between the frequency conversion power supply and the variable frequency motor, as well as in the power transmission and distribution lines with the rated voltage of 1kV and below. It can keep the frequency converter in normal operation without electromagnetic interference, It is especially suitable for electric power, environmental protection, petroleum, chemical industry, coal mine, railway, pharmacy, mining equipment, metallurgy and steel, network communication, equipment manufacturing, paper industry and other industries.

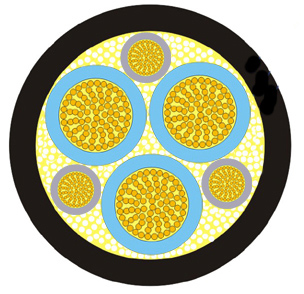

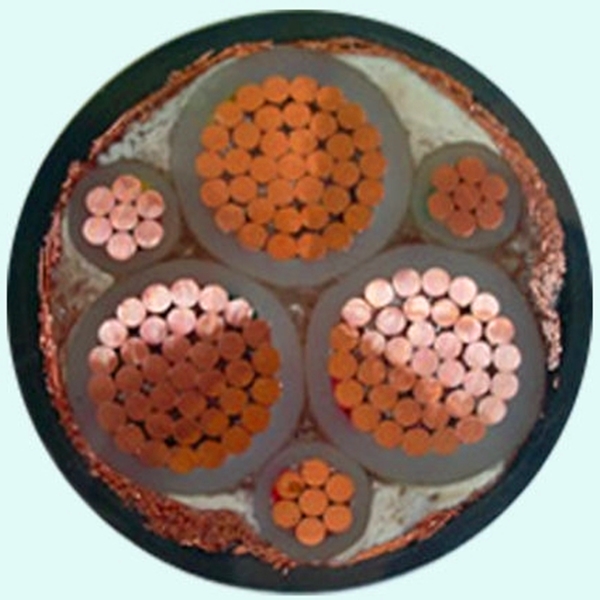

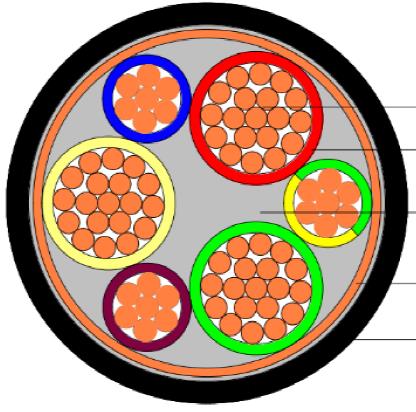

PRODUCTS STRUCTURE

---Conductor Material

Pure annealed copper wire, strand class 2, or flexible class 5.

---Insulation Material

XLPE (cross-linked polyethylene).

---Insulation Color

1C: brown, blue, red, yellow, green, black, or others.

2C: brown, blue

3C: brown, blue, yellow/green

4C: brown, blue, black, yellow/green,

5C: brown, blue, black, grey, yellow/green

6C: brown, blue, black, grey, white, yellow/green

Remark: the insulated color is nature, then it with a colored tape.

---Filler Material

PP tape or Fiberglass tape.

---Inner Sheath Material (optional)

Black PVC (polyvinyl chloride)

---Cabling Material

Non-woven fabrics

---Out Sheath Material

PVC (polyvinyl chloride)

---Out Sheath Color

Black, or others.

---Core Number

3+3 cores or 3+1 cores.

---Voltage Rate (U₀/U)

0.6/1kV, 600/1000V (U_m: 1.2kV).

---Working Temperature

-15℃～+90℃.

---Minimum Bending Radius

Fixed: 20 x Out Diameter.

---Production Standard

GB/T 12706, IEC 60502, BS 7889.

---Products Delivery

Within 10-15 working days as soon as we received the deposit.

PRODUCTS TYPE

BP-YJVTP2, ZR-BP-YJVTP2，BP-YJVP12R，BP-ZR-YJVP12R, BP-YJVPX12R, ZR-BP-YJVPX12R, WDZN-BP-YJEP,

WDZ-BP-YJEP₂, WDZ-BP-YJEP_2-22.

Symbol Instruction:

BP -- Frequency Conversion Cables.

YJ -- Insulation material, it mean is XLPE (cross-linked polyethylene)

V -- Out sheath material, it mean is polyvinyl chloride.

Y or E -- Out sheath material, "Y" is polyethylene; "E" is polyclinic.

ZR -- Flame retardant, fire retardant

NH -- Fire resistant

WDZ -- Low Smoking Zero Halogen

TP2 -- Concentric conductor + copper tape shielding

P12 -- Copper tape shielding + copper wire braiding double shielding

PX12 -- Copper tape shielding + tinned copper wire braiding double shielding

P -- Copper wire braided shielding

P₁ -- Tinned copper wire shielding

P₂ -- copper plastic composite tape shielding

P₃ -- Aluminum plastic composite tape wrapping shielding

P_2-22 -- Copper plastic composite tape shielding + steel tape armored + PVC out sheath.

P_2-32 -- Copper plastic composite tape shielding + steel wire armored + PVC out sheath.

PRODUCTS CHARACTERISTICS

1. The Frequency Conversion Cable, the conductor is plain annealed copper wires, strand Class 2 or flexible class 5, it meets to GB/T 3956-2008 or IEC 60228.
2. XLPE (Cross linked polyethylene) insulation has good temperature and weather resistance.
3. Low transmission impedance, good electromagnetic compatibility.
4. Low operating capacitance.
5. Good anti-interference and low radiation performance.
6. Symmetrical three core cable structure design has better transmission performance than four core cable.

PRODUCTS INSTALLATION

1. Voltage Rated: U0/U: 0.6/1kV.
2. The maximum allowable temperature of cable conductor is 90 ℃ for a long time and 250 ℃ for short circuit.
3. The ambient temperature for installation and laying shall not be lower than 0 ℃, and that for fixed laying shall not be lower than - 10℃.
4. The minimum allowable bending radius of cable is not less than 15D (d-cable outer diameter, mm).

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe has a few of different.

---For the YJV power cable, according to the practice, the common specification is 50～300 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
