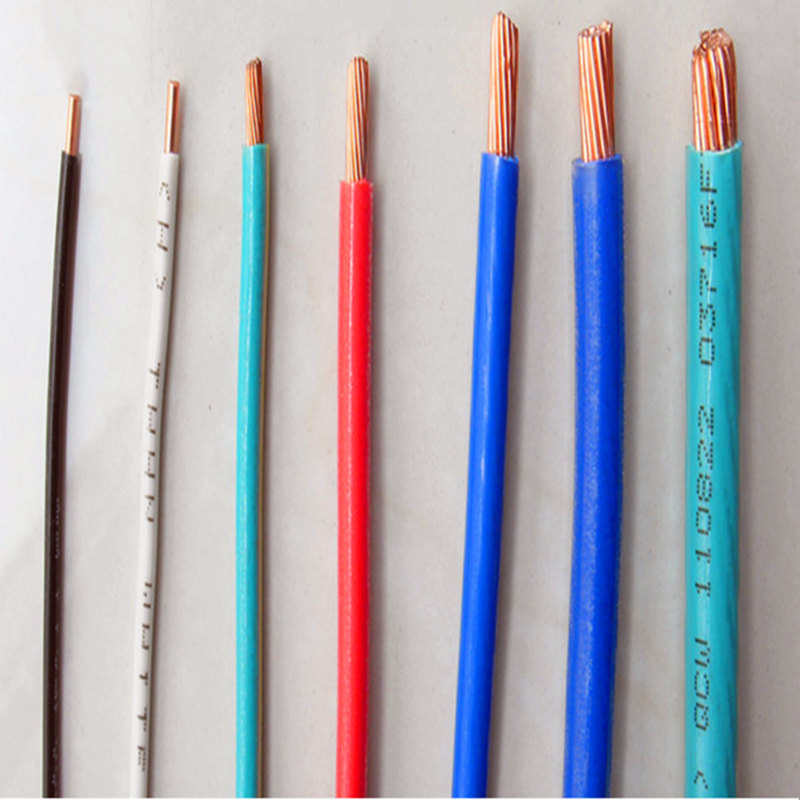

THHN THWN PVC insulated nylon electrical wires, conductors are approved for use at a maximum voltage of 600V and a maximum conductor temperature of 90 °C in wet or dry locations and 75 °C when exposed to gasoline and oil.
Brand:
ElectricaltechItem NO.:
XTD--Special-08Order(MOQ):
10000 metersPayment:
T/T in advanced.Market Price:
$/M 0.25Price:
$0.2/0.22Product Origin:
Hubei, China.Color:
Red yellow blue green black yellow/green orShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 5-7 working days since we receiveWeight：

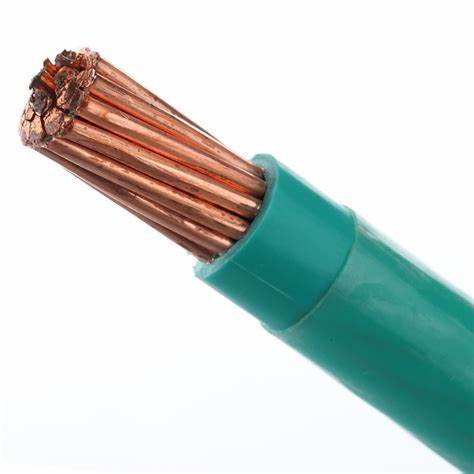

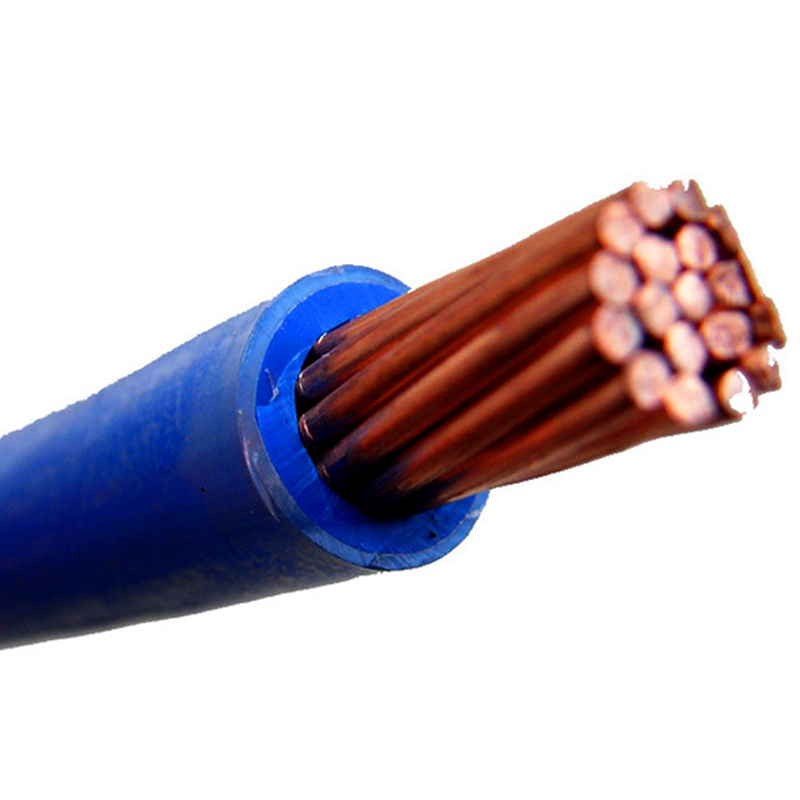

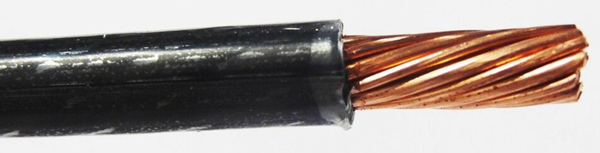

50 KG/KMTHHN THWN PVC Insulated Nylon Sheathed Electrical Wires
PRODUCTS KEY-WORDS
THHN cable, THWN cable, THWN-2 electrical wire, nylon wire and cables, PVC insulated nylon sheath electric cables, UL 83 listed nylon cables
APPLICATION SELLING-POINT
THHN THWN THWN-2 are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. THHN is rated at a conductor temperature of 90℃ dry, THWN is rated at a conductor temperature of 75℃ dry or wet, THWN-2 is rated at a conductor temperature of 90℃ dry or wet, they are permitted for 600V application.

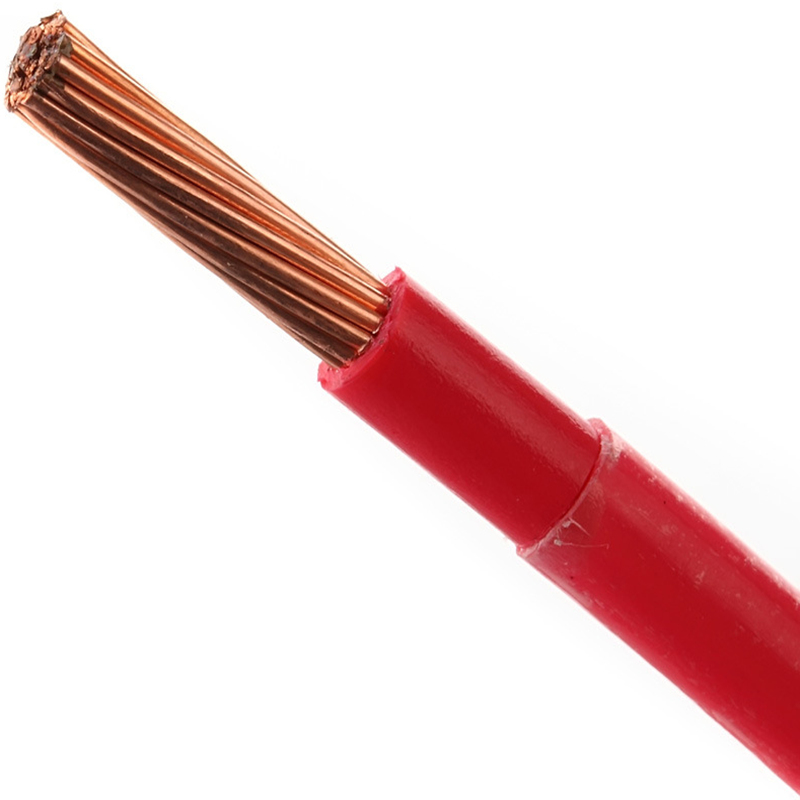

Construction: annealed un-coated copper conductor, PVC insulation,
nylon jacket, surface printed.
PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid, class 1; strand, class 2.
---Insulation Material
PVC (Polyvinyl chloride).
---Insulation Color

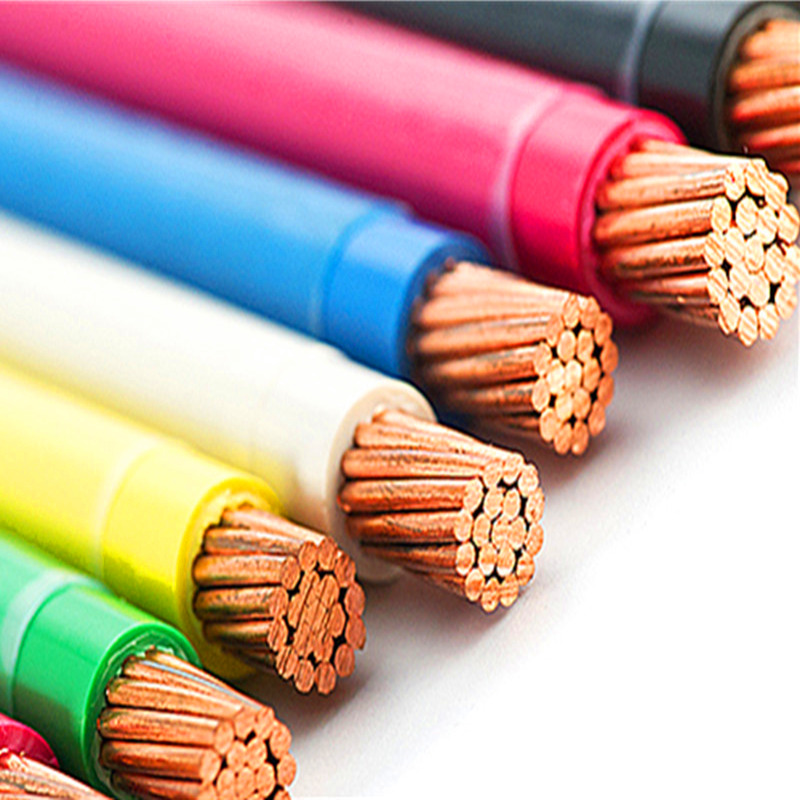

Red, yellow, blue, green, black, brown, yellow/green, and other colors.
---Sheath Material
Nylon
---Core Number
Single core, 1C.
---Voltage Rate (U0/U)
600V.
---Working Temperature
-15℃～+70℃ (THWN), THWN-2: 90℃.
---Minimum Bending Radius
Up to 10 mm²: 3 x O.D.; 10 mm² to 25mm²: 4 x O.D.; Above 25 mm²: 5 x O.D.
---Production Standard
UL 83, type THHN Wire 90°C in dry locations, type THWN Wire 75°C in wet locations.
---Product Packing
100 meters each roll, reel, plastic reel, wooden pallet, wooden drum, or others.
---Product MOQ
≥10000 meters.
---Product Delivery
Within 5-7 working days as soon as we received the deposit.
REMARK
---The above information is for reference only, please refer to the exact technical parameters according to the actual product.
---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE

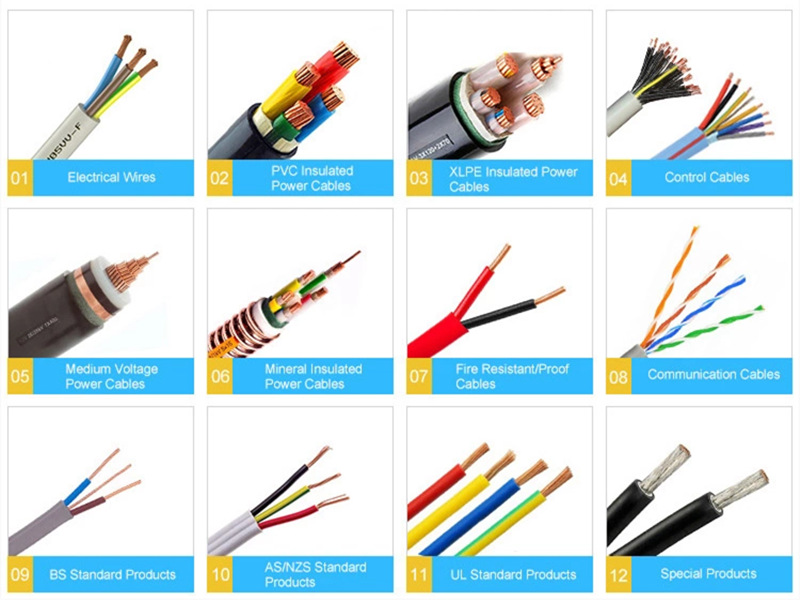

HOT-SELLING PRODUCTS
RAW MATERIAL

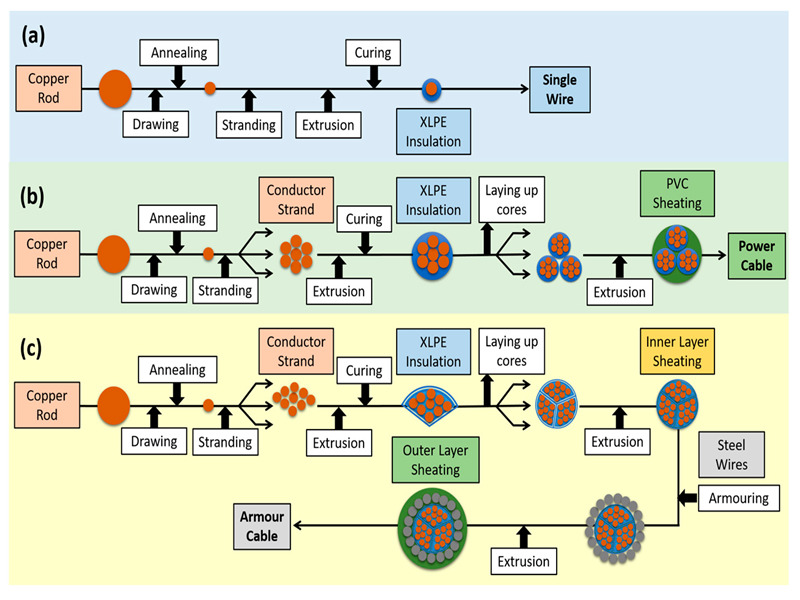

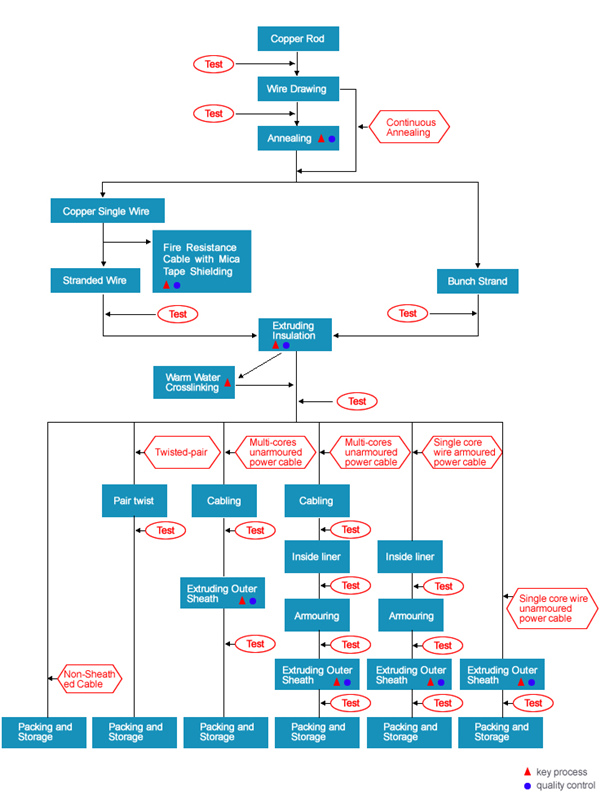

PRODUCTION PROCESS
