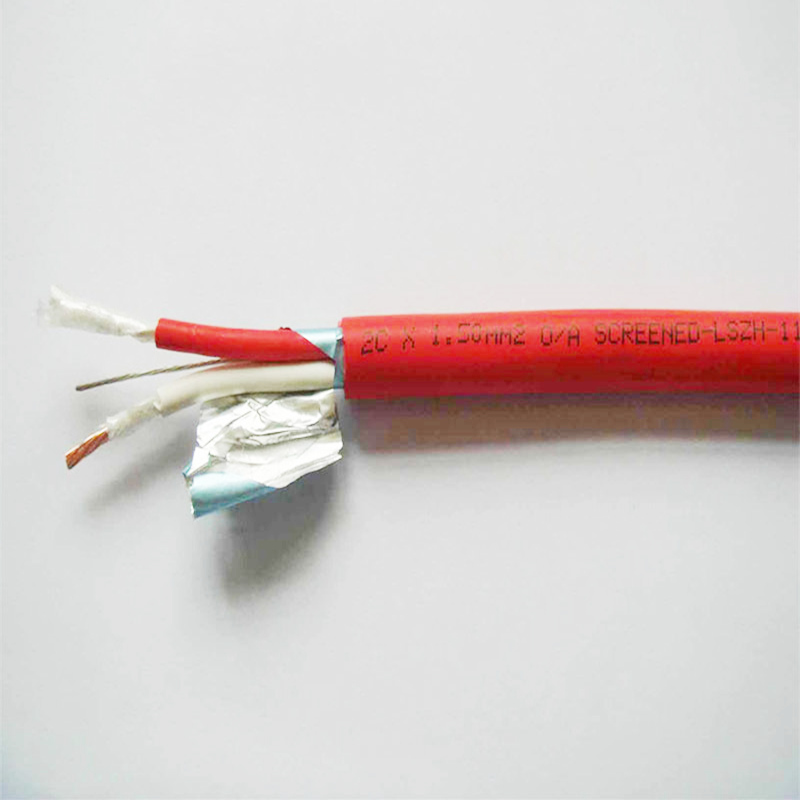

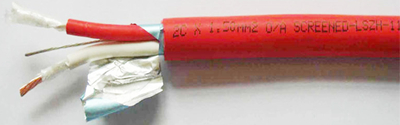

AS/NZS 3013 Fire rated LSZH Insulated and Sheathed Electrical Cable, AS/NZS 5000.1, 110℃ working temperature, WS52W, LSZH, Flame retardant, insulation and sheath will be irradiated cross-linked.
Brand:
ElectricaltechItem NO.:
XTD--Special-01Order(MOQ):
5000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 3.88Price:
$3.28/3.68Product Origin:
Hubei, China.Color:
red or orangeShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 7-10 working days as soon as we rWeight：
58 KG/KMAS/NZS3013 Fire rated LSZH insulated and sheathed electrical cable
PRODUCTS KEYWORDS
Fire
rated cable, fire resistant cable, irradiation cross-linking LSZH electric cable, fire rated cable,
APPLICATION CHARACTERISTICS
AS/NZS 3013 Fire rated LSZH Insulated and Sheathed Electrical Cable, AS/NZS 5000.1, 110℃ working temperature, WS52W, LSZH, Flame retardant, insulation and sheath will be irradiated cross-linked. AS/NZS 3013 Fire rated LSZH Insulated and Sheathed Electrical Cable, have been specifically designed for use within the fire alarm and mechanical/electrical industries. The Cables are constructed from the highest quality cross linked polymers available and are designed to be easy to install, strip and terminate.

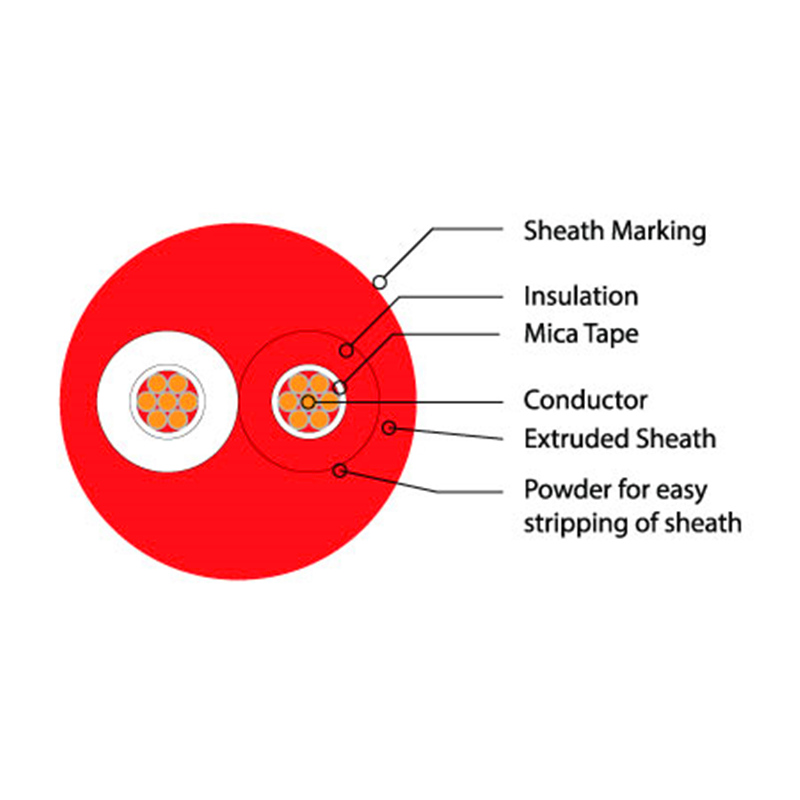

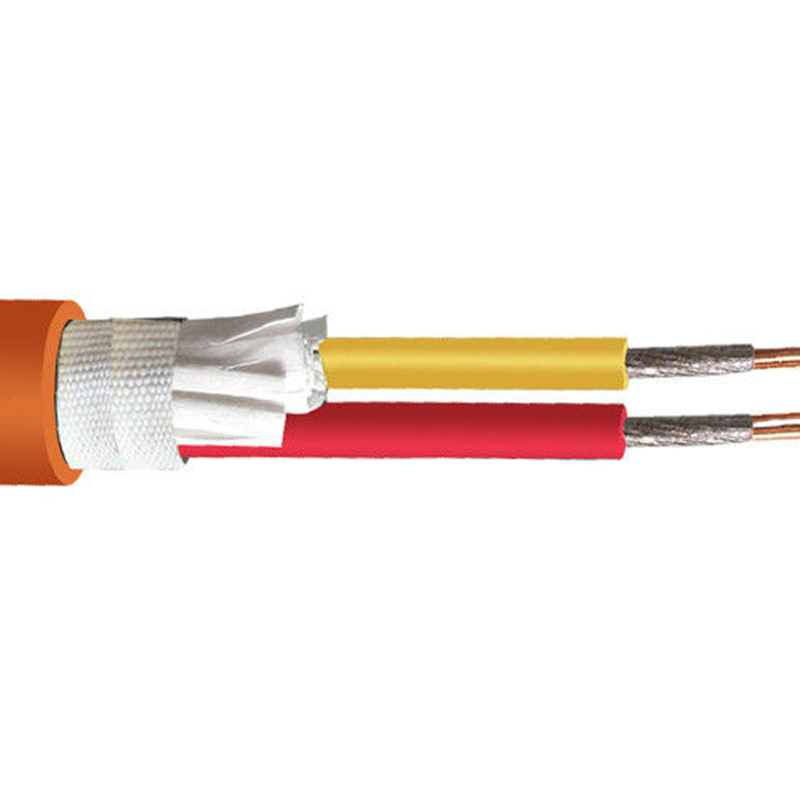

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, strand class 2.
---Fire Resistant Material
MICA tape
---Insulation Material
Flame Retardant, low smoking zero halogen, irradiation cross-linking is optioned.
---Insulation Color
Red & white, red & black
---Shielded Material
Bare or tinned copper wire braid, it has the function of earth wire.
---Screened Material
Aluminum foil
---Sheath Material
Flame Retardant, low smoking zero halogen, irradiation cross-linking is optioned.
---Core Number
2C, 2 cores with earth wire.
---Product Range
2.5～6 mm2
---Voltage Rate (U0/U)
0.6/1kV
---Working Temperature
-25℃～+110℃.
---Minimum Bending Radius
10 x cable out diameter
---Production Standard
AS/NZS 3013, AS/NZS 5000.1, IEC 60332
---Product Packing

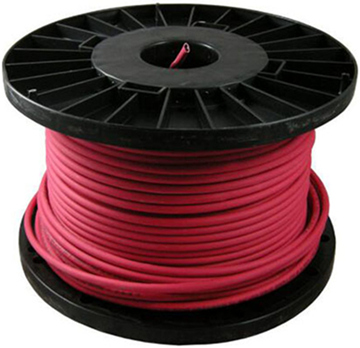

100 meters per roll, plastic reel, wooden pallet, wooden drum, or others
---Product MOQ
5000 meters.
---Production Delivery
Within 10-15 working days as soon as we received the deposit.
REMARK
---The
above information is only for you reference, the formal data, please refer the actual
product testing.
---Electricaltech
cable are manufactured using 100% pure, annealed, 7 strand copper conductors
for ease of termination while achieving the highest possible electrical
performance. Highly specialized insulation and outer sheath materials meet the
stringent impact and cutting test requirements of AS/NZS 3013.
---Electricaltech
cable 2C+E cables have 2.5 mm2, 4.0 mm2 and 6.0 mm2 conductors and are ideal
for powering panels, diesel pump control panels, centralized emergency lighting
system or any other 240V AC essential service equipment & devices.
---Fire
rated cable is used for fixing cable to tray every 1.0 meter when mounted
horizontal and every 0.6 meter when mounted vertically.
---When
you install fire rated cable, if cable bunch is ≥ 25 mm diameter cables should
be supported with Stainless Steel ties every 300 mm; if cable bunch is < 25
mm diameter cables should be supported with Stainless Steel ties every 600 mm.
---The
OEM or OBM service will be accepted, but the customer should be provided the
authorization letter to us in advance, and the authorization letter must be true
and valid.
---Electricaltech
Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost
Service.
