RE-2X(st)H electric cable, plain annealed copper wire conductor, XLPE insulation, aluminium/polyester tape screen, tinned copper wire shield, LSZH sheath, IEC 60331, BS EN 50288-7, BS EN 50288-1.
Brand:
ElectricaltechItem NO.:
XTD-LSZH-05Order(MOQ):
3000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 7.89Price:
$6.88/7.66 per meterProduct Origin:
Hubei Province, China.Color:
Black blue or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 7-10 working days as soon as weWeight:
268 KG/KM

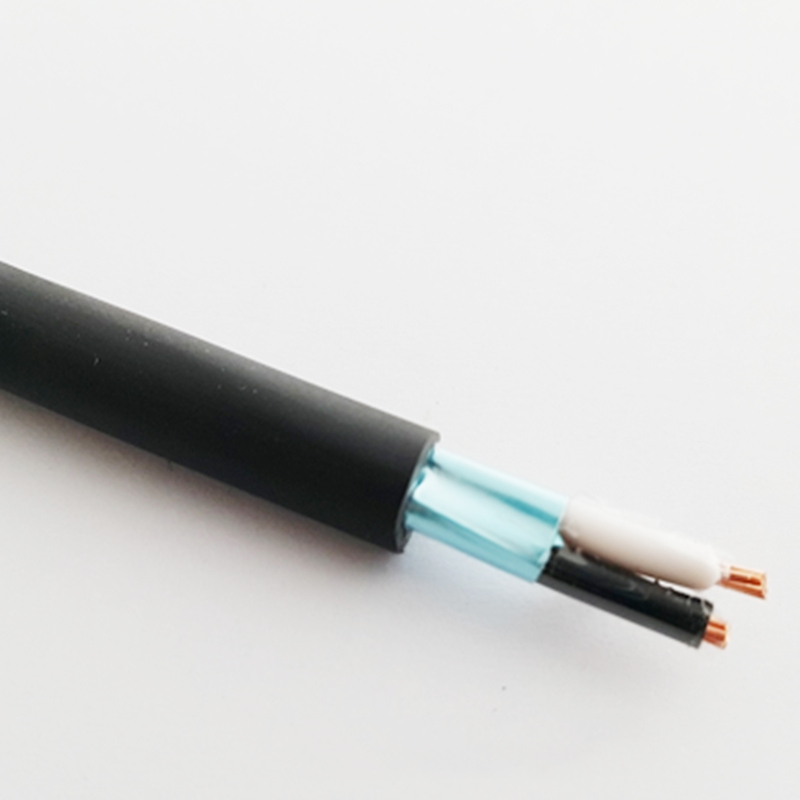

RE-2X(st)H XLPE insulated shielded LSZH sheath electric cable
MAIN KEYWORDS
RE-2X(st)H cable, BS EN 50288-7 cable, LSZH electric cable.
PRODUCTS APPLICATION
Electricaltech@ brand RE-2X(st)H XLPE insulated shielded LSZH sheath electric cable, these cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
These cables are designed to connect electrical instrument circuits and provide
communication services in and around process plant (e.g. Petrochemical industry etc.). Not
suitable for direct buried application

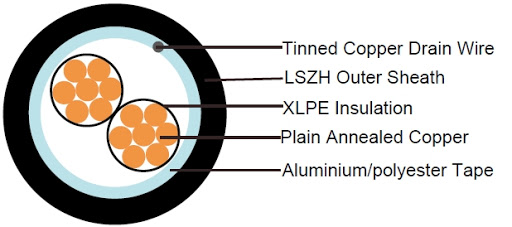

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, strand class 2.
---Insulated Material
XLPE (Cross-Linked Polyethylene)
---Insulated Color
1 core: natural color
2 cores: blue, brown & bare earth.
3 cores: brown, black, grey & bare earth.
4 cores: blue, brown, black, grey.
Pairs: white, black.
Numbered triples: white, black, red.
---Collective Screen Material
Al/PET (Aluminium/Polyester Tape)
---Drain Wire Material
Tinned copper
---Sheath Material
LSZH (low smoke zero halogen)
PVC (Polyvinyl Chloride)
---Sheath Color
Black, blue, or others.
---Voltage Rate
300/500V, 450/750V.
---Operating Temperature
Fixed: -40°C to +80°C
Flexed: 0°C to +50°C
---Minimum Bending Radius
6 x overall diameter
---Production Standard
BS EN 50288-7, BS EN 50288-1, HD383
---Flame Retardant Standard
BS EN/IEC 60332-1-2, BS EN /IEC 60332-3-24
---Production Delivery
Within 7-10 working days as soon as we received the 30% deposit before the shipment.
---Packing Type
100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.
REMARK
---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.
---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
