BS 5308 Part 1 Type 1 Fire Resistant Cable, plain annealed copper wire conductor, XLPE insulation, MICA tape fire resistant material, AL or PET shield screen, tinned copper drain wire, LSZH compound sheath, 300/500V, BS 5308 part 1 type 1.
Brand:
ElectricaltechItem NO.:
XTD-LSZH-06Order(MOQ):
3000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 8.26Price:
$7.88/8.00 per meterProduct Origin:
Hubei Province, China.Color:
Black red blue orange or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 7-10 working days as soon as weWeight:
188 KG/KM

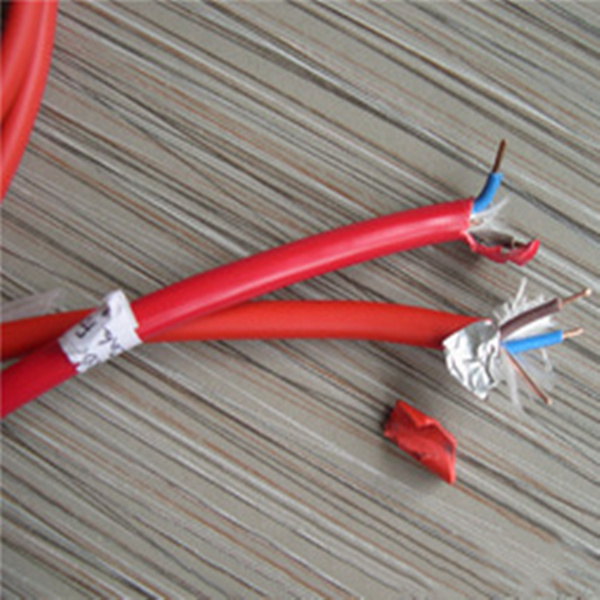

BS 5308 Part 1 Type 1 Fire Resistant Cable
MAIN KEYWORDS
BS 5308 part 1 electric cable, MICA tape fire resistant cable, xlpe insulated electrical cable, CAM fire resistant cable, LSZH electric cable, MICA/XLPE/CAM/LSZH Fire Resistant Cable .
PRODUCTS APPLICATION
Electricaltech@ brand BS 5308 Part 1 Type 1 Fire Resistant Cable, BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice types and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Suitable for fire resistant installations.

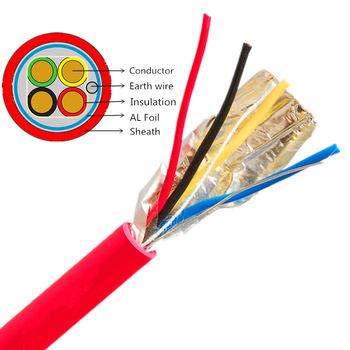

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, meet to IEC 60228.
---Fire Resistant Material
MICA tape
---Insulated Material
XLPE (cross-linked polyethylene)
---Insulated Color
1 core: natural color
2 cores: blue, brown & bare earth.
3 cores: brown, black, grey & bare earth.
4 cores: blue, brown, black, grey.
---Shielded / Screened Material
Al/PET (Aluminium/Polyester Tape)
---Drain Wire Material
Tinned copper wire
---Sheath Material
LSZH (low smoke zero halogen)
---Sheath Color
Black, red, blue, orange, or others.
---Voltage Rate
300/500V
---Operating Temperature
Fixed: -40ºC to +80ºC
Flexed: 0ºC to +50ºC
---Minimum Bending Radius
6 x overall diameter
---Production Standard
BS 5308 part 1 type 1, IEC 60331, UL 94 CAM class.
---Production Delivery
Within 7-10 working days as soon as we received the 30% deposit before the shipment.
---Packing Type
100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.
REMARK
---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.
---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
---Electricaltech Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.
