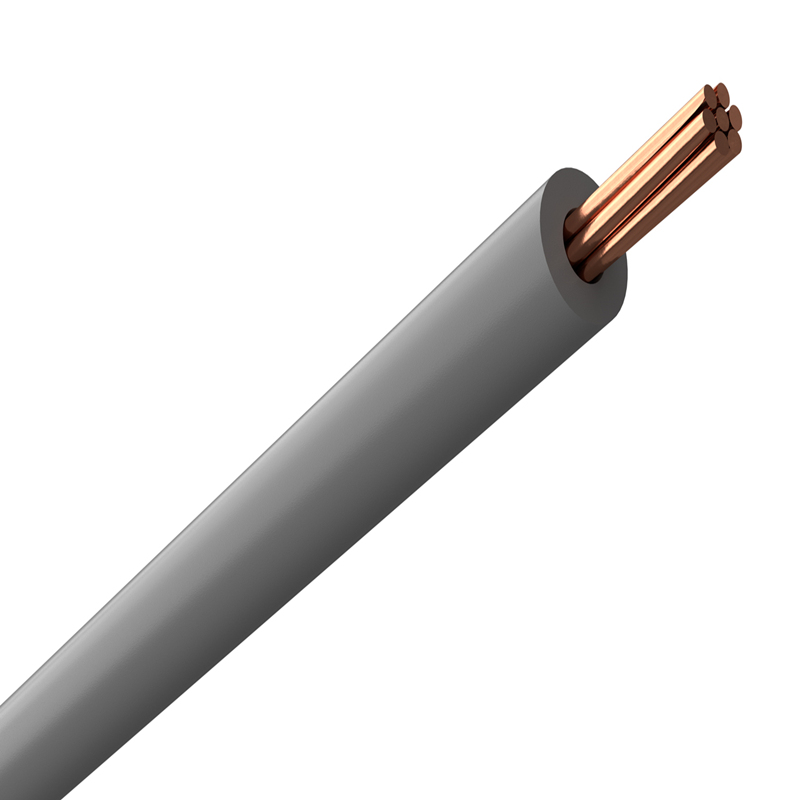

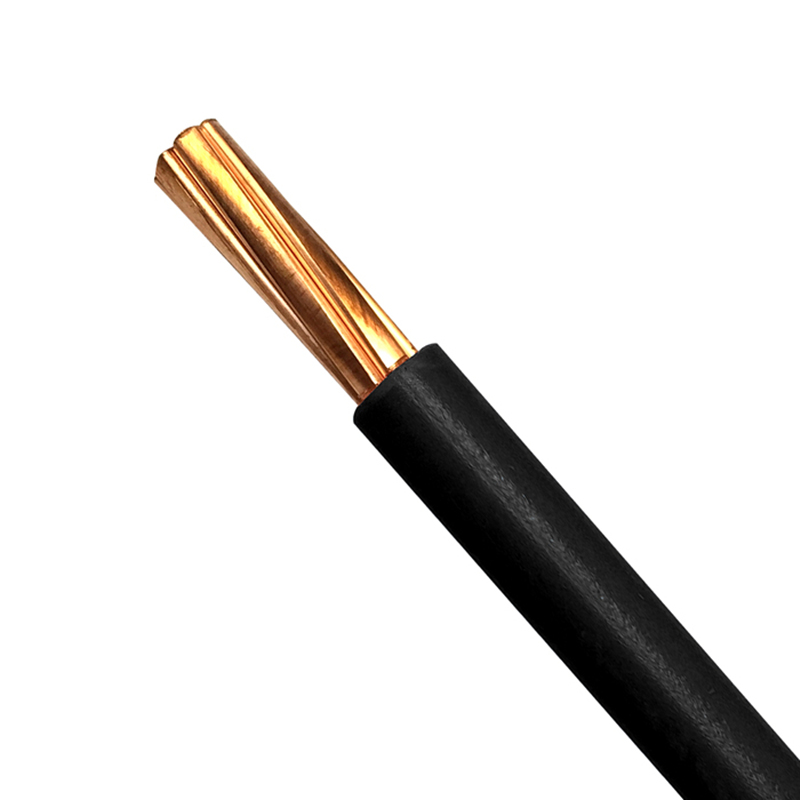

H05Z-R H07Z-R Single Core Stranded Copper LSZH Insulated WDZ-BYJ Electrical Wires

H05Z-R H07Z-R Single Core LSZH Insulated WDZ-BYJ Electrical Wires

PRODUCTS KEYWORDS

H05Z-R, H07Z-R, WDZ-BYJ, WDZ-BYJR, 6491B, LSZH electrical wire, low smoking zero halogen building wire,

stranded copper LSZH wire, environmental protection electrical wires.

APPLICATION SELLING-POINT

H05Z-R H07Z-R 6491B WDZ-BYJ single core stranded copper LSZH insulated non-sheath electrical Wires.

Most suited for use in conduit and for fixed protection installation. They can be used in lighting installations, switch and control gear and also in appliances. The low smoke zero halogen outer sheath is ideal in applications where fire, smoke, emissions and toxic fumes would create a potential threat.

LSZH stands for Low Smoke Zero Halogen and describes a cable jacket material that is non-halogen and flame retardant.This type of jacket material has excellent fire safety characteristics of low smoke, low toxicity and low corrosion.This type of cable jacket material is used in applications such as Central Offices, Mass Transit Rail Systems, Nuclear Plants and Oil Refineries or in any other application where the protection of people and equipment from toxic and corrosive gasses is critical.

PRODUCTS STRUCTURE

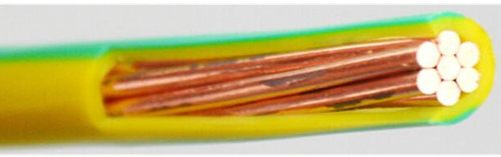

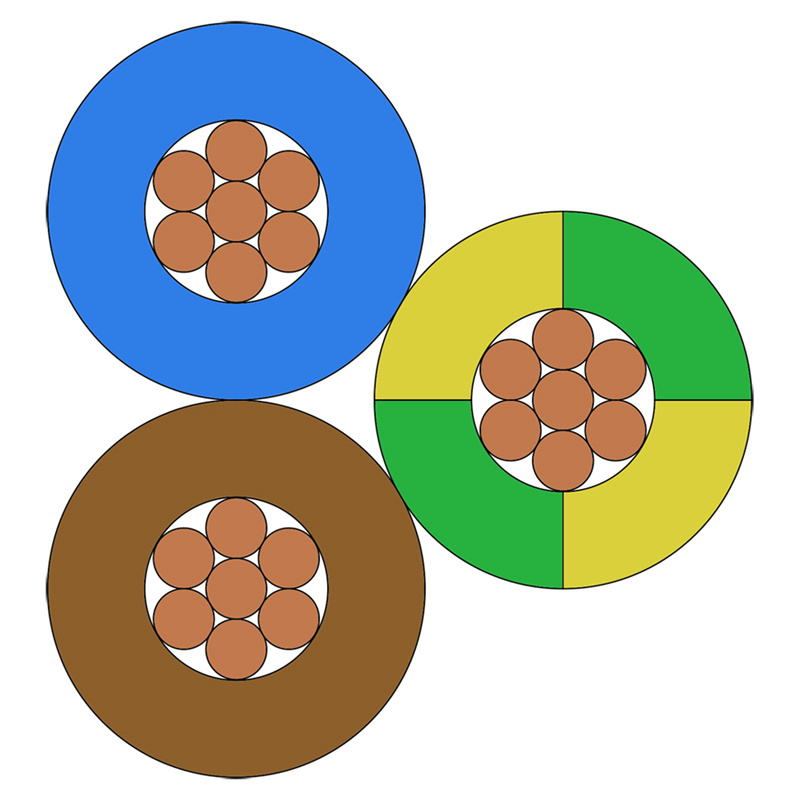

---Conductor Material

   Pure annealed copper, strand, class 2.

---Insulation Material

   LSZH (low smoking zero halogen)

---Insulation Color

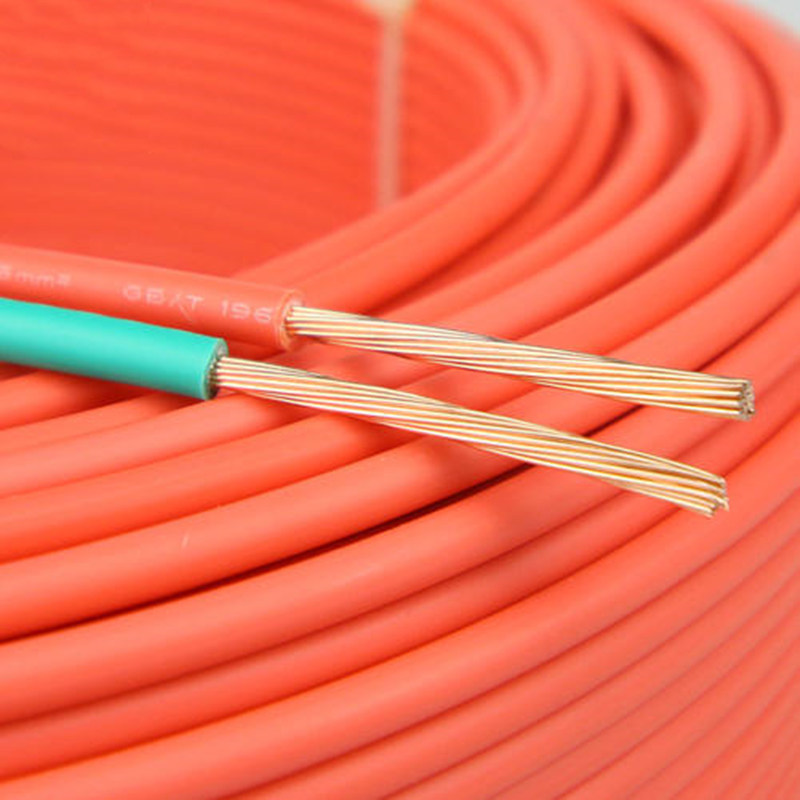

   Red, yellow, blue, green, black, brown, yellow/green, and other colors.

---Sheath Material

   Non-Sheath

---Core Number

    Single core, 1C.

---Voltage Rate (U₀/U)

    0.5-1.0 mm²: 300/500V; 1.5-240 mm²: 450/750V.

---Working Temperature

   -15℃～+90℃.

---Minimum Bending Radius

   6 x Overall Diameter.

---Production Standard

   JB/T 10491, GB/T 19666, IEC 60227, BS EN 50525-3-41, VDE 0282

---Product Packing

   100 meters each roll, reel, plastic reel, wooden pallet, wooden drum, or others.

---Product MOQ

   0.5-1.0 mm²: ≥10000 meters, 1.5-240 mm²: ≥5000 meters.

---Production Delivery

   Within 3-5 working days as soon as we received the deposit.

REMARK

---The above information is for reference only, please refer to the exact technical parameters according to the actual product.

---The product can have flame retardant and fire-resistant properties, the working temperature can be 105-150 degree, the production process, materials and production standard maybe has a few of different.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
