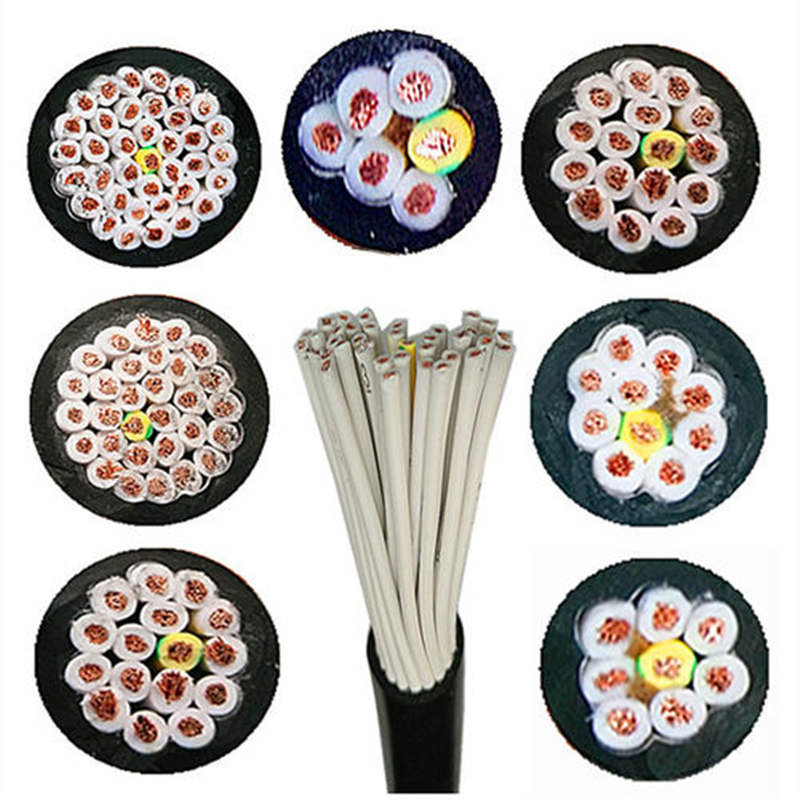

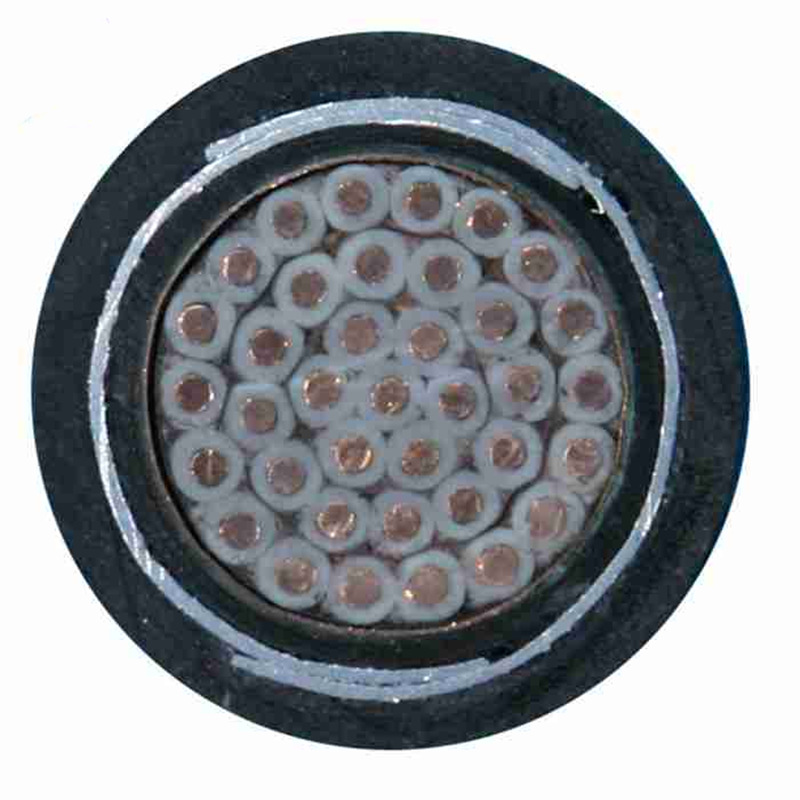

KVV Plastic Insulated KVV Control Cables, copper conductor, copper wire, tinner copper, copper tape, aluminum foil shielded/screen, steel tape or steel wire armored, PVC or PE or LSZH sheath.
Brand:
ElectricaltechItem NO.:
XTD-KVV-01Order(MOQ):
5000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.53Price:
$0.5/0.52 per meterProduct Origin:
Hubei Province, China.Color:
Black white grey or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 7-10 working days as soon as we rWeight：
120 KG/KM
KVV Plastic Insulated Control Cables
MAIN KEYWORDS
KVV,
KVVR, KVV22, KVVP, KVVP2, KVVP2-22, KYJV,
KYJY, CY control cable, YY control cable,
SY control cable, LiYY control cable, LiYCY control cable, PVC insulated control cable.
APPLICATION CHARACTERISTICS
KVV control cables encompass a large family of cables manufactured to various British, European and international Standards. According to the Chinese Standard of GB/T 9330-2008, control cable main includes KVV, KVVR, KVV22, KVVP, KVVP2, KVVP2-22, KYJV, KYJV22, KYJVP2-22 and other type. According to the international standard of IEC 60227, BS EN 50525, VDE 0250 and others, it includes CY, YY, SY, LiYY, LiYCY, LiHH, LiHCH and other types. For their means and different, please refer the follow information:
PRODUCTS TYPE
Main Type of
Control Cable
Description of Control Cable's Type

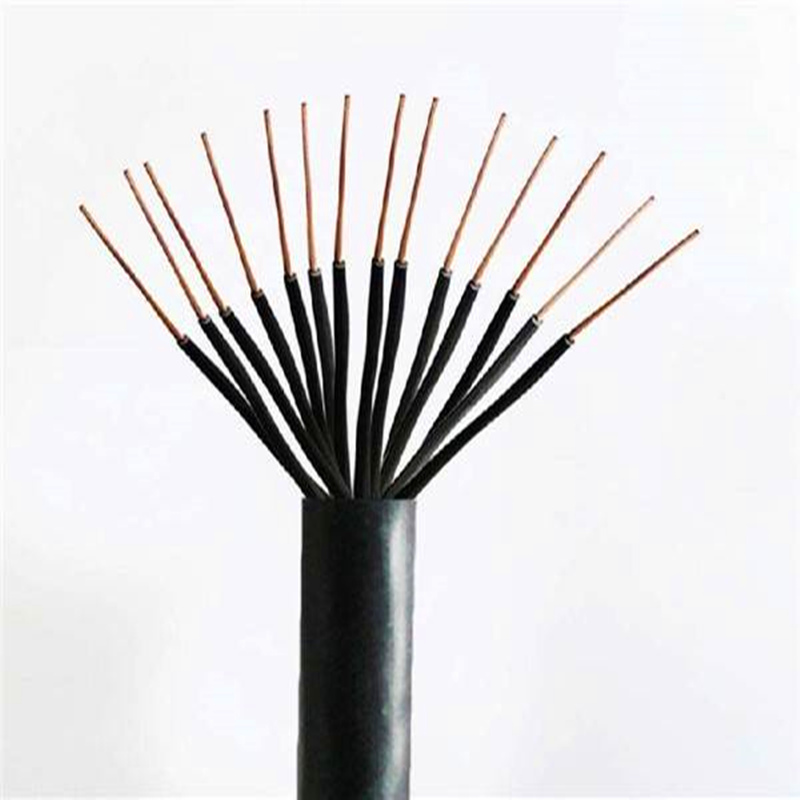

KVV
Copper
conductor PVC insulated PVC sheath control cable
KVVR
Strand
copper conductor PVC insulated PVC sheath control cable
KVVP
Copper
conductor PVC insulated copper wire braid shielded PVC sheath control cable
KVVP2
Copper
conductor PVC insulated copper tape shielded PVC sheath control cable

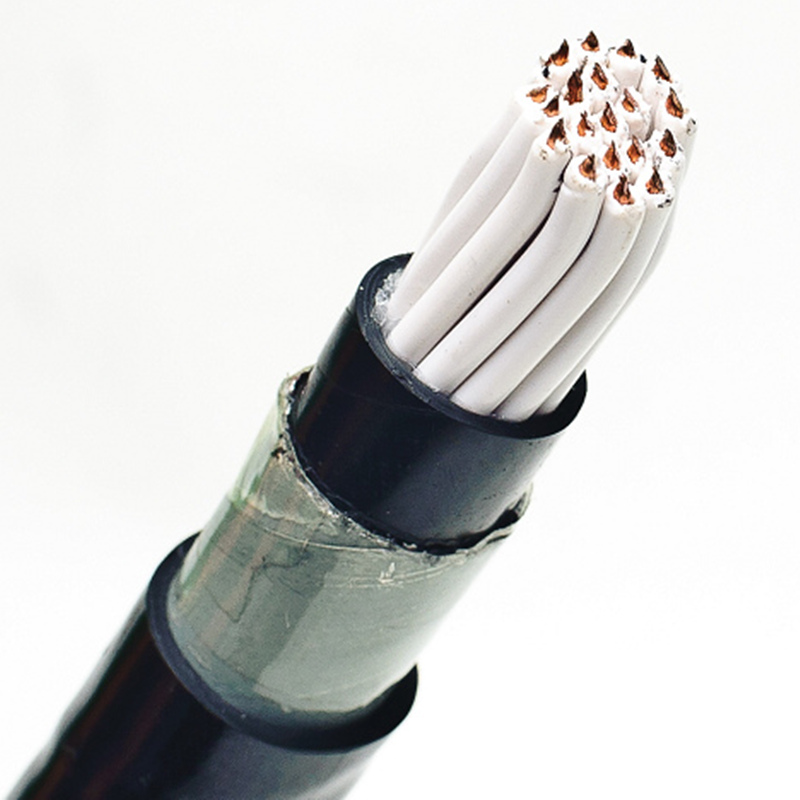

KVV22
Copper
conductor PVC insulated steel tape armored PVC sheath control cable
KVV32
Copper
conductor PVC insulated steel wire armored PVC sheath control cable
KVVP2-22
Copper
conductor PVC insulated copper wire shielded steel tape armored PVC sheath
control cable
KYJV
Copper
conductor XLPE insulated PVC sheath control cable
KYJVR
Strand
copper conductor XLPE insulated PVC sheath control cable
KYJVP
Copper
conductor XLPE insulated copper wire braid shielded PVC sheath control cable
KYJVP2
Copper
conductor XLPE insulated copper tape shielded PVC sheath control cable
KYJV22
Copper
conductor XLPE insulated steel tape armored PVC sheath control cable
KYJV32
Copper
conductor XLPE insulated steel wire armored PVC sheath control cable
KYJVP2-22
Copper
conductor xlpe insulated copper wire shielded steel tape armored PVC sheath
control cable
Type of
Control Cable

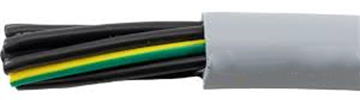

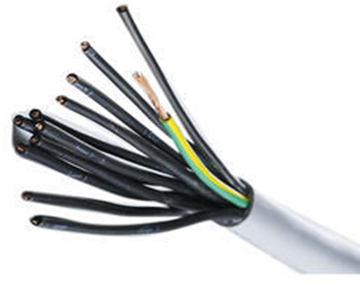

YY control cable
(YSLY)
Versatile unscreened or unshielded cable suitable for most situations where there
is only light mechanical stress.
CY control cable
(YSLCY)
SY control cable
(YSLYSY)
LiYCY
control cable
LiYY
control cable
LiHH
control cable
LiHCH
control cable
Description of Control Cable
Multicore screened flexible cable with Polyethylene Terephthalate (PETP) for electromagnetic interference free-transmission.
Flexible shielded cable with galvanised steel wire braid for additional mechanical protection.
Screened and shielded cable for applications where moderate mechanical stress and electromagnetic screening is required.
Unscreened and unshielded cable for light duty in dry and humid environments.
Unscreened LSZH low capacitance control.
Screened LSZH data transmission cable.
PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, strand class 5, flexible.
---Insulation Material (inner insulation)
Soft PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
7C or above: black insulation and marks white number, maybe has a earth wire of yellow/green.
Remark: we will choose other colors according to the customer request.
---Shielded Material (inner braided)
Pure copper wire, or tinned copper wire
---Screened Material (out cover)
Aluminum foil, or copper tape.
---Inner Sheath (optional)
PVC (polyvinyl chloride)
---Sheath Material (out insulation)
Soft PVC (polyvinyl chloride)
---Sheath Colour
Black, white, or others.
---Core Number
2～61 cores, 2C～61C.
---Voltage Rate (U0/U)
300/500V, 450/750V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed: 8 x Out Diameter.
---Production Standard
GB/T 9330, IEC 60227, BS EN 50266, VDE 0207, VDE 0250, VDE 0295.
---Products Delivery
Within 7-10 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the KVV shielded flexible cable, according
to the practice, the common specification is 0.75～2.5 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
