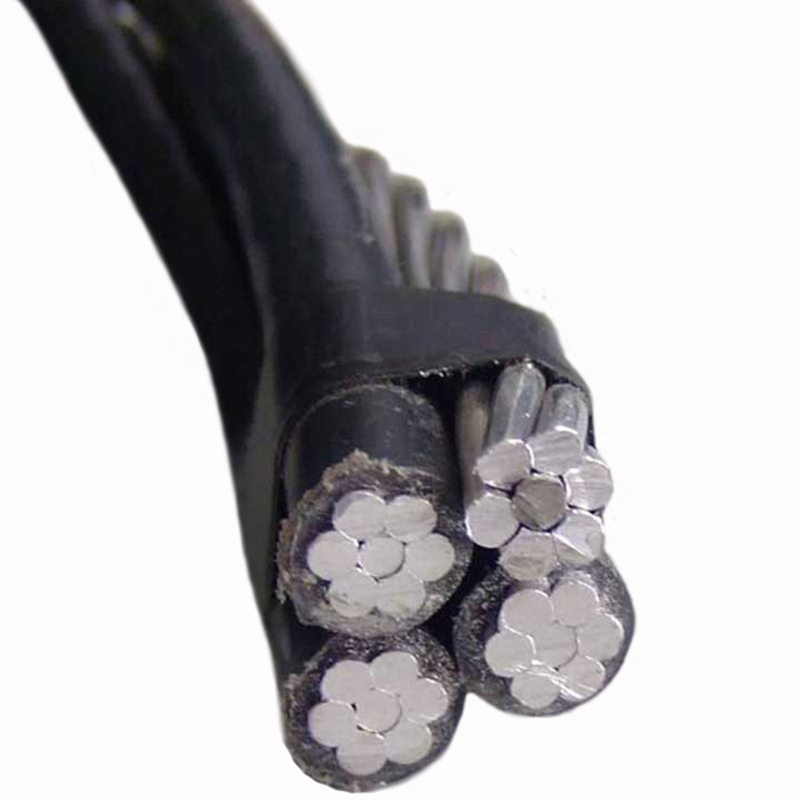

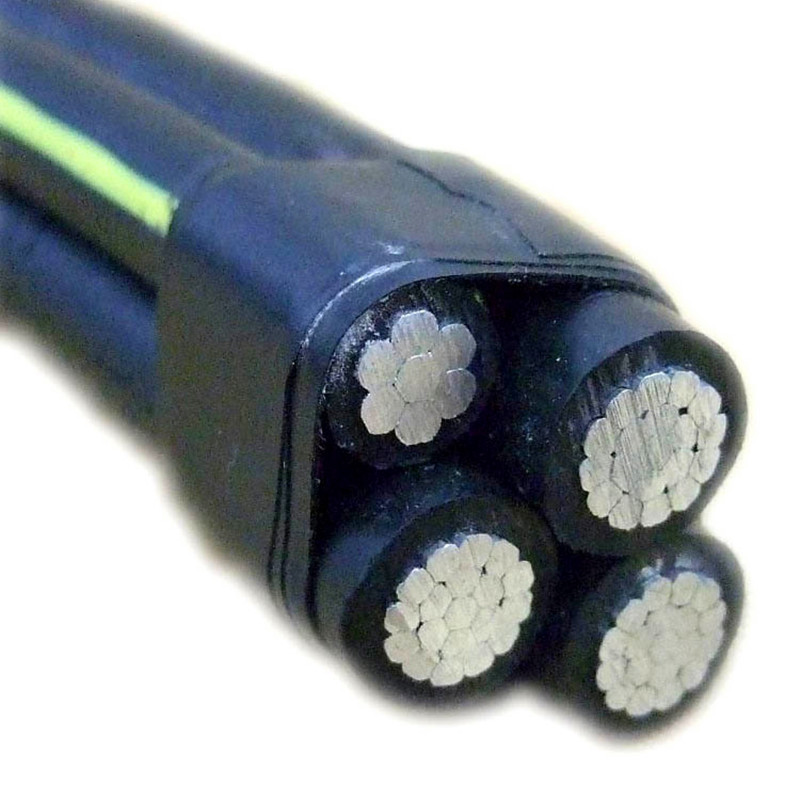

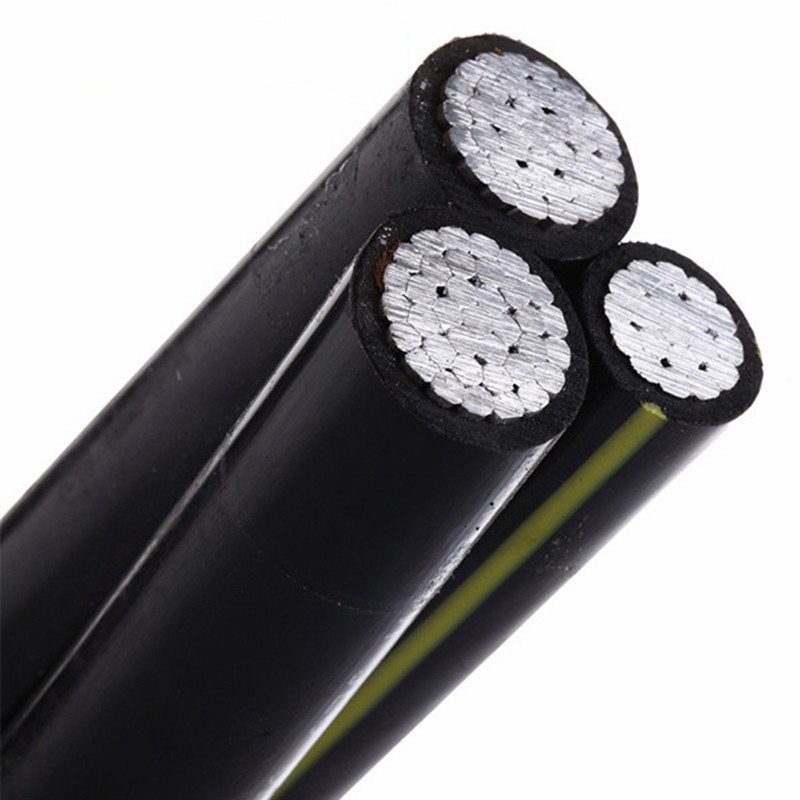

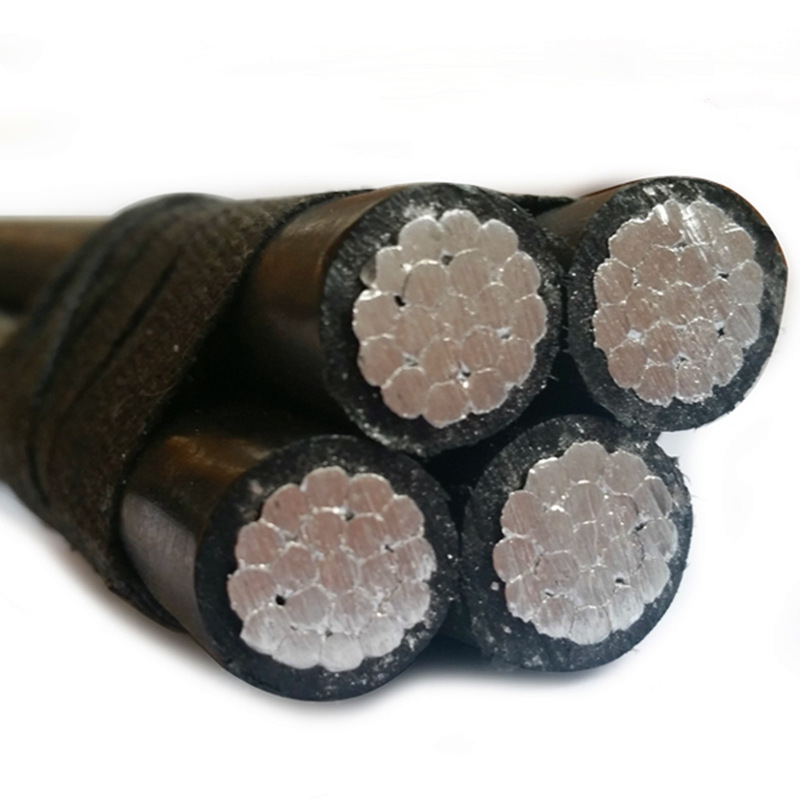

Aerial bundle cable ABC cable

Aerial bundle cable ABC cable

PRODUCTS KEYWORDS

Aerial bundle cable, ABC cable, xlpe insulated ABC cable, LV ABC cable.

PRODUCTION APPLICATION

Electricaltech brand Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional over-head bare conductor distribution system.It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

Electricaltech brand Low Voltage Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.This overhead cable provides reinforced insulation according to IEC 61140 and fulfill therefore Class II according to IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.

PRODUCTION ADVANTAGES

• Relative immunity to short circuits caused by external forces (wind, fallen branches), unless they abrade the insulation.
• Can stand in close proximity to trees/buildings and will not generate sparks if touched.
• Little to no tree trimming necessary
• Simpler installation, as crossbars and insulators are not required.
• Ease of erection and stringing, less labor intensive, less construction resources needed.
• More aesthetically appealing.
• Can be installed in a narrower right-of-way.
• At junction poles, insulating bridging wires are needed to connect non-insulated wires at either side. ABC can dispense with one of these splices.
• Less risk of a neutral-only break from tree or vehicle damage, increasing safety with TNC-s systems.
• Significantly improved safety for lines-persons, particularly when working on live conductors.
• Electricity theft is made harder, and more obvious to detect.
• Less required maintenance and necessary inspections of lines.
• Improved reliability in comparison with both bare conductor overhead systems and underground systems. Insulated conductors prevent accidental contact and supply can be maintained temporarily in the event of a suspension system collapse.

PRODUCTS STRUCTURE

---Conductor Material

   Aluminum wire, aluminum alloy wire.

---Insulation Material

   PVC (polyvinyl chloride), PE (polyethylene) or XLPE (cross-linked polyethylene)

---Sheath Material

   Non-sheath

---Core Number

    2C, 3C, 4C.

---Working Temperature

   -10℃～+70℃.

---Installation Temperature

    0℃ ～+40℃

---Minimum Bending Radius

    20 x Overall Diameter.

---Production Standard

    GB/T 12527-2008, GB/T 14049-2008, IEC 60502, BS 7870, AS/NZS 3560, ASTM B-230, ASTM B-231, SANS 1418.

---Product Packing

    Wooden drum.

---Product MOQ

   10000 meters.

---Production Delivery

   Within 10-20 working days as soon as we received the deposit.

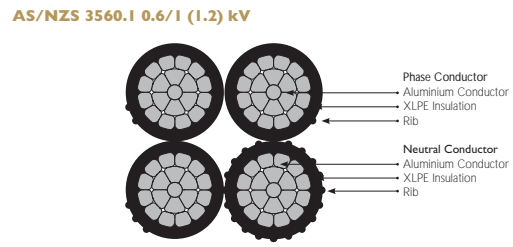

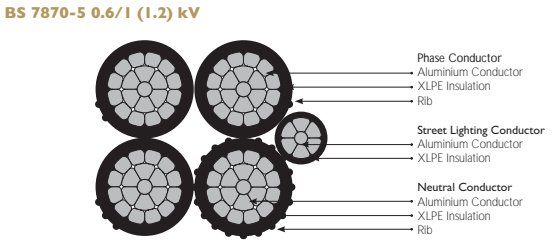

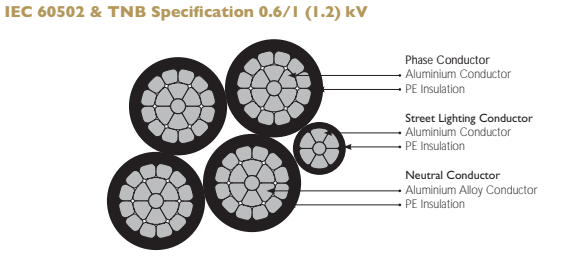

PRODUCTS STRUCTURE

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
