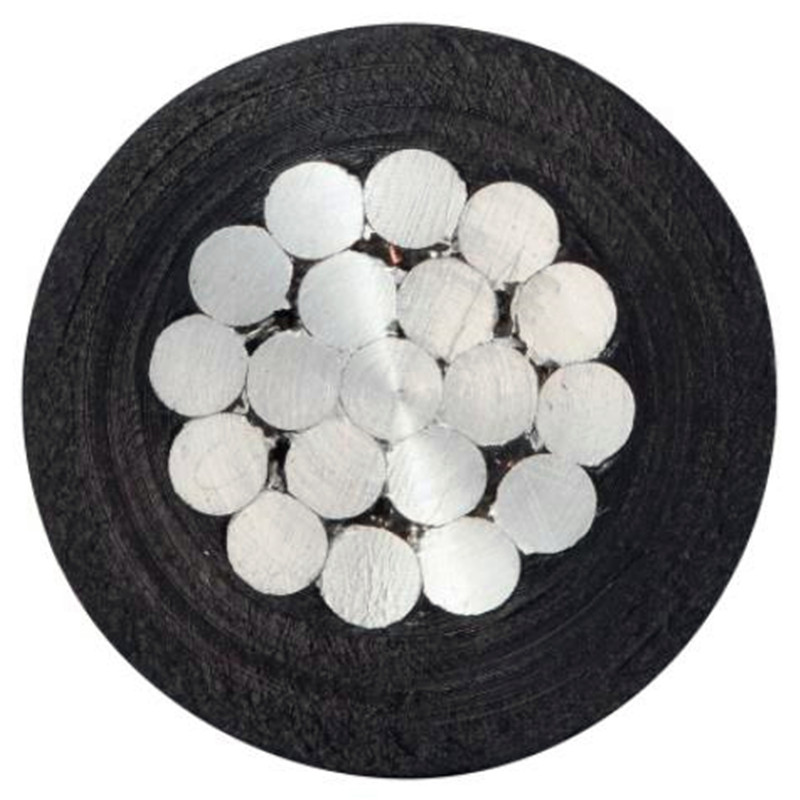

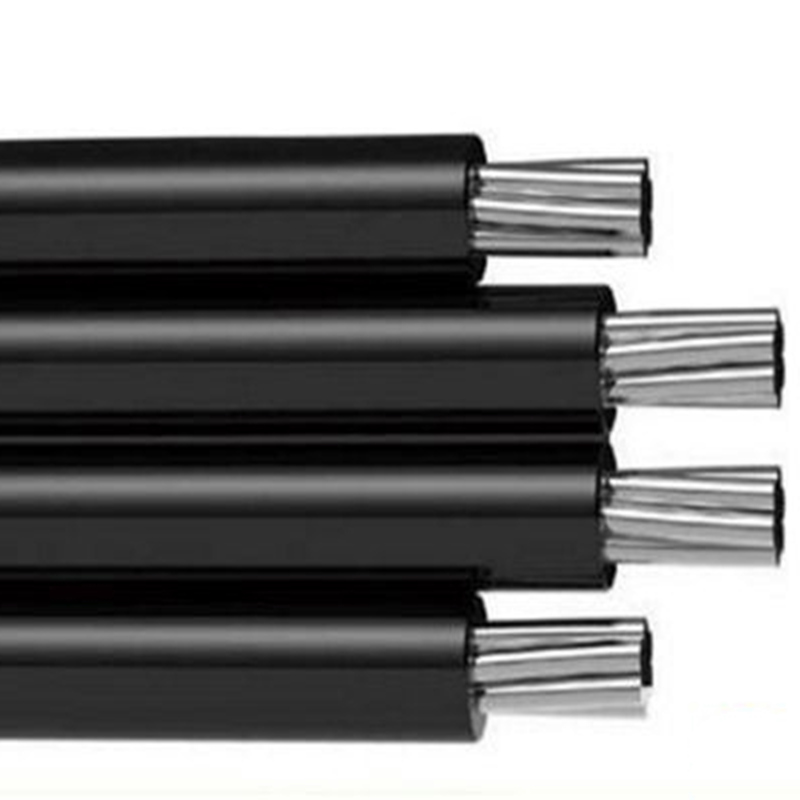

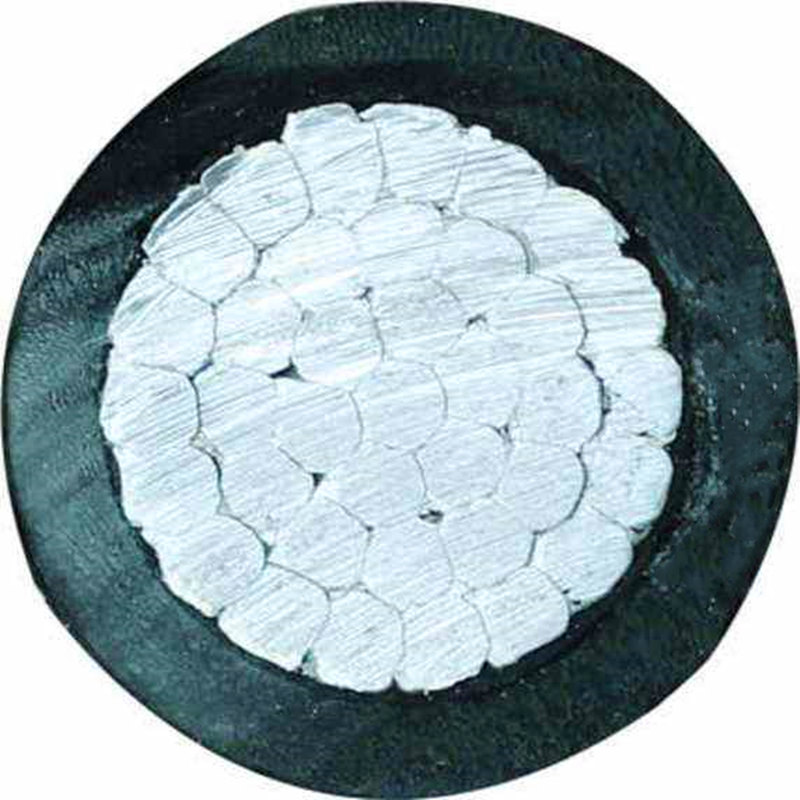

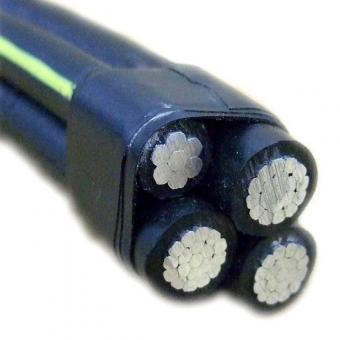

1kV single core JKLV aluminum conductor PVC Insulated Aerial Cable, it applies to electrical overhead power transmission and distribution lines with AC rated voltage U0/U up to and including 1kV.
Brand:
ElectricaltechItem NO.:
XTD--Aerial-01Order(MOQ):
10000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.088Price:
$0.068/0.085Product Origin:
Hubei, China.Color:
Black or othersShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 7-10 working days as soon as we rWeight：
95 KG/KM1kV single core JKLV aluminum conductor PVC insulated Aerial Cables
PRODUCTS KEYWORDS
JKLV cable, ABC cable, PVC insulated aerial cable; aluminum conductor PVC insulated aerial cable.
APPLICATION CHARACTERISTICS
1kV single core JKLV aluminum conductor PVC Insulated Aerial Bundled Cable, it applies to electrical overhead power transmission and distribution lines with AC rated voltage U0/U up to and including 1kV.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed aluminum wire, strand, class 2.
---Insulation Material
PVC (Polyvinyl chloride)
---Insulation Color
Black, or other colors.
---Sheath Material
Non-Sheath
---Core Number
Single core, 1C.
---Voltage Rate (U0/U)
1kV.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
6 x Overall Diameter.
---Production Standard
GB/T 12527-2008, GB/T1179-2008, IEC 60502
---Product Packing
Wooden drum, or others.
---Product MOQ
10000 meters.
---Production Delivery
Within 7-10 working days as soon as we received the deposit.
PRODUCTS SPECIFICATION
|
Cross Section Area (mm2) |
Aluminum Conductor Structure (pcs/mm) |
Insulated Material |
Insulated Thickness (mm) |
Refer Max. Out Diameter (mm) |
Refer Net Weight (kg/km) |
Max. DC Conductor Resistance at 20℃ (Ω/km) |
Min. Breaking strength of cables (N) |
Reference Current Carrying at 25℃ (A) |
|
1 x 10 |
7/1.35 |
PVC |
1.0 |
5.9 |
42 |
3.98 |
1650 |
42 |
|
1 x 16 |
7/1.70 |
PVC |
1.0 |
7.3 |
65 |
1.91 |
2517 |
56 |
|
1 x 25 |
7/2.14 |
PVC |
1.2 |
8.5 |
94 |
1.20 |
3762 |
74 |
|
1 x 35 |
7/2.50 |
PVC |
1.2 |
9.9 |
131 |
0.868 |
5177 |
90 |
|
1 x 50 |
19/1.78 |
PVC |
1.4 |
11.3 |
176 |
0.641 |
7011 |
109 |
|
1 x 70 |
19/2.14 |
PVC |
1.4 |
12.9 |
235 |
0.443 |
10354 |
137 |
|
1 x 95 |
19/2.50 |
PVC |
1.6 |
15.0 |
322 |
0.320 |
13727 |
167 |
|
1 x 120 |
37/2.04 |
PVC |
1.6 |
16.4 |
397 |
0.253 |
17339 |
194 |
|
1 x 150 |
37/2.25 |
PVC |
1.8 |
18.4 |
496 |
0.206 |
21033 |
220 |
|
1 x 185 |
37/2.50 |
PVC |
2.0 |
20.4 |
611 |
0.164 |
26732 |
253 |
|
1 x 240 |
48/2.50 |
PVC |
2.2 |
23.0 |
787 |
0.125 |
34679 |
298 |
REMARK
---The above information is only for you reference, the formal data, please refer the actual product testing.
---Highest working temperature of cable in case of short circuit, the longest lasting time is not over 5 seconds: PVC insulated ≤160℃, XLPE insulation ≤250℃.
---When the cable is applied to a dc system, the rated voltage of the system shall not be greater than 1.5 times the cable rating; the operating voltage of the system shall not be greater than 1.1 times the rated voltage of the system.
---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
