NYY VV power cables, 0.6/1kV, CU/PVC/PVC, copper wire, PVC insulation, PVC sheath, meet to GB/T 12706, IEC 60502. The NYY VV power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Brand:
ElectricaltechItem NO.:
XTD-VV-01Order(MOQ):
500 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 5.88Price:
$5.68/5.78 per meterProduct Origin:
Hubei Province, China.Color:
Black white grey or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time:
Within 7-10 working days as soon as we rWeight:
1280 KG/KMNYY PVC Insulated PVC Sheathed Un-armored VV Power Cables
MAIN KEYWORDS
VV, NYY, NAYY, NYY-J, NYY-O, E-YY, CU/PVC/PVC power cable, PVC 0.6/1kV power cable.
APPLICATION CHARACTERISTICS
NYY single core or multi-cores un-armored VV power cable, it applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1kV. For outdoor and indoor installation in damp and wet locations, lay directly in the ground (when well protect in ducts, in trenches and in steel support brackets).

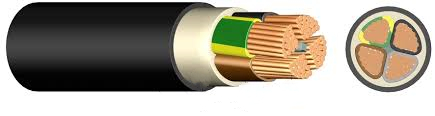

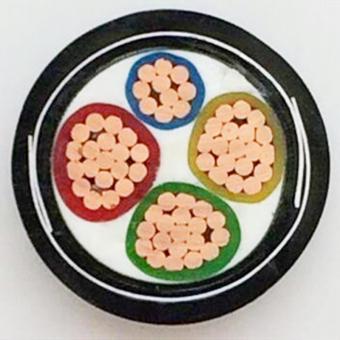

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid class 1, or strand class 2.
---Insulation Material (inner insulation)
PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Filler Material
Fiberglass tape, or PVC (Polyvinyl chloride).
---Inner Sheath (Cabling Material)
Non-woven fabrics, or PVC (Polyvinyl chloride)
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black, or others.
---Core Number
2~5 cores, 2C~5C.
---Voltage Rate(U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃~+70℃.
---Minimum Bending Radius
Fixed: 12 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS EN/IEC60502, BS 7870, DIN VDE 0276.
---Products Delivery
Within 7-10 working days as soon as we received the deposit.
REMARK
---The above information is only for you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process and insulation materials maybe has a few of different.
---For the NYY VV power cable, according to the practice, the common specification is 25~300 mm2.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
